1800mm Wide Format Sublimation Printer with Two I3200 Print Head

Product Description

SUBLI-1802TX large format sublimation printer max printing width up to 1.8m, ideal for Garments, Apparel, Soft Signage, sportswear, Flag, Tent, Blanket, Curtain, etc Polyester-based Fabric.

Feature of Sublistar SUBLI-1802TX:

SUBLI-1802TX is a Dye Sublimation Printer that uses piezoelectric Inject printing technology. It ensures bulk printing with high-quality and high-speed.

1.SUBLI-1802TX is a Dye Sublimation Printer that uses piezoelectric Inject printing technology. It ensures bulk printing with high-quality and high-speed.
2.Equipped with advanced intelligent auto printhead cleaning and moisturizing device,which can pump ink fluently.
3.Convenient and fast, the printing media is quickly stored, equipped with automatic paper measurement and anti-rubbing function.
4.With help of heat transfer machine,pictures can be transferred to many materials, such as polyester,chiffon, silk, and flag banner.

Technical Specifications:

Model		SUBLI-1802TX(DX5)	SUBLI-1802TX(I3200)
Print Head		Dual DX5 Print Heads	Dual 13200 Print Heads
Printing Technology		Piezoelectric Inkjet
Acceptable Media	Width	71.6 in.(1820 mm)
	Thickness	Maximum 39 mil(1 mm)
	Weight	132.2 lb.(60kg)
Printing Width		70.8 in.(1800 mm)
Ink Cartridges	Type	Dye Sublimation Ink
	Capacity	44 CISS (220ml ink cartridge with 1.5L ink tank) 66 CISS (6 color), 8*8 CISS (8 color) optional
	Color	4 colors (Cyan, Magenta, Yellow, Black) 6 colors, 8 colors optional
Printing Resolution		Maximum 1440 dpi	Maximum 3660 dpi
Printing Speed		4pass(720x720dpi): 333 sqft (31 sqm/h)	3pass(360x1800dpi):590sqft (55 sqm/h)
		6pass(720x1080dpi): 225 sqft (21 sqm/h)	4pass(720x1200dpi): 429 sqft (40 sqm/h)
		8pass(720x1440dpi): 182 sqft (17 sqm/h)	6pass(720x1800dpi): 290sqft (27 sqm/h)
Media Heating System		Intergrated post heater & Infrared Dryer & Fan system
Interface		USB 2.0	LAN
Power Supply		AC220V±10%,50/60 HZ
Dimensions(with stand)		125(W)x38(D)x55(H) in. (3213(W)x970(D)x1388(H) mm )
Weight(with stand)		882 lb. (400 kg)
Package Dimensions		Entirety Packing: 133(W)x45(D)x62(H) in. (3380(W)x1150(D)x1610(H) mm) Split Packing: 132(W)x40(D)x40(H)h.(3360(W)x1020(D)x1020(H) mm)
Package Weight		Entirety Packing :1102.5 to. (500 kg) Split Packing: 1058.4 ib. (480kg)
Environment	Power on	Temperature: 59ºF to 90ºF [15ºC to 32ºC] (68 ºF[20ºC] / Humidity: 35 to 80% (no condensation)
Environment	Power off	Temperature: 41 ºF to 104 ºF [5ºC to 40 ºC]/ Humidity: 20 to 80% (no condensation)
Accessories		USB cable, media clamp, manual, drain bottle, ink cartridges, RIP software, etc.

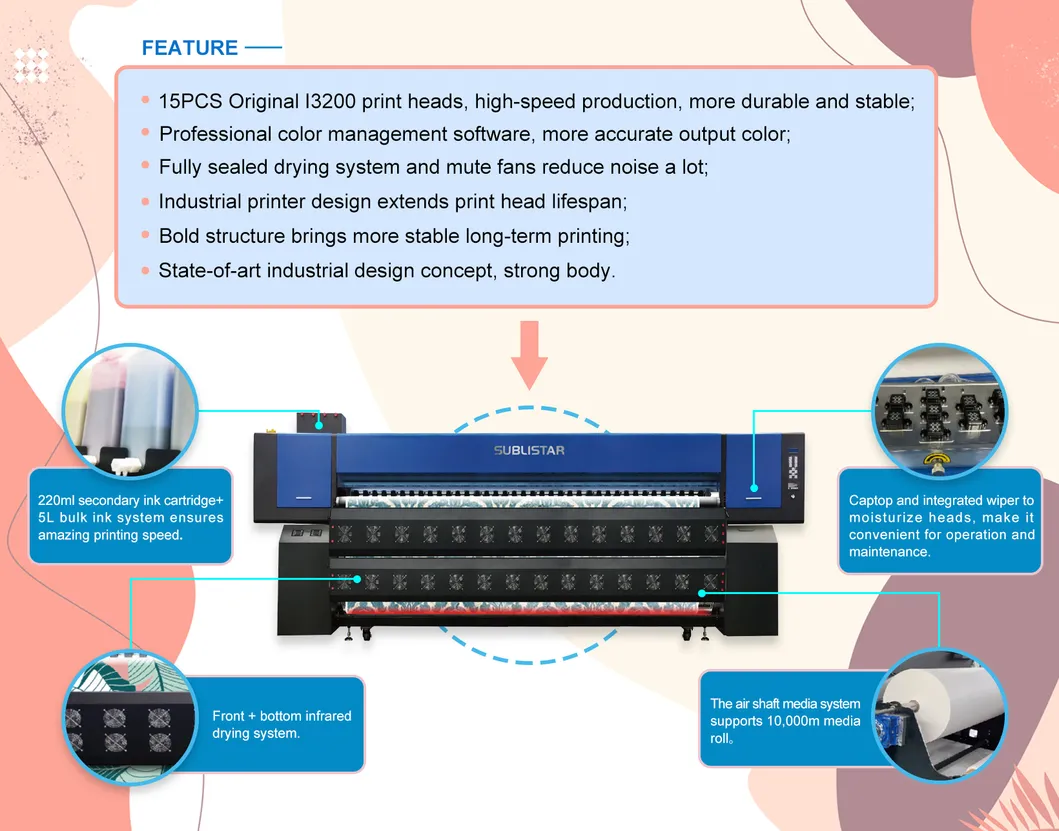

SUBLI-1802TX Machine Details

Equipped with advanced electrical board system, standard 2pcs I3200 print heads, At its heart is a PrecisionCore MicroTFP(Thin Film Piezo)chip, which has two rows of 400 nozzles, 800 in total, at a rate of 600 nozzles per inch on a 33.8mm line.

1.Japanese THK Mute Guide Rail

Using Japanese THK mute linear guide rail, the movement is more stable and the service life is longer.

2.Large Capacity Ink Reservoirs

Four units of large capacity ink reservoirs provide ink independently and continuously.

3.Intelligent Air-heat Dryer

Three stage heating system including pre-heater, print heater, and rear heater and platform vacuum system with adjustable power.
