H3370 Kyocera Best Solution 120mm Thickness Rigid and Soft Materials

Product Description

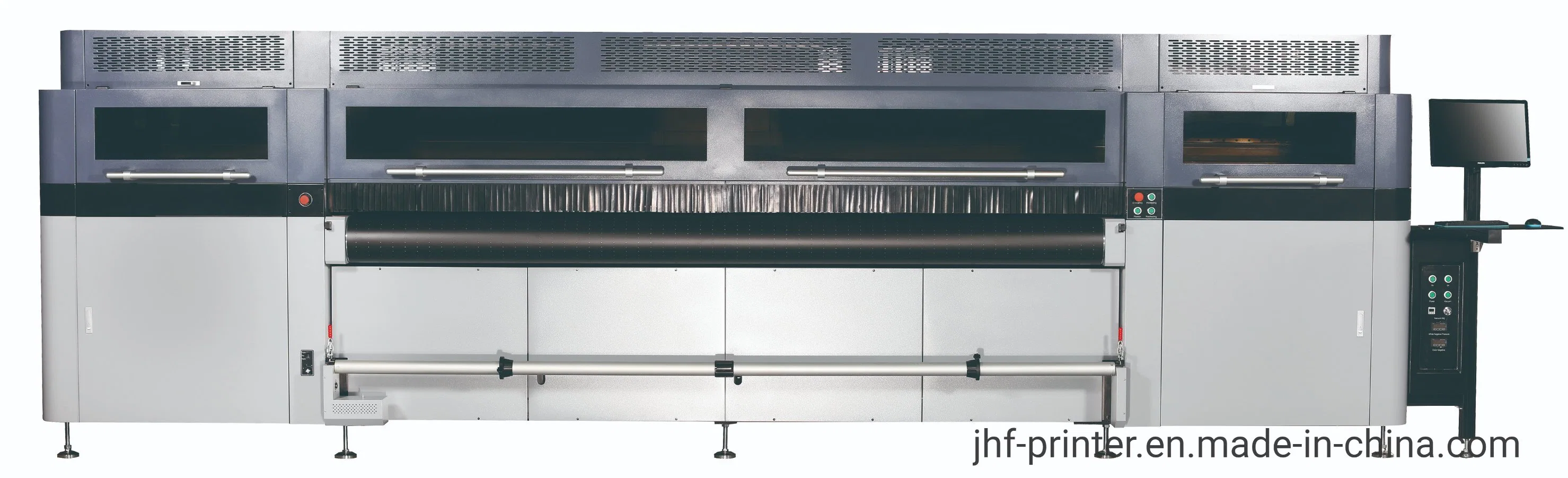

JHF H3370 Industrial Hybrid Printer Kyocrea Printhead

H3370 Kyocera Best Solution 120mm Thickness Rigid and Soft Materials

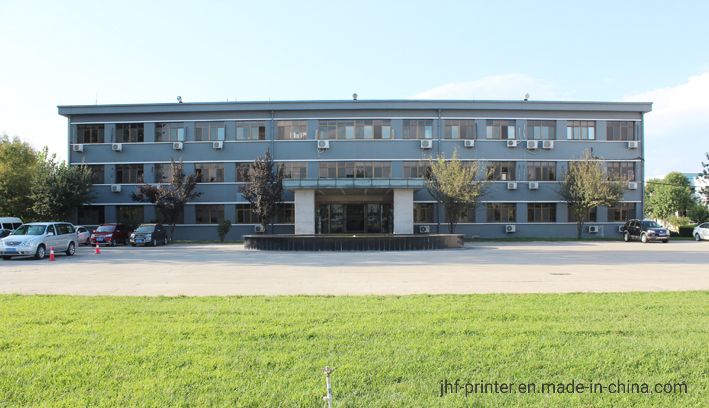

With a pedigree of over twenty years' experience of having built inkjet machines, over 15000 installations worldwide and over 80% market share in China in the industrial grade UV segment, Beijing JHF technology Co. Ltd manufactures these systems in a state of the art 56,000 sqm factory located in Beijing using industrial grade components sourced from Germany, Netherlands, Japan ..... .
These machines are designed to work 24 x 7 consistently delivering high quality with high productivity.

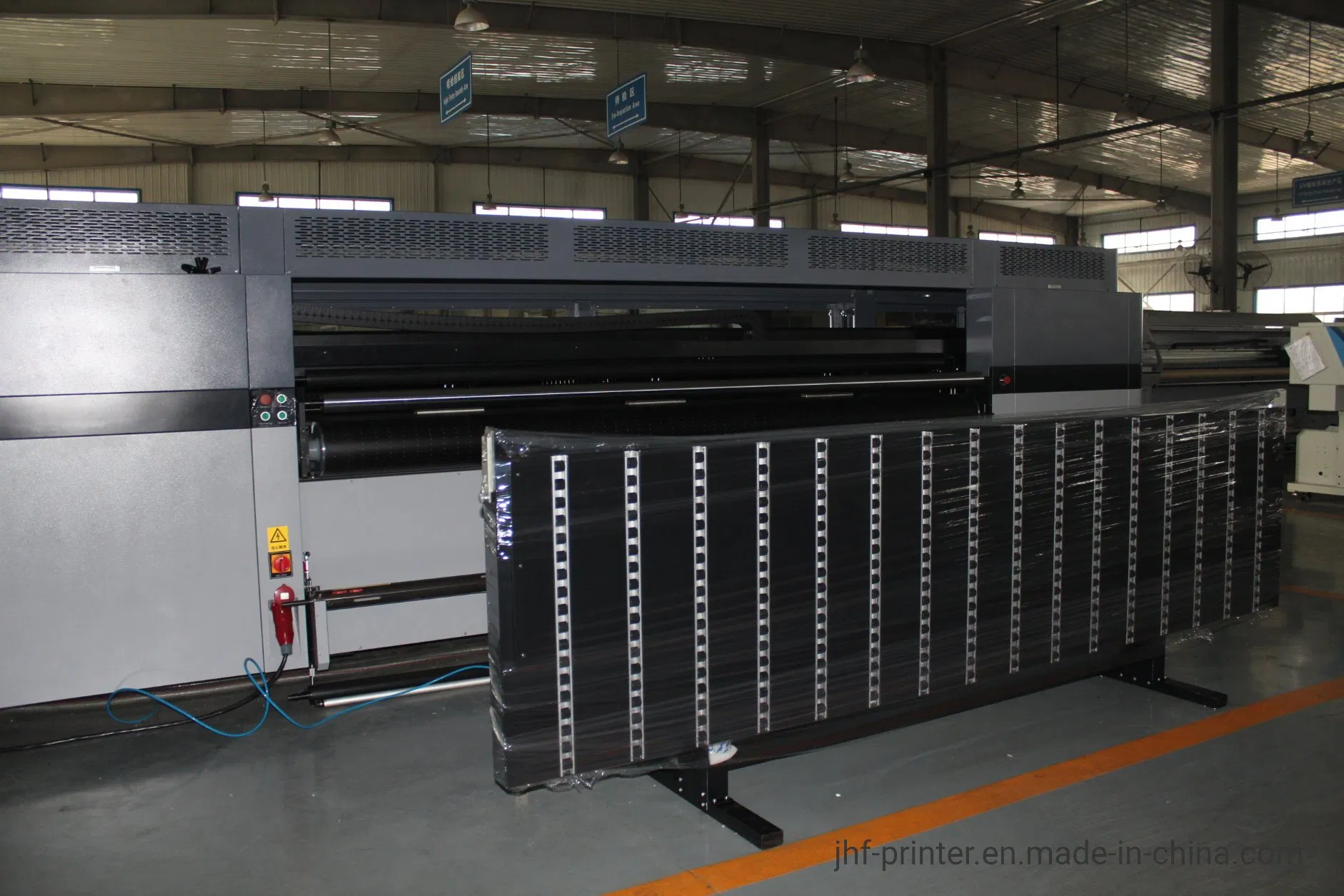

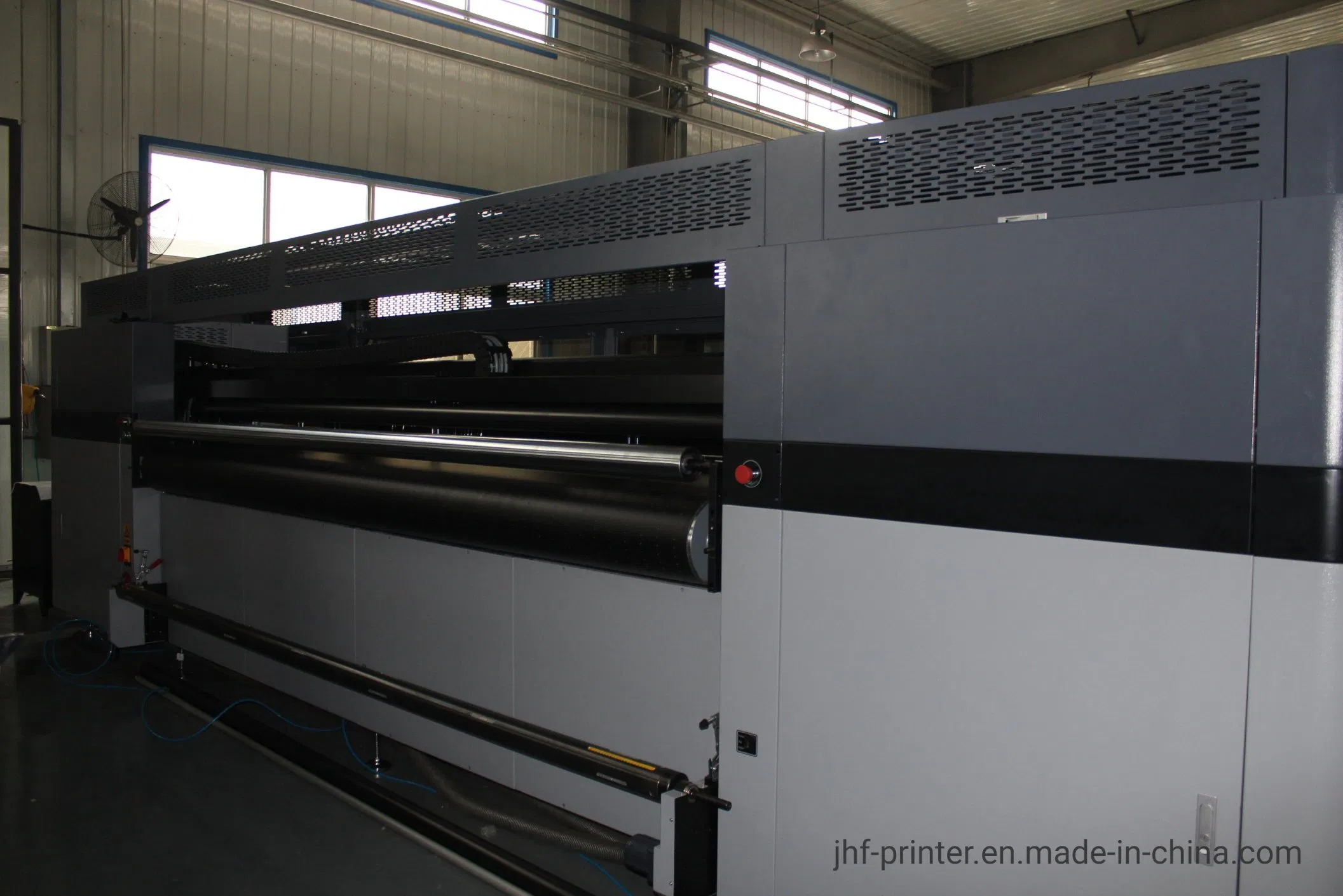

Industrial Flatbed and Roll to Roll Hybrid UV Printer Specification

Printhead	Kyocrea (6+1)		RIP	Caldera
Max Width	3200mm		Data Interface	PCIE
Ink type	6 colors UV ink		Machine size	6000mm1410mm1865mm
Printing Mode	High Speed Mode	300*1800dpi 120m²/h	Adsorption Platform	Constant pressure adsorption control technology
	Production Mode	600*1200dpi 90m²/h
	Fine Mode	600*1800dpi 60m²/h
Negative Pressure System	Electric negative pressure system		Drying Method	Honle Lamp
Print Material	Soft & Rigid Material: glass,wood,bamboo,ceramic tile, organic glass plate,metal plate, leather cloth, acrylic board, PVC board, reflective film, canvas, rubber, crystal, carpet, marble, corrugated board banner, etc.		Machine power	AC 380V / 35A
Media Thickness	≤120mm		Machine Weight	2170KG
Motor system	Linear Motor

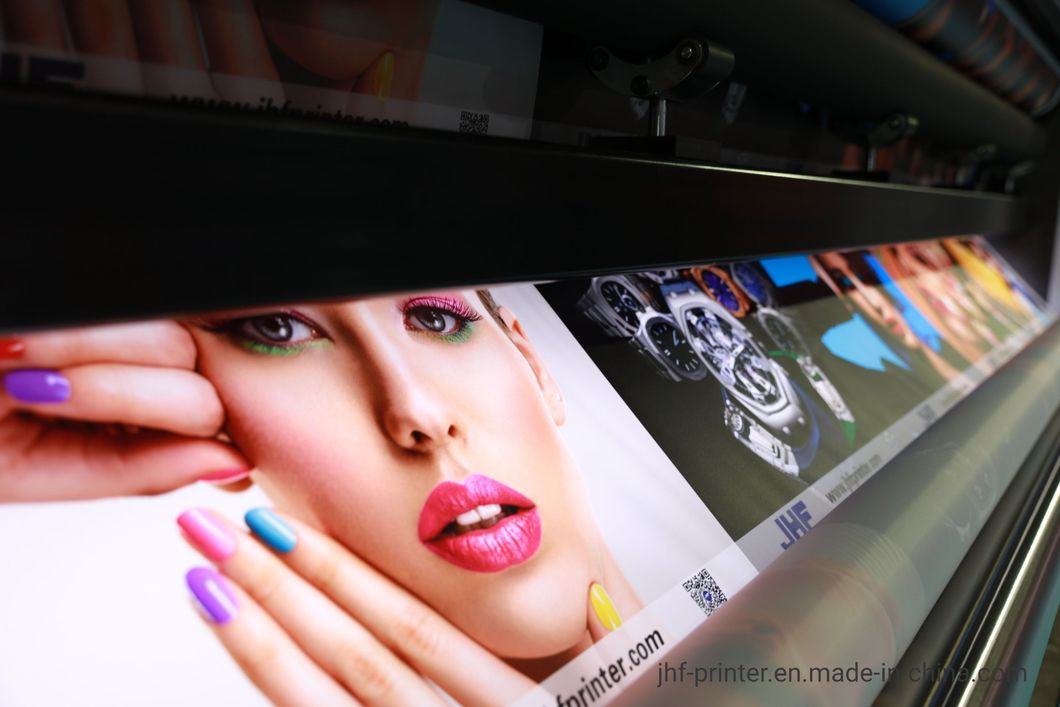

Print Soft and Rigid Materials

For printing of high-quality flat and roll-to-roll materials, glass, wood, ceramic tile, metal plate, leather cloth.

High Precision

- High precision metal raster, high performance AC servo motor, and high precision closed loop control, ensures precise movement of the carriage.
- High precision of electric negative pressure system, (resolution 0.01KPa), reduces the use of compressed air for more than 95%, reduces the starting frequency, improves the service life of the air compressor.

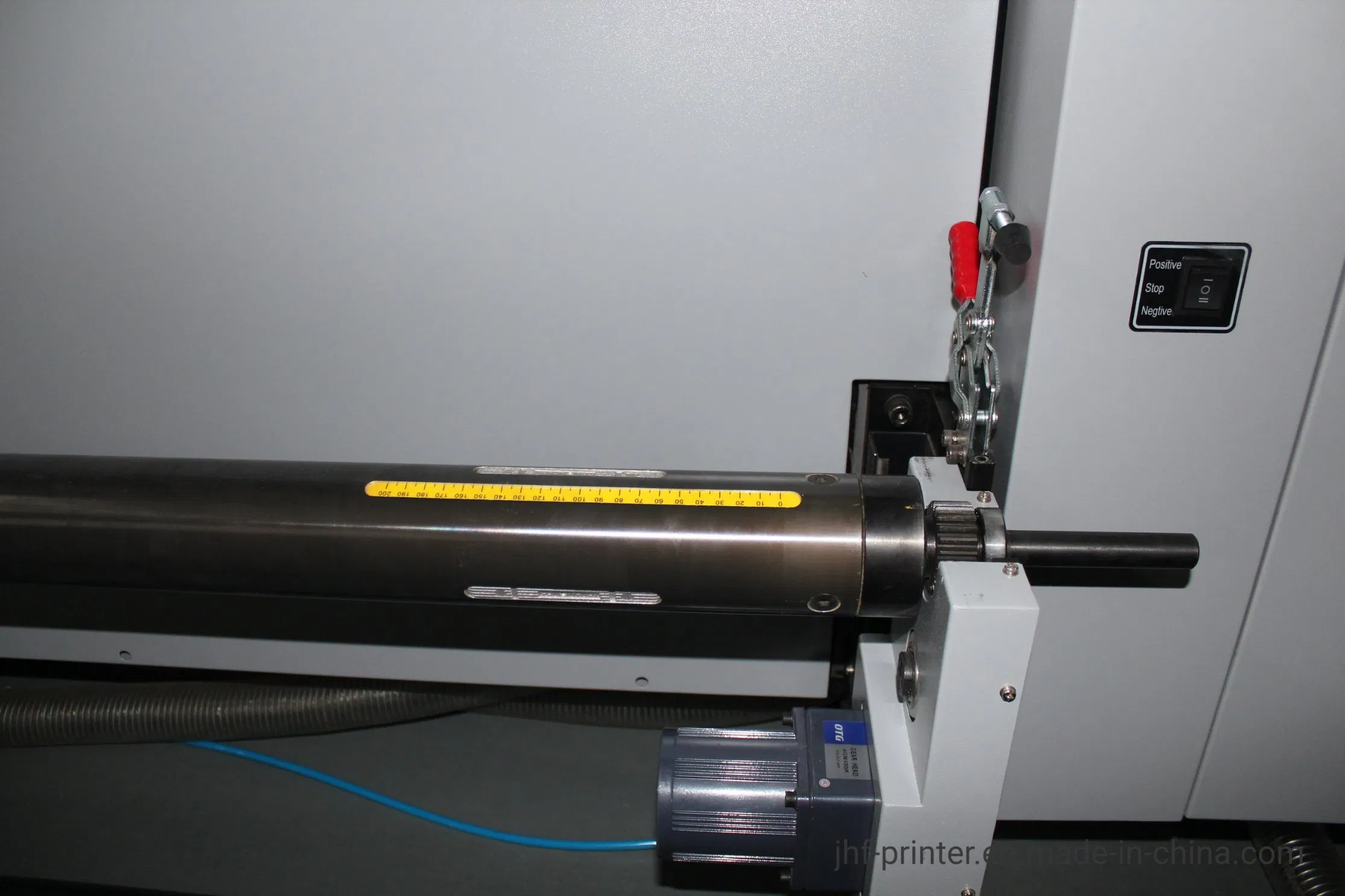

- Using a constant tension control on roll material printing, to ensure feeding system stable, reliable and stepping accuracy.
- Using double feed pressing roller and the printing plate anchor device on sheet material printing, to ensure the reliable positioning of printing process and seamless vacuum adsorption.

Automatic Adjusting and Cleaning

- Nozzle cleaning function, can easily complete to clean nozzle by flush fluid without removing the nozzle.

- Sub-ink tanks constant temperature control, ensure perfect and consistent ink features in different environment.

- Ink power-off protection function, avoid ink leakage after sudden blockout.

- The ink system adopts premium high precision filter, which provides the clean and pure ink for print head.

- Automatic height measurement function, regardless of changes in material thickness, ensure perfect and consistent height gap between the nozzle and material.

Multifunctional Control

- Using multifunctional carriage control technology, to ensure the operation safely, and conveniently.
- Integrated double switch anti-collision technology, protect machine and operation.
- Complete inking system, ensure the printing is clean and safe.
- The platform adopts constant pressure adsorption control technology, preventing the material jitter effectively.
- The world's premium chain solutions, reduce the cable motion fault to zero.

Application

Sheet material and Roll material

JHF Technology Group Co., Ltd. (JHF) has been the leading equipment manufacturer in the global inkjet printing industry for decades and a pioneer in UV digital inkjet printing.

The company develops, manufactures and markets high quality inkjet printing equipment for advertising and industrial printing. Since its inception, the company has been committed to providing customers with high-quality digital printing solutions, putting the interests of its customers first, enabling them to produce higher quality and more economical products and to open up new business opportunities.
