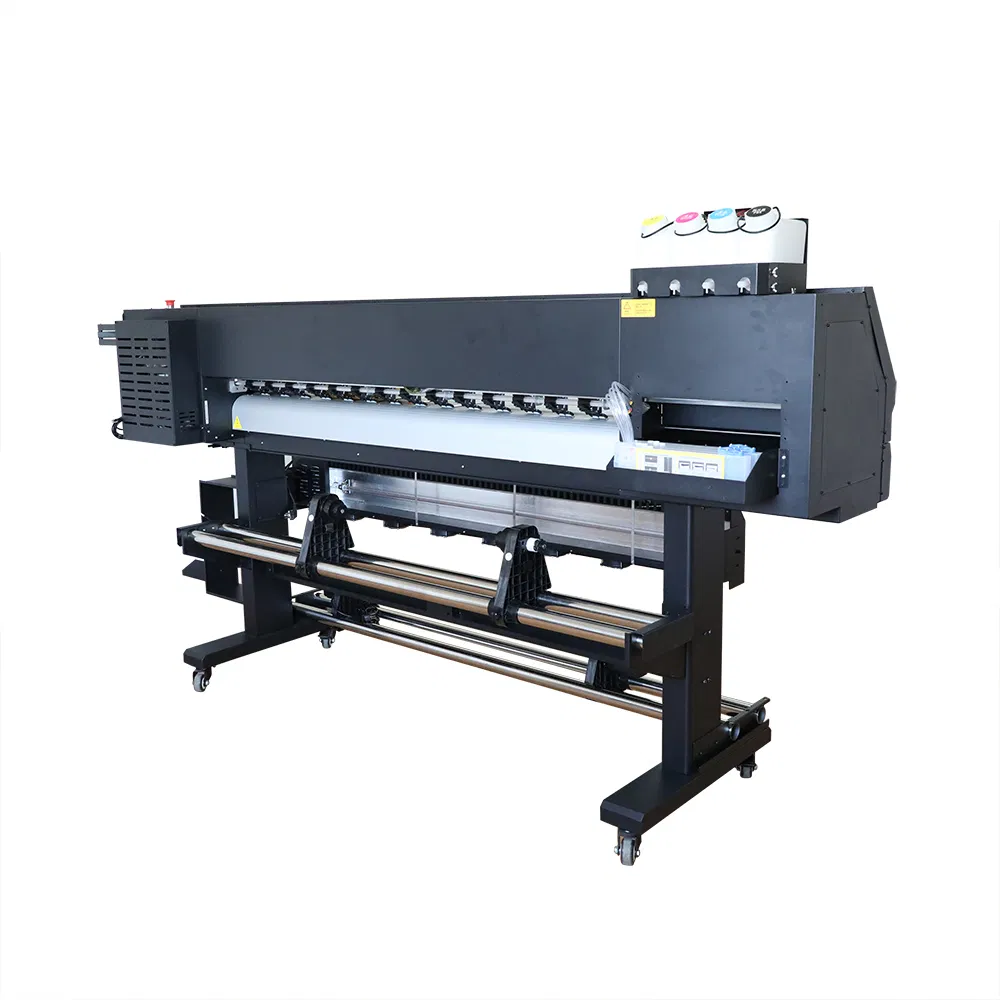

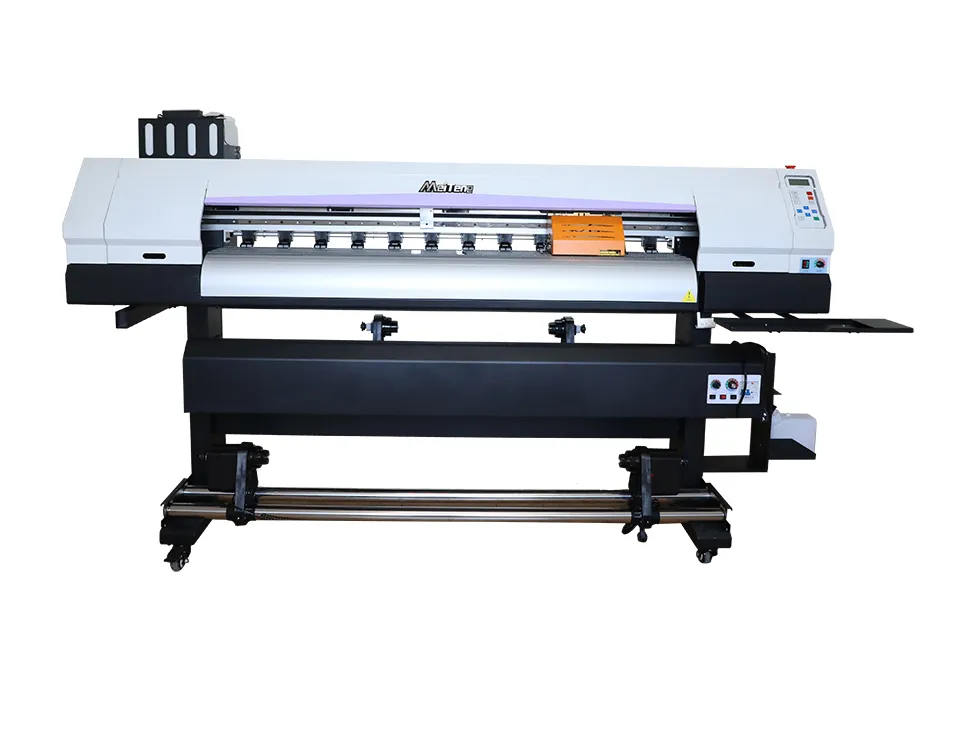

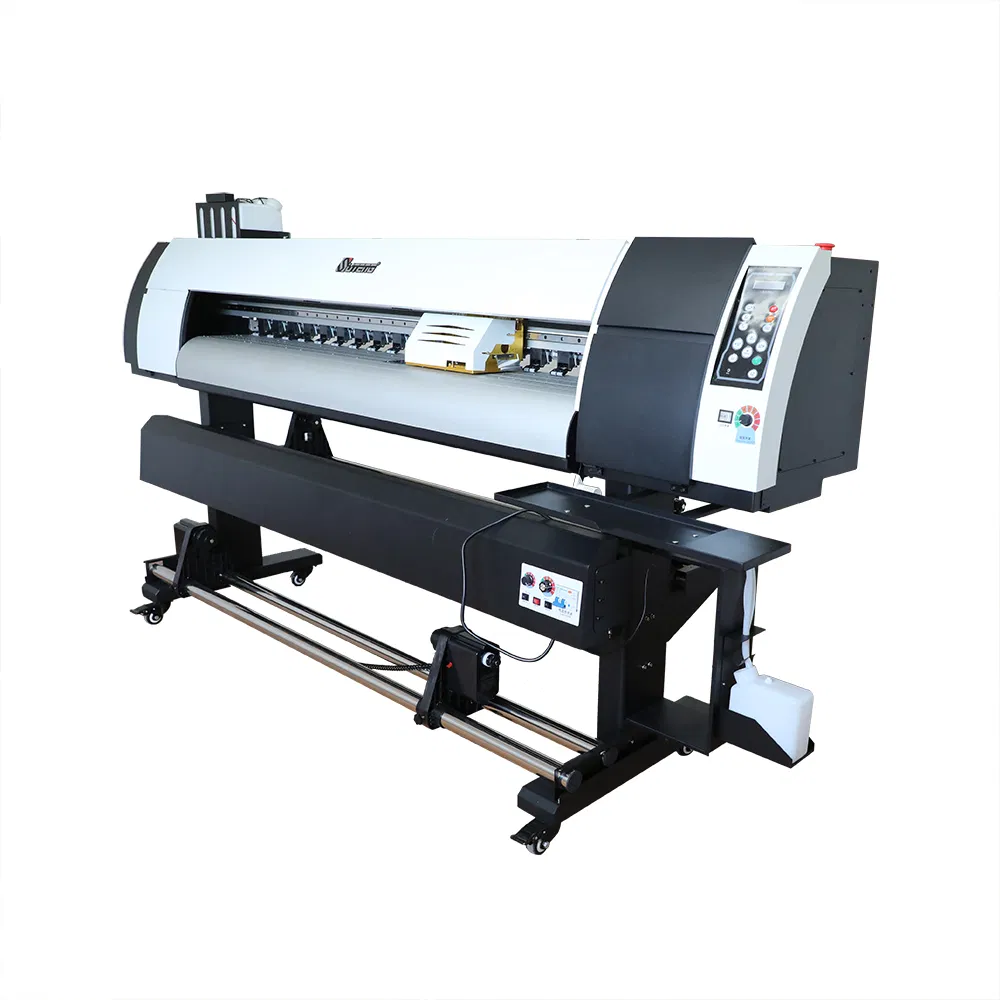

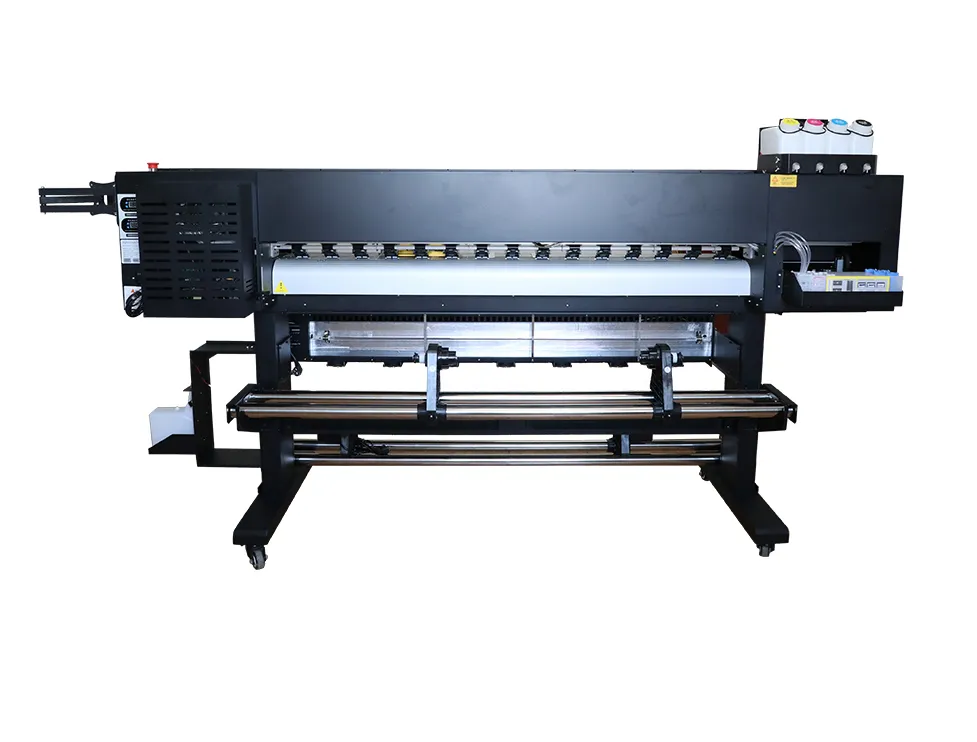

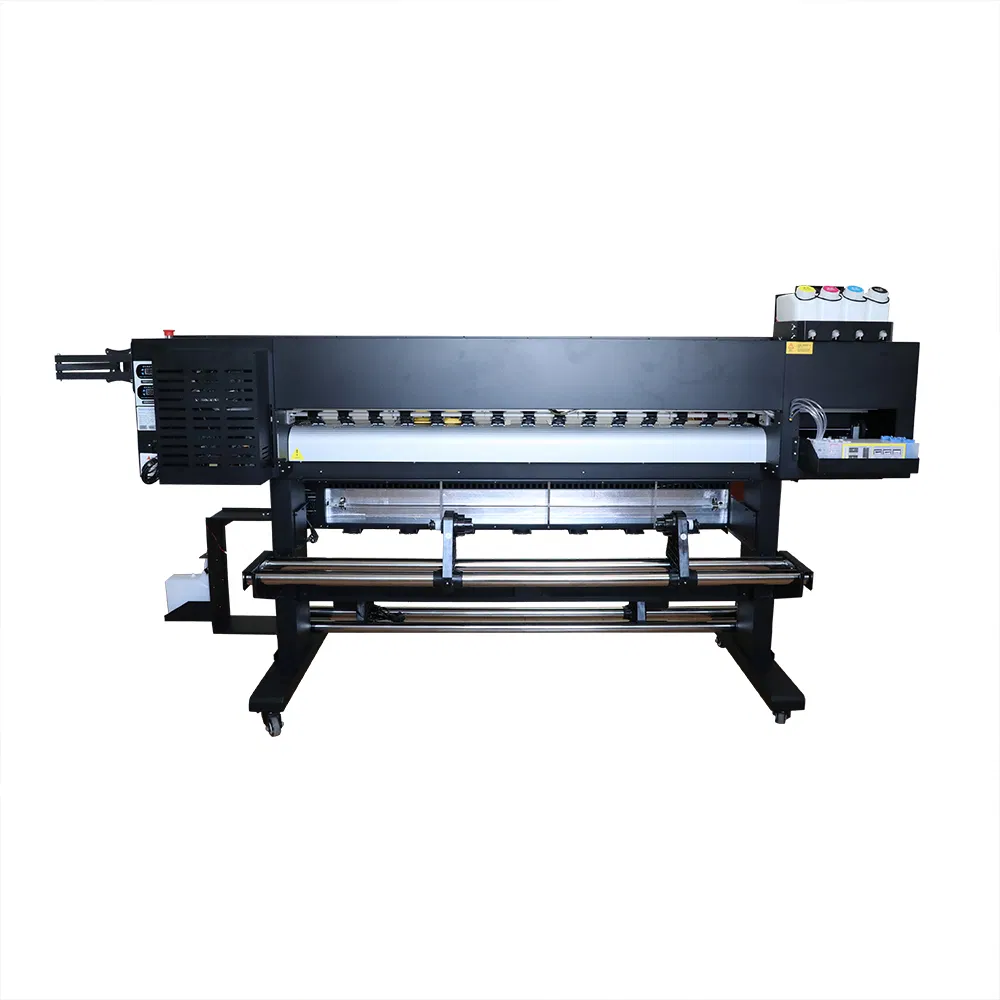

Large Format Sublimation Printer Machine for Fabric Printing
Large Format Sublimation Printer Machine for Fabric PrintingTECHNICAL PARAMETERSPrinthead51134720DX5Head Number3pcs3pcs3pcsPrinting Width1.8mPrinting ColorCMYKPrinting Precision2pass:360*1200DPI2pass:360*1200DPI4pass:720*720DPI4pass:720*1200DPI4pass:720*1200DPI6pass:720*1080DPI 6pass:360*1800DPI6pa......
Send Inquiry
Product Description
Large Format Sublimation Printer Machine for Fabric Printing
TECHNICAL PARAMETERS
TYPICAL FEATURES
ABOUT US
We TOPBON specialize in Sublimation printer and Eco solvent printer for over 10 years, now own brands Suteng, Meiteng and TOPBON. We have our own R&D Department, Hardware Producing Factory, Printer Assembling Factory and 3 Sales Department. We have over 20 engineers for after sale services all over the world, such as Malaysia, India, Vietnam, Pakistan, Russian, Bangladesh, Thailand, South Africa, Morocco, Ethiopia, Philippine and so on. No matter you are individual or agency, welcome to join us!
EXHIBITION & CUSTOMERS
We attend Guangzhou and Shanghai Exhibitions every year. Our Group are growing very fast in recent years, and now we cooperate with customers from Malaysia, Egypt, India, Pakistan, Ethiopia, kyrgyzstan, Philippines, France, America, Lebanon and Botswana etc.
TECHNICAL PARAMETERS
| Printhead | 5113 | 4720 | DX5 |
| Head Number | 3pcs | 3pcs | 3pcs |
| Printing Width | 1.8m | ||
| Printing Color | CMYK | ||
| Printing Precision | 2pass:360*1200DPI | 2pass:360*1200DPI | 4pass:720*720DPI |
| 4pass:720*1200DPI | 4pass:720*1200DPI | 6pass:720*1080DPI | |
| 6pass:360*1800DPI | 6pass:360*1800DPI | 8pass:720*1440DPI | |
| Printing Speed | 65~75m2/H | 65~70m2/H | 35~40m2/H |
| Ink Type | Sublimation ink | ||
| Printhead Height | 2-5 mm | ||
| Ink Supply System | Negative Pressure CISS | ||
| Software Operating Language | Chinese/English | ||
| Power | Standby power:32W , Max power:2400W | ||
| RIP Software | Ultraprint/Maintop | ||
| Operating Environment | Temperature: 20-33°C / Humidity: 35%-65% | ||
| File Format | BMP, JPG, PDF, TIF | ||
| Media Type | Sublimation paper | ||
TYPICAL FEATURES

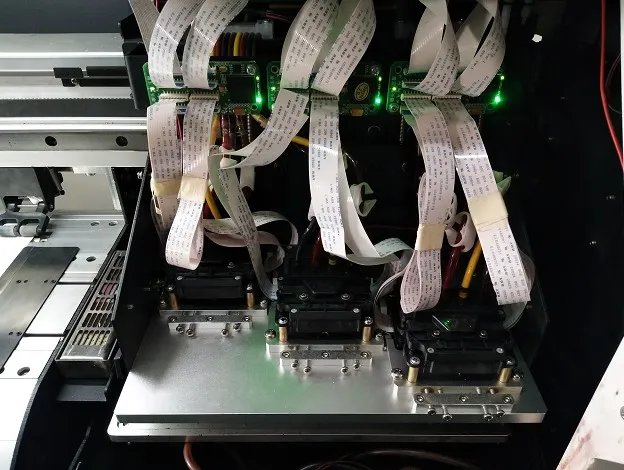

1. Print Head Original EP 5113 / DX5 / 4720(EPS3200) print head Fulfill all types of printing demonds Lift type ink stack, easy for operation |  |

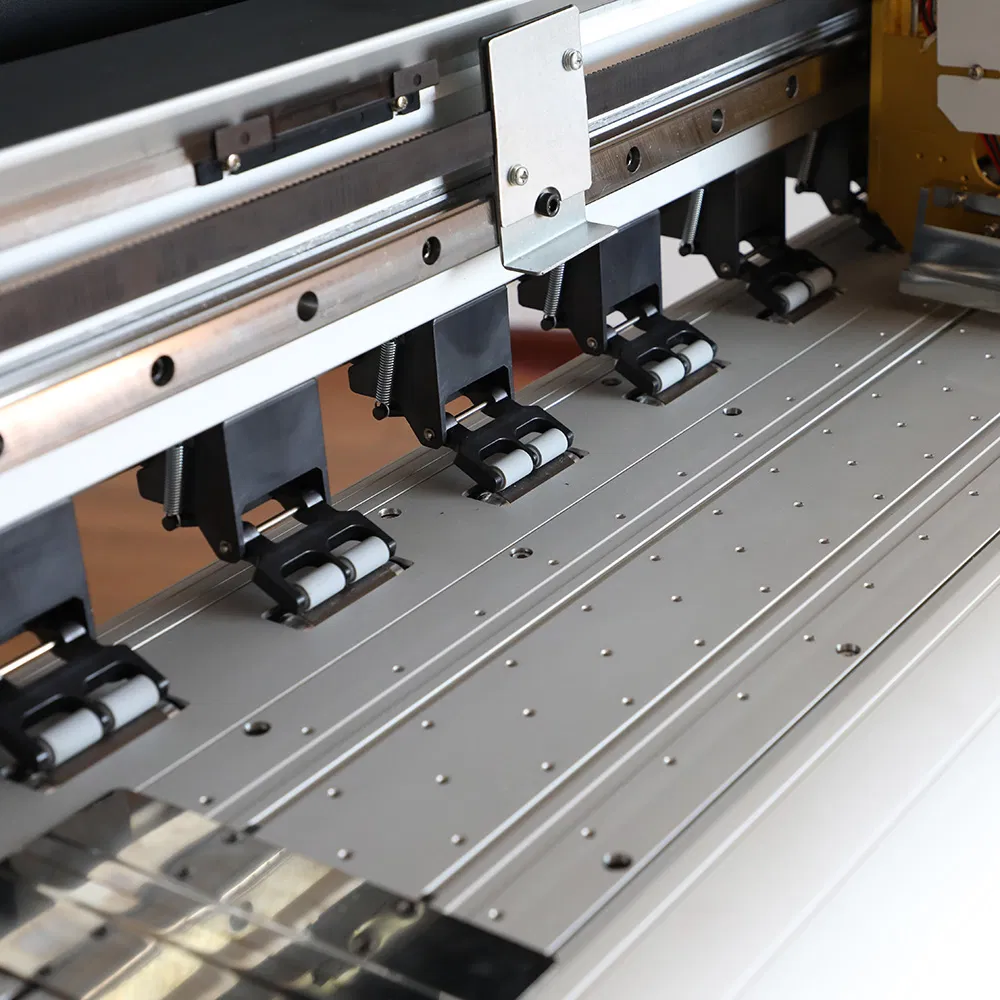

| 2. Taiwan Hiwin Guide Rail High rigidity, high bearing capacity Smooth operation, no noise, low friction Famous brand in printing industry Long life span American 3M belt |  |

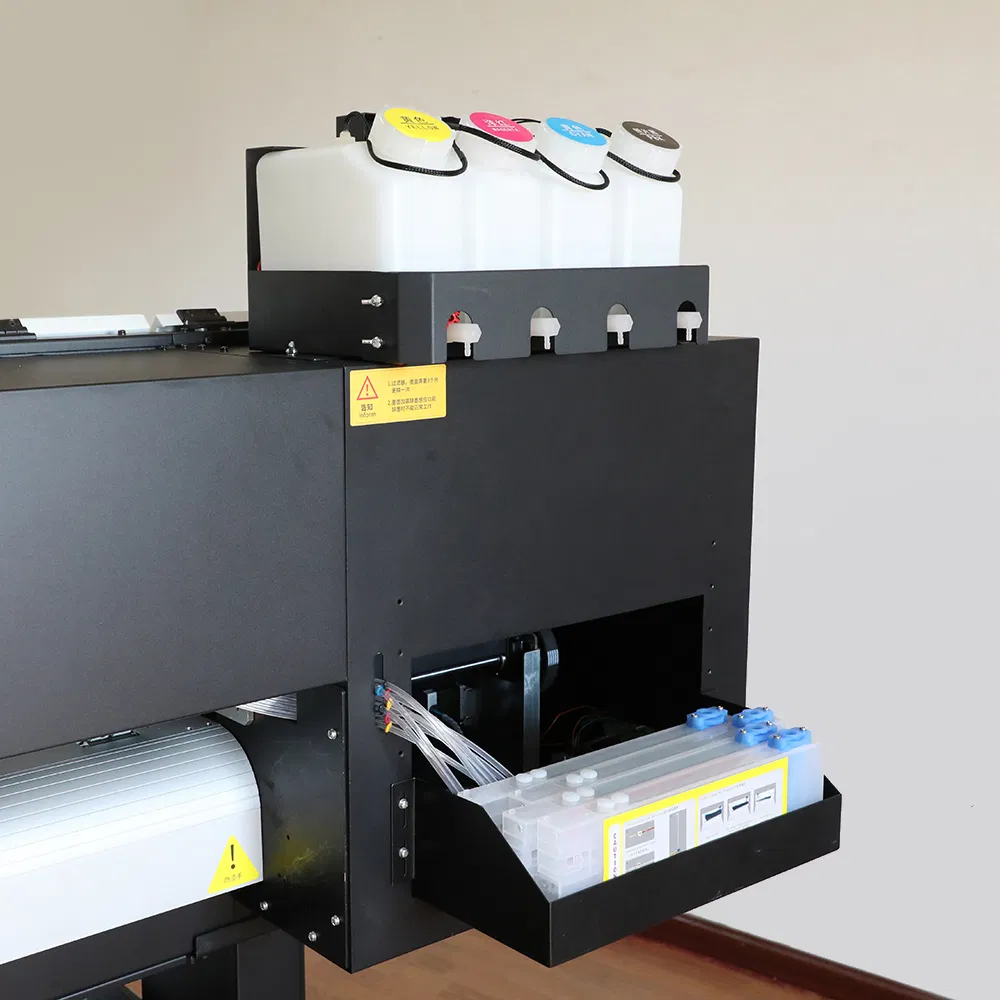

| 3. CISS with Ink Shortage Alarm Continuous ink supply system with ink shortage warning Full waste ink warning |  |

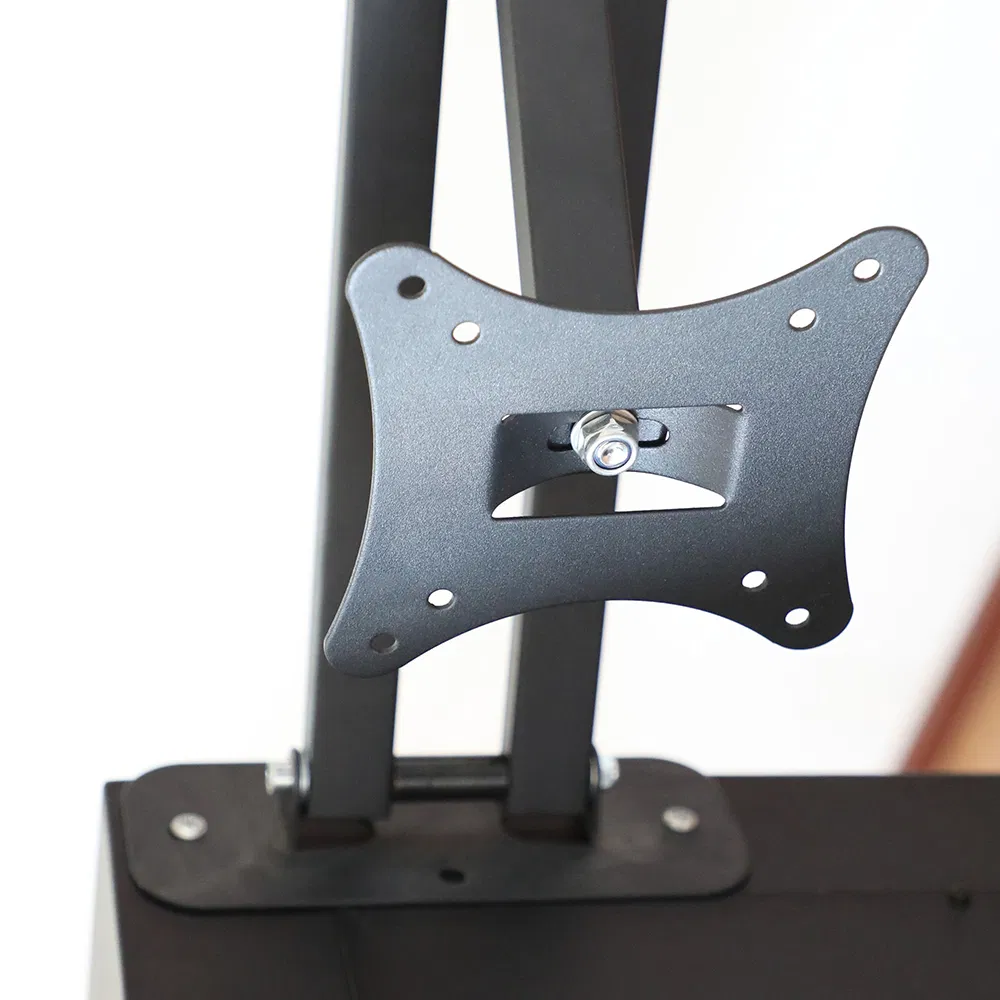

| 4.Computer Bracket Movable computer bracket, convenient and save space |  |

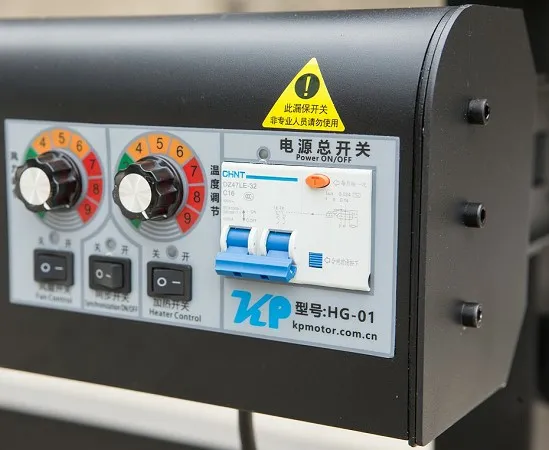

| 5. Intelligent Heater and Fan Intelligent heater with safety insulation paper around the tube which makes the temperature high inside and low outside |  |

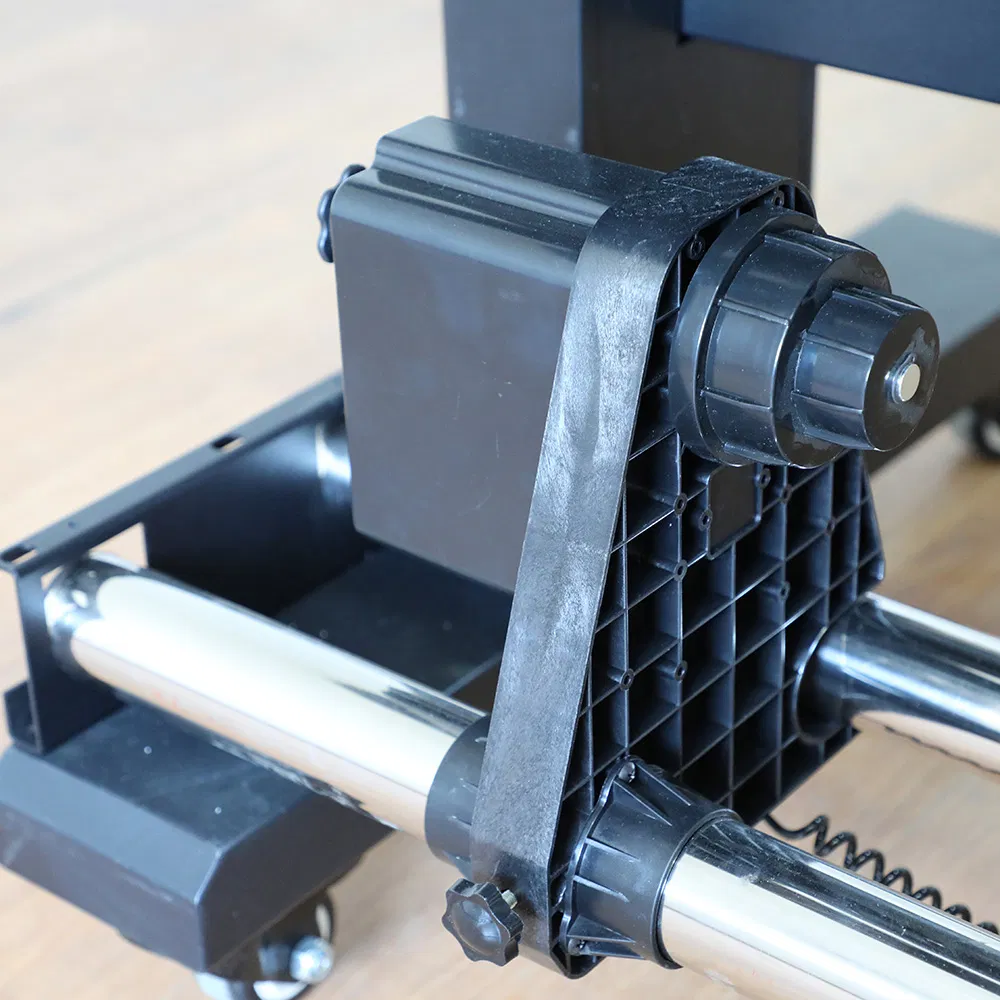

| 6. Optional Media Take Up System Standard media take up system -for 70~100 gsm paper Heavy duty media take up system -for 38~100 gsm paper |  |

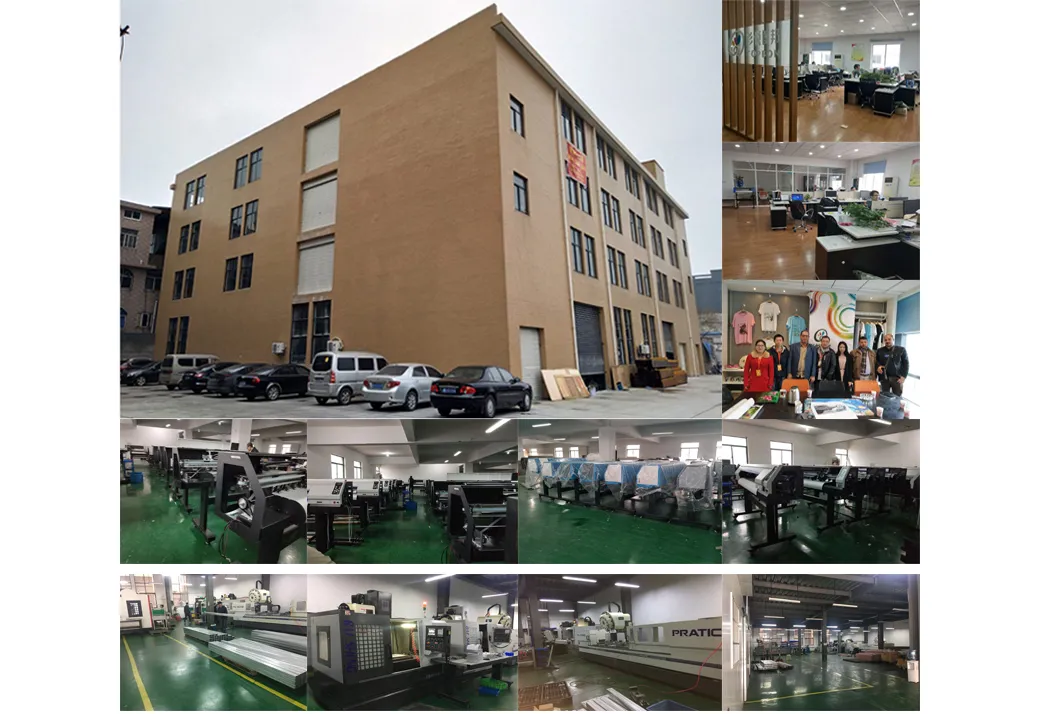

ABOUT US
We TOPBON specialize in Sublimation printer and Eco solvent printer for over 10 years, now own brands Suteng, Meiteng and TOPBON. We have our own R&D Department, Hardware Producing Factory, Printer Assembling Factory and 3 Sales Department. We have over 20 engineers for after sale services all over the world, such as Malaysia, India, Vietnam, Pakistan, Russian, Bangladesh, Thailand, South Africa, Morocco, Ethiopia, Philippine and so on. No matter you are individual or agency, welcome to join us!
EXHIBITION & CUSTOMERS
We attend Guangzhou and Shanghai Exhibitions every year. Our Group are growing very fast in recent years, and now we cooperate with customers from Malaysia, Egypt, India, Pakistan, Ethiopia, kyrgyzstan, Philippines, France, America, Lebanon and Botswana etc.
