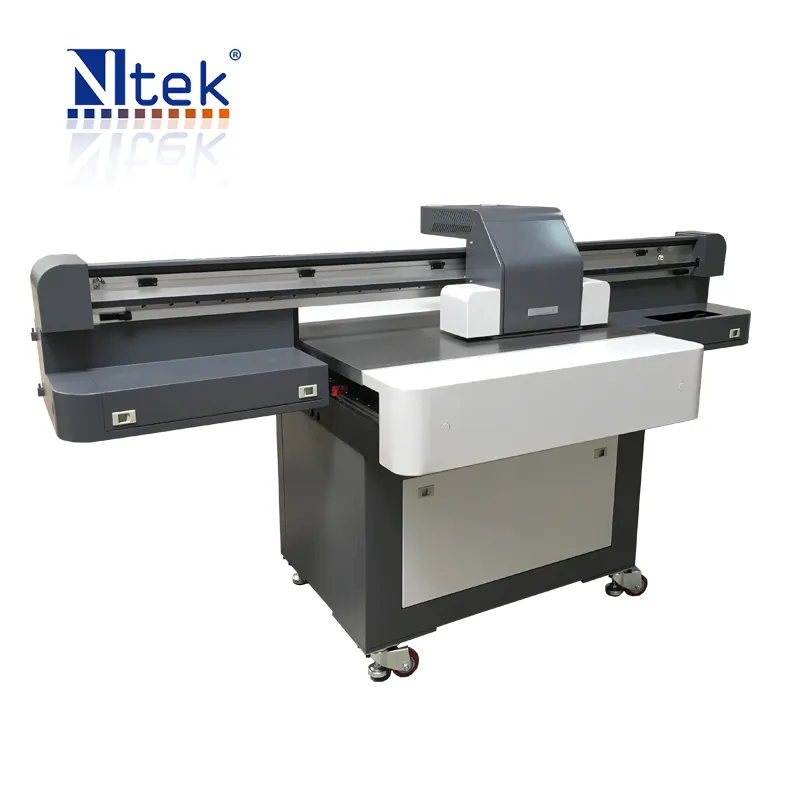

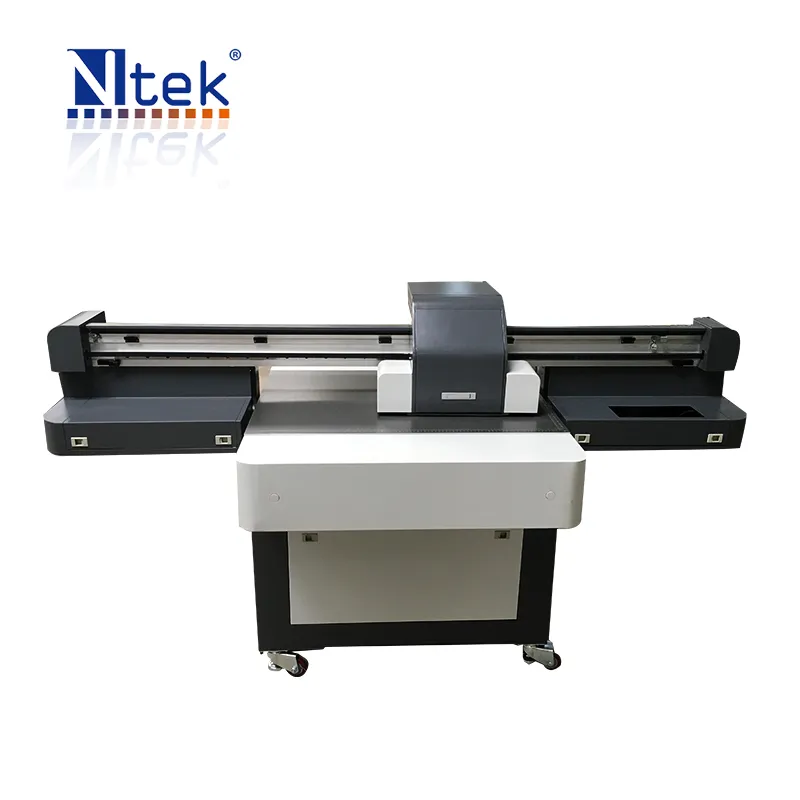

Ntek Bottle Printer with Epson Dx5 Dx7 XP600 Tx800 Head Yc6090
Ntek Bottle Printer With Epson DX5 DX7 XP600 TX800 Head YC6090UV flatbed printer is widly used to print on glass, ceramic tile, PVC, aluminum sheet, wood, MDF board, metal panel, billboard,acrylic panel, paper board, foam board, PVC expansion board, corrugated cardboard, bamboo, leather, bottle, cup......
Send Inquiry
Product Description
UV flatbed printer is widly used to print on glass, ceramic tile, PVC, aluminum sheet, wood, MDF board, metal panel, billboard,
acrylic panel, paper board, foam board, PVC expansion board, corrugated cardboard, bamboo, leather, bottle, cup, USB etc;
and for flexible materials such as PVC, canvas, leather etc.
Specification
| Product Model | YC6090 |
| Printhead Technology | Drop-on demand piezo eletric |
| Printhead Control | Printhead voltage is software adjustable |
| Printhead Type | EPSON DX5/DX7/XP600/TX800, Ricoh GH2220 or Toshiba CE4 Printhead |
| Printhead Number | 2/3 Epson head or 6/8 Ricoh GH2220 heads |
| Ink Characteristics | UV Curing Ink |
| Ink Reservoirs | Refillable on the fly while printing/1000ml per color |
| LED UV Lamp | More than 20000-hours life |
| Color Control | ICC based color, curves and density adjustment |
| Printhead Aarrangement | CMYKW Vanish optional 3-12sqm/h |
| Printhead Cleaning System | Automatic Cleaning System, Automatic Dry-preventing System |
| Guide Rail | Taiwan HIWIN |
| Working Table | Vacuum Sucking |
| Printing Size | 900*600mm |
| Print Interface | USB2.0 |
| Media Thickness | 0-100mm, higher can be customized |
| Print Resolution | 360dpi, 720dpi, 1440dpi, 2160dpi |
| Life of Printed Image | 3 years (outdoor),10years (indoor) |
| File Format | TIFF, JPEG, Postscript, EPS, PDF etc. |
| RIP Software | UltraPrint/ Photoprint |
| Power Supply | 220V 50/ 60Hz (10%) |
| Power | 1100W |
| Operation Environment | Temperature 20 to 30ºC, Humidity 40% to 60% |
| Machine Dimension | 1060*2100*1160mm |
| Packing Dimension | 1260*2250*1360mm |
| Weight | 500kg |
| Warranty | 13 months exclude the consumables |

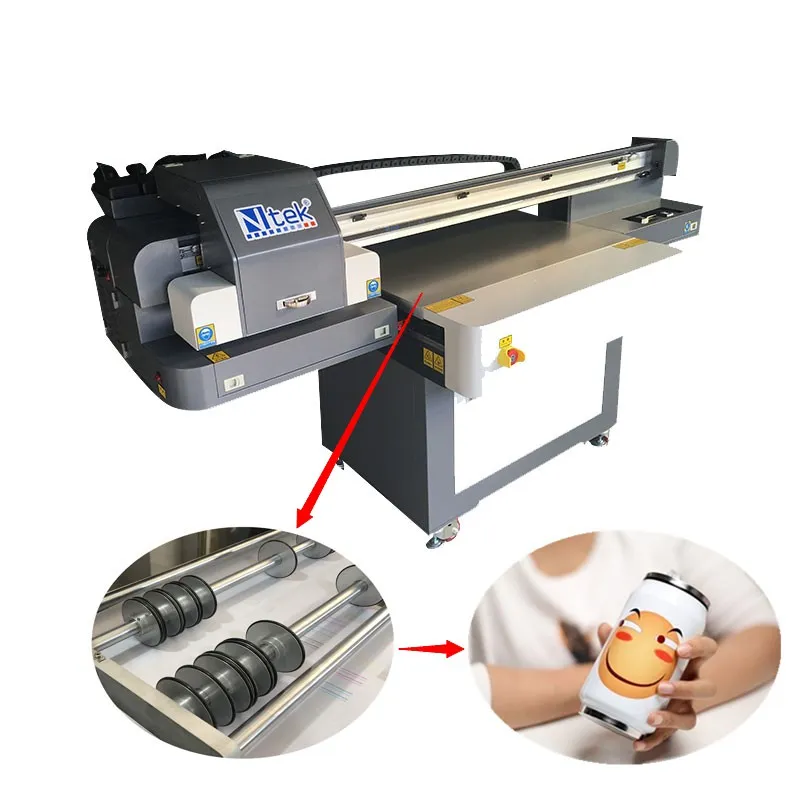

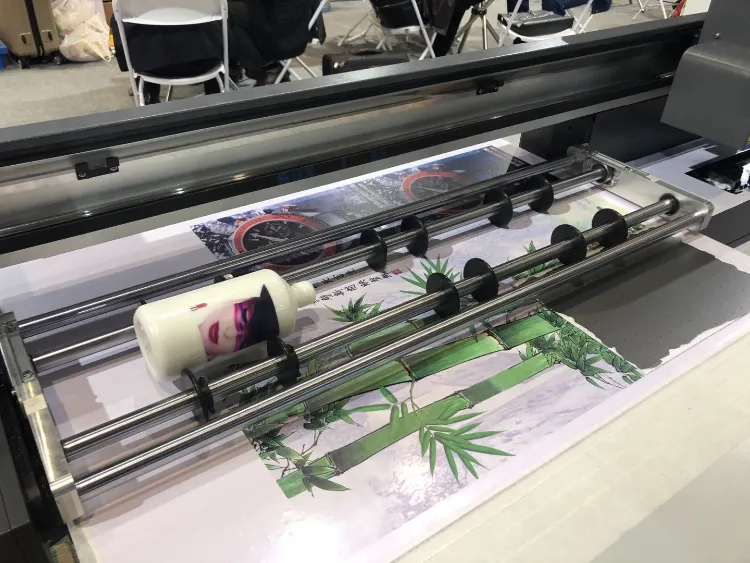

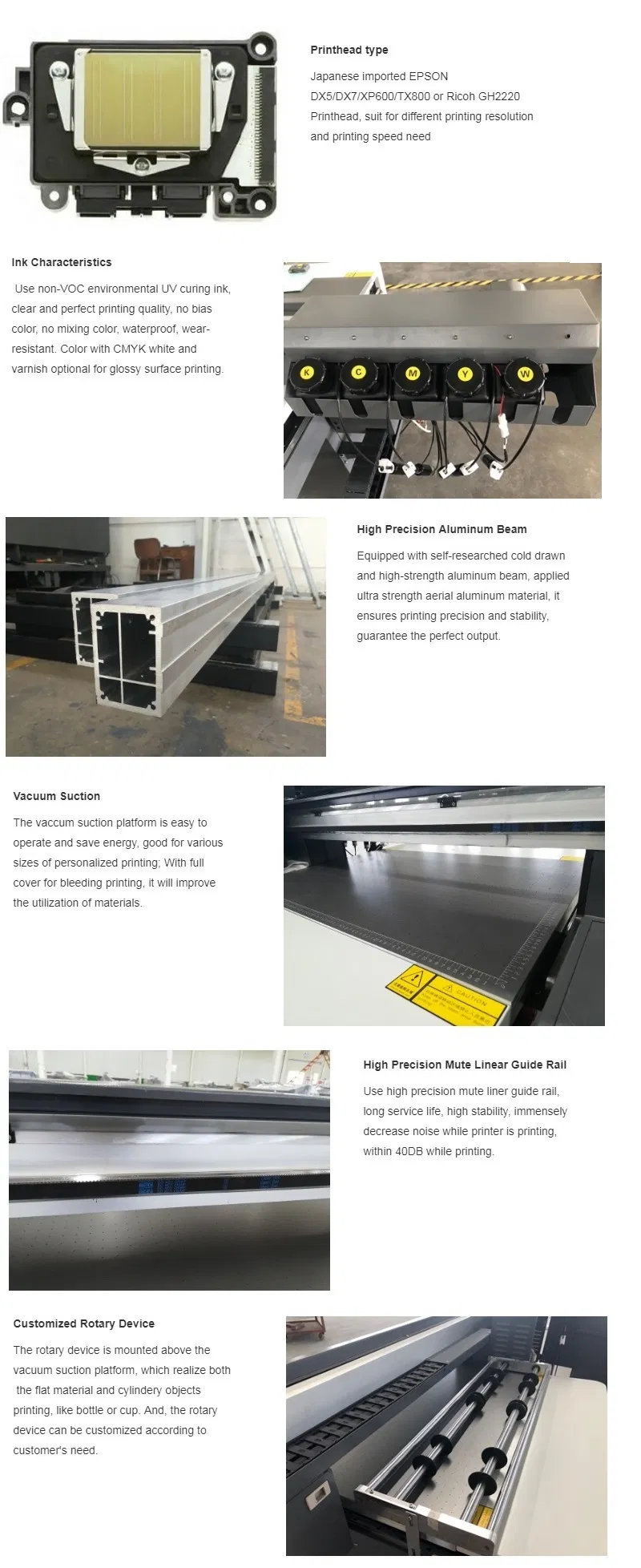

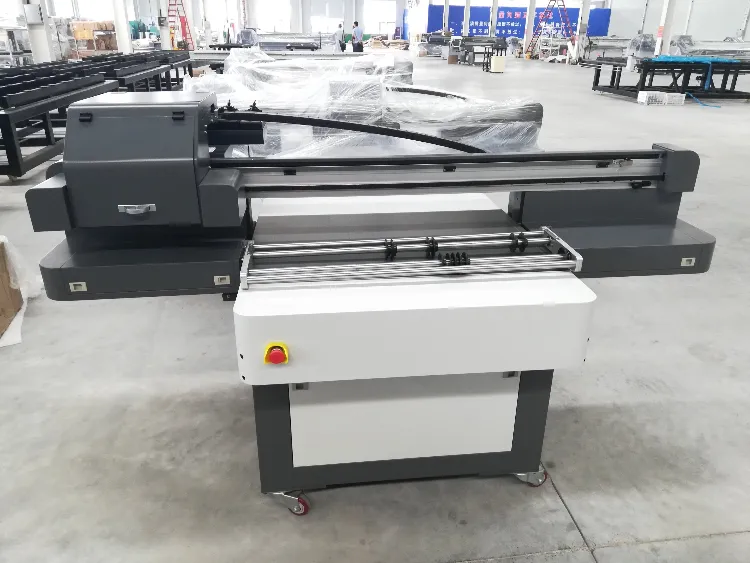

Printer Details
Printing Samples

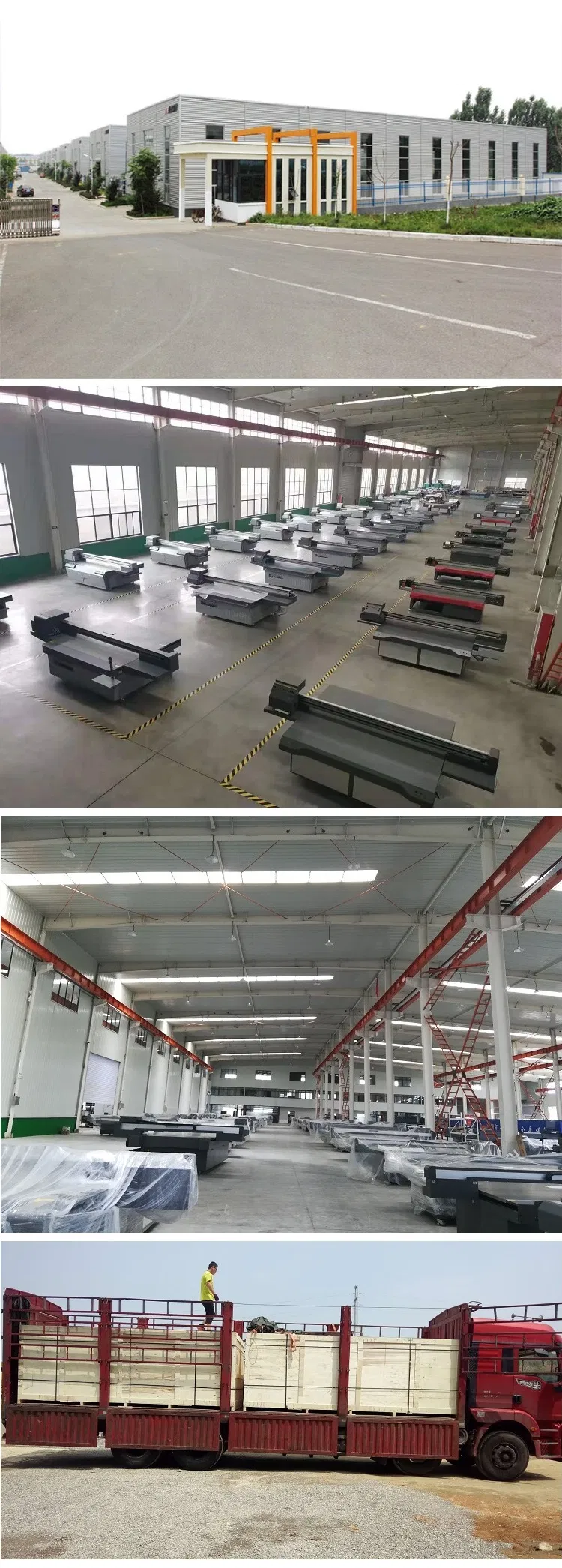

Company Profile
Linyi Win-Win Machinery Co.,Ltd is founded in 2009 in Shandong Province, China. is a high-tech machinery manufacturer,
integrated with the R&D, production, sales and maintenance in a whole. We mainly manufacture large format UV flatbed
printers and OEM service is available.
We have 10 years experience in producing and exporting UV flatbed printers. With high quality printers and perfect service,
our printers are welcome in Europe and Middle east and American market.
The UV flatbed printer is used to print on glass, ceramic tile, PVC ceiling, aluminum sheet, wood MDF board, metal
We endeavor to serve the needs of all people, especially to the customers and agents. By continually developing
Exhibition & Team
1.How long does the printing images will last outdoors and indoor?
The printing images can last at least 3 years outdoors, and more than 10 years indoor.
2.What is the cost of ink for printing on the materials?
Normally it is around 0.5-1usd per square meter for ink cost.
3.How about the stability and quality of the printing images?
This UV flatbed printer can used to print on most of medias with best quality, durability, best result.
4.How about the maintance and aftersales service?
Our engineer available service overseas, and we can provide remote control service and online service for customers. But costomer
has to be responsible for the accommodation and transportation costs of the technical staff.
5.Are you a manufacturer or trade agent?
We are the manufacturer of UV flatbed printers.
6.Is there any guarantee for this printer?
Yes, we have guarantee for the printer. We provide 13 months warranty for all the electronic parts including the main board,
driver board, control board, motor, etc, except the consumables, such as ink pump, printhead, ink filter, and slide block etc.
7.How can I install and start to use the printer?
Normally we will arrange technican for installation and training in your factory. or you can read the users' manual to understand
the machine. If you need any help, our technician can help you via Teamviewer. Whenever you have questions to the machine, you can
contact our technician or me directly.
8.Can I get supplies and wearing parts from you?
Yes, we provide all the wearing parts for our printers always and they are in stock.
9.How will you achieve the warranty?
If any electronics or a mechanical part is confirmed to be broken, Ntek should send the new part within 48hours by express like
TNT, DHL, FEDEX .etc to the buyer. And the shipping cost should be born by the buyer.
10.What kinds of materials need premier before printing?
Glass, ceramic, metel, acrylic, marble etc
