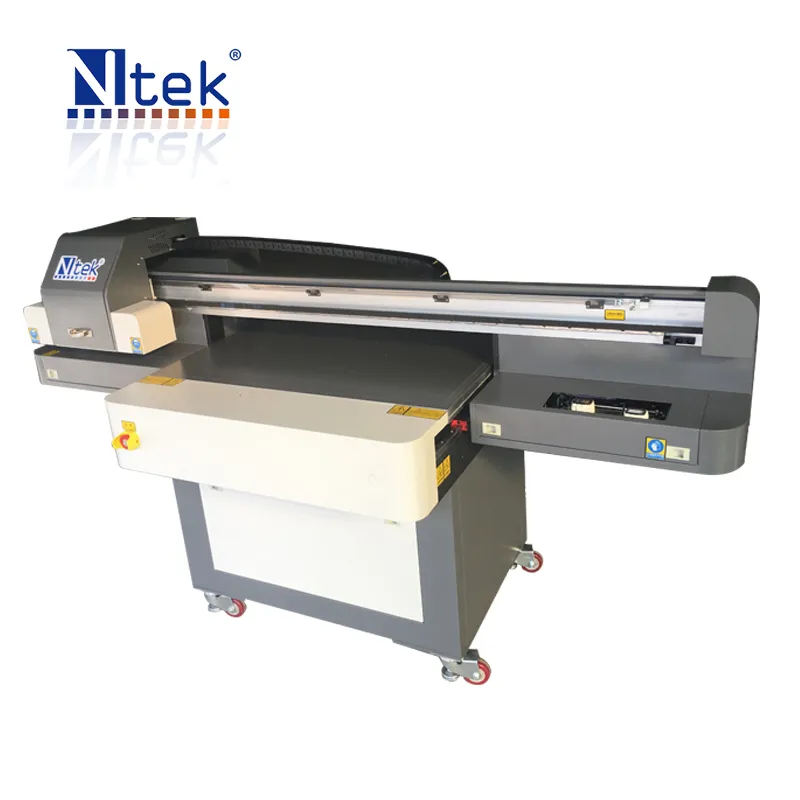

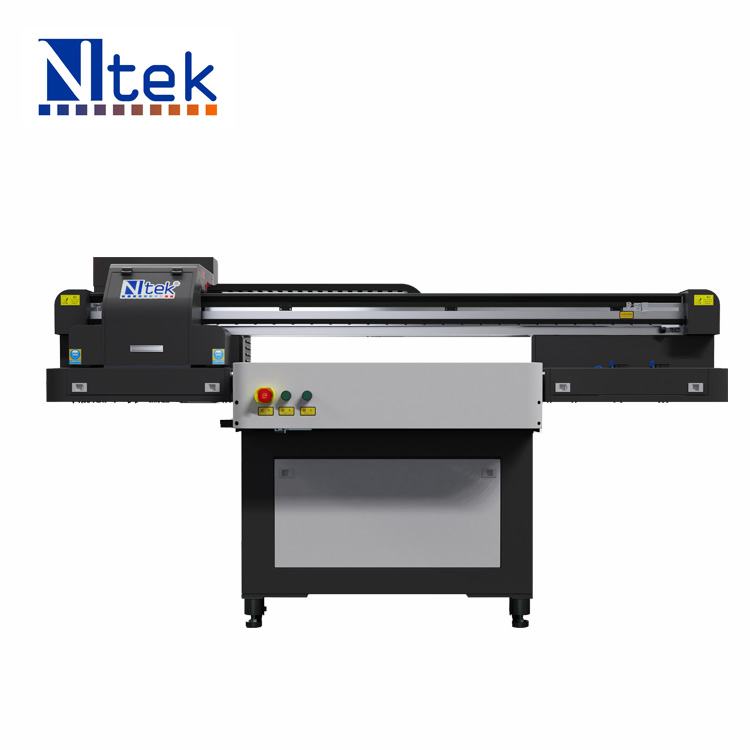

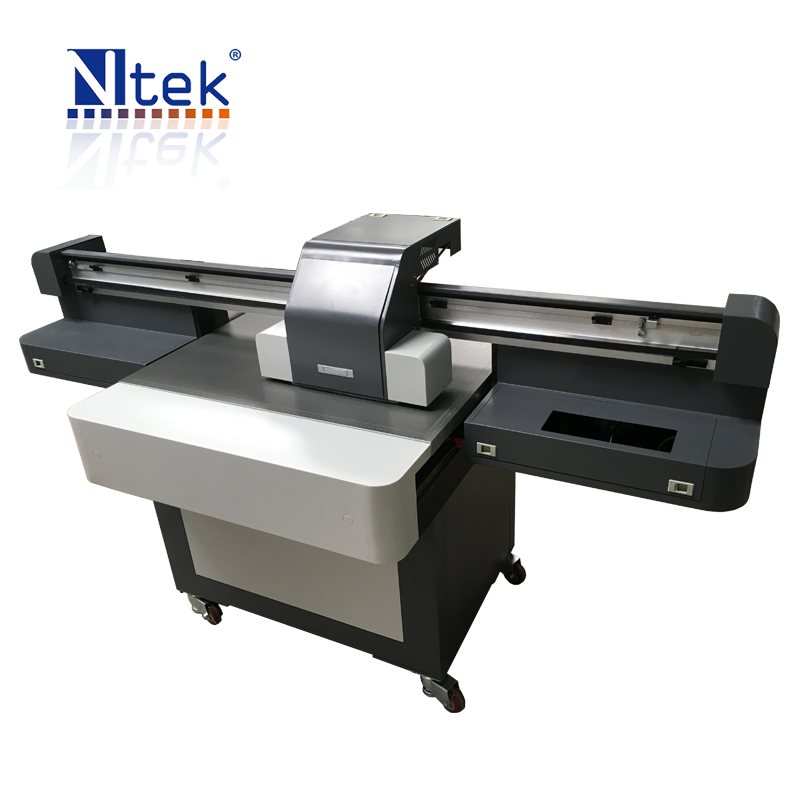

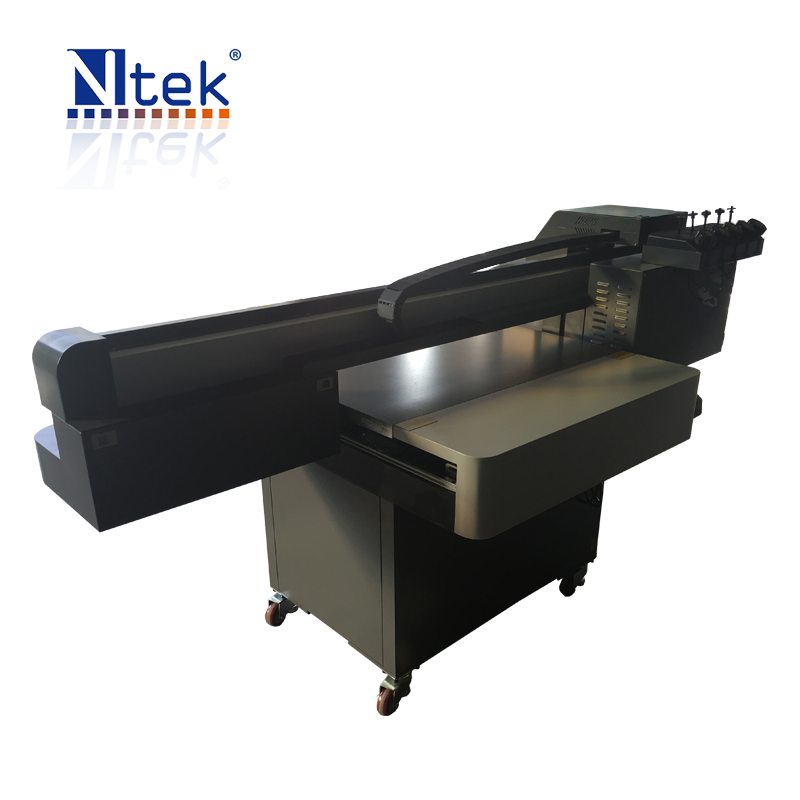

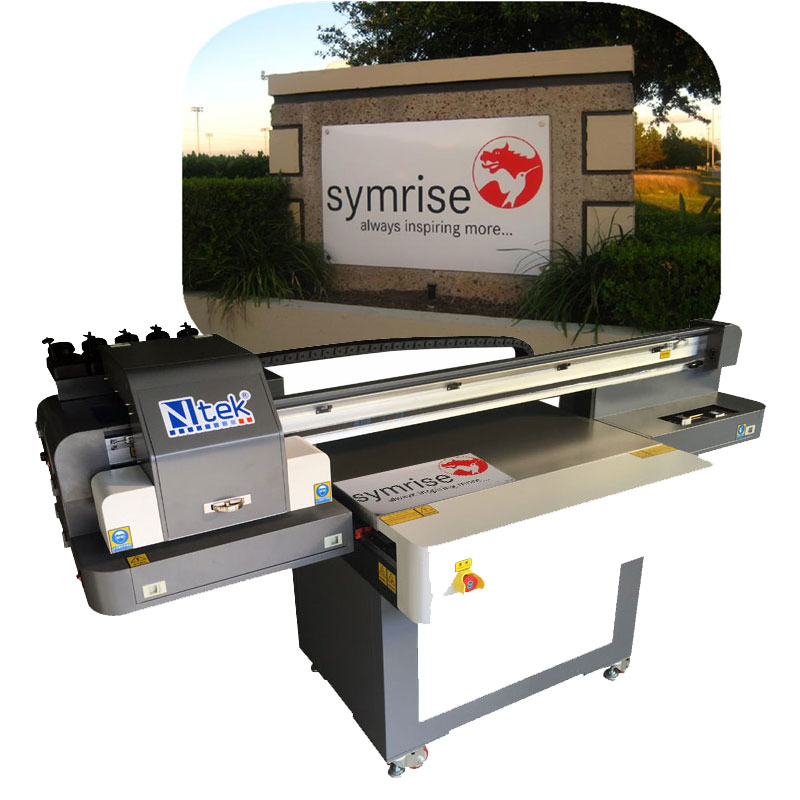

Stable High Speed UV Flatbed Printer for Glass Printing Machine
Main Features:Equipped with Japanese EPSON headsCMYK and white ink color printingWhite ink circulation and mixing functionsWater circulating cooling system for UV LED lampsTaiwan HIWIN guide rail for stable workingCustomized bridge for accurate and stable workingEasy and convenient operationNew upda......
Send Inquiry
Product Description
Main Features:Equipped with Japanese EPSON heads
CMYK and white ink color printing
White ink circulation and mixing functions
Water circulating cooling system for UV LED lamps
Taiwan HIWIN guide rail for stable working
Customized bridge for accurate and stable working
Easy and convenient operation
New updated printer with higher quality and faster speed
Printing Materials:
UV flatbed printer is used to print on glass, ceramic tile, PVC ceiling, aluminum sheet, wood MDF board, metal
panel, aluminium sheet, billboard, acrylic panel, paper board, foam board, PVC expansion board, corrugated
cardboard, bamboo fiber board etc; and for flexible materials such as PVC, canvas, leather etc.
Product Model | YC6090 |
Printhead Technology | Drop-on demand piezo electric |
Printhead Control | Printhead voltage is software adjustable |
Printhead Type | EPSON DX5/DX7/XP600/TX800/RICOH GH2220 |
Printhead Number | 2/3(EPSON) 6/8 heads(GH2220) |
Ink Characteristics | UV Curing Ink |
Ink Reservoirs | Refillable on the fly while printing/1000ml per color |
LED UV Lamp | More than 20000-hours life |
Color Control | ICC based color, curves and density adjustment |
Printhead Arrangement | CMYKW varnish optional 3-12sqm/h |
Cleaning System | Positive Pressure Cleaning |
Guide Rail | Taiwan HIWIN |
Working Table | Vacuum Sucking/ Glass Table |
Printing Size | 900*600mm |
Print Interface | USB2.0 |
Media Thickness | 0-100mm, higher can be customized |
Print Resolution | 360*1080dpi, 720*720dpi, 720*1080dpi,720*1440dpi |
Life of Printed Image | 3 years(outdoor),10years(indoor) |
File Format | TIFF,JPEG,Postscript3,EPS,PDF etc. |
RIP Software | UltraPrint/ Photoprint optional |
Power Supply | 220V 50/60Hz(10%) >15A |
Powder | 1100W |
Operation Environment | Temperature 20 to 28ºC, Humidity 40% to 60% |
Machine Dimension | 1060*2100*1160mm |
Packing Dimension | 1260*2250*1360mm |
Weight | 300kg |
Warranty | 12 Months exclude the consumables |

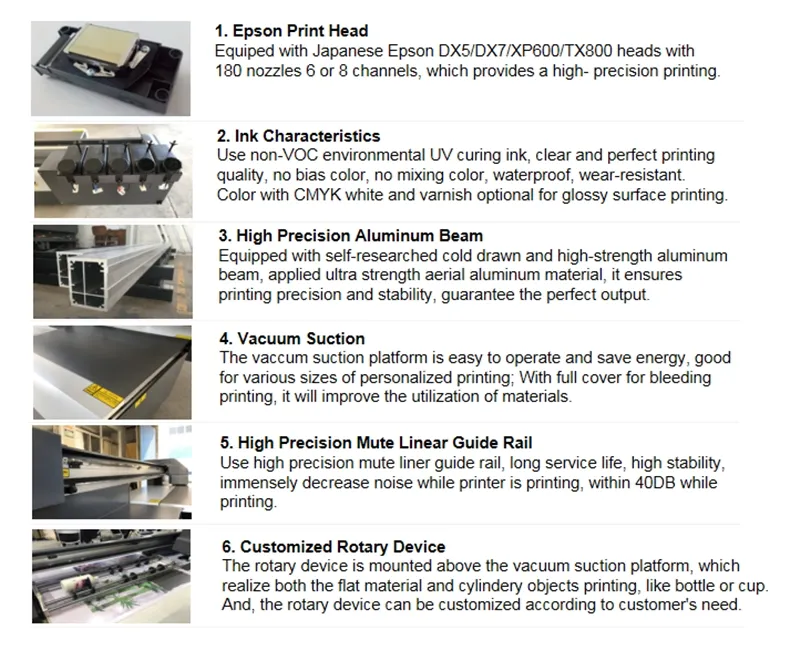

Product Details:

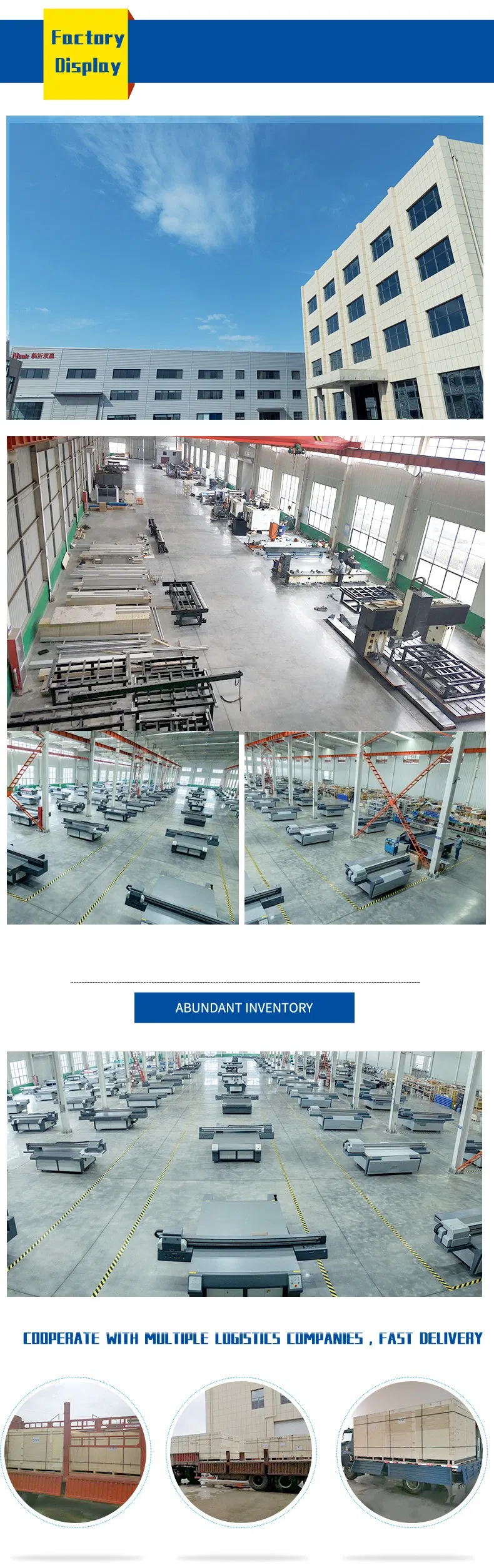

Company Information:
Custmors Visit:
FAQ:
1.How long does the printing images will last outdoors and indoor?
The printing images can last at least 3 years outdoors, and more than 10 years indoor.
2. How about the stability and quality of the printing images?
This UV flatbed printer can used to print on most of medias with best quality, durability,best result.
3. How about the maintance and aftersales service?
Our engineer available service overseas, and we can provide remote control service and online service for customers.
But costomer has to be responsible for the accommodation and transportation costs of the technical staff.
4.Are you a manufacturer or trade agent?
We are the manufacturer of Uv flatbed printers.
5. Is there any guarantee for this printer?
Yes, we have guarantee for the printer. We provide one year warranty for all the electronic parts including the
main board, driver board, control board, motor, etc. But there is no warranty for wearing parts like ink pump,
printhead, ink filter, and slide block since they are consumables.
6. How can I install and start to use the printer?
At first, you should read the users' manual to understand the machine and watch the video. After you get the
machine, our technician will teach you how to install and use-machine by remote control via Teamviewer or Skype.
Whenever you have questions to the machine, you can contact our technician or me.
7.Can I get supplies and wearing parts from you?
Yes, we provide all the wearing parts for our printers always and they are in stock.
8. How will you achieve the warranty?
If any electronics or a mechanical part is confirmed to be broken, Ntek should send new part within 48hours by
express like TNT, DHL, FEDEX etc to the buyer. An shipping cost should be born by the buyer.
9. What kinds of materials need premier before printing?
Glass, ceramic, metel, acrylic, marble etc.
