Home > Products > Printing Inks > Ecoographix Solvent Pigment Oil Based Offset Sheetfed Printing Ink
Ecoographix Solvent Pigment Oil Based Offset Sheetfed Printing Ink
ECOO-INK-F printing ink is suitable for printing packaging, advertisement, label and decorating products on art paper, coated paper, offset paper, cardboard, etc., especially suitable for single-color and multi-color printing. *Environment protecting *Anti-skinning performance*Good water/ink balance......
Send Inquiry
Product Description
ECOO-INK-F printing ink is suitable for printing packaging, advertisement, label and decorating products on art paper, coated paper, offset paper, cardboard, etc., especially suitable for single-color and multi-color printing.
*Environment protecting
*Anti-skinning performance
*Good water/ink balance
*Rich in printing layer
*Clear and complete in printing dots
*Quick-drying performance, quick setting, quick turn
Technical data
| Type | ECOO-IN-F |
Features | Printing speed: 8,000rph-10,000rph Environment friendly Good water/ink balance Rich in printing layer Clear and complete in printing dots Quick-drying performance, quick setting, quick turn |
| Packing | 2.5 kg/tin, 6 tins/carton |
| Shelf Life | 3 years(from the production date); product against light and water |
Application | ECOO-IN-F printing ink is suitable for printing packaging, advertisement, label, brochures and decorating products on art paper, coated paper, offset paper, cardboard, etc., especially suitable for single-color and multi-color printing. |
| ITEM/TYPE | TACK VALUE | FLUIDITY (mm) | PARTICLE SIZE (μm) | SETTING TIME (min) | DRYING TIME (hr) | SKINNING TIME (hr) |
| F YELLOW | 6-7 | 35±1 | 15 | 4 | < 10 | >15 |
| F MAGENTA | 5.5-6.5 | 34±1 | 15 | 4 | < 10 | >15 |
| F CYAN | 6.5-7.5 | 35±1 | 15 | 4 | < 10 | >15 |
| F BLACK | 7-8 | 35±1 | 15 | 4 | < 10 | >15 |
| Tack Value | The value is measured in 1 minute by inkometer at 32ºC and 400rpm. | |||||
| Set Time | Printing adapter, 157g art paper, the volume of ink-coating can be up to 0.125cc | |||||
| Condition of test | Room temperature 25ºC, humidity 65%-75% | |||||
| ITEM/TYPE | Light Resistance | Heat Resistance | Acid Resistance | Alkaline Resistance | Alcohol Resistance | Soap Resistance |
| F YELLOW | 4 | 5 | 5 | 4 | 4 | 4 |
| F MAGENTA | 3 | 5 | 5 | 5 | 4 | 5 |
| F CYAN | 7 | 5 | 5 | 5 | 5 | 5 |
| F BLACK | 7 | 5 | 5 | 5 | 5 | 5 |
| Light Fastness | 1-8 (weak-strong) | |||||
| Others | 1-5 (weak-strong) | |||||
Certification
EcooGraphix series Printing Inks have passed the China environmental label product certification (ten central certification), ISO9001 quality management system, ISO14001 environmental protection system certification, ROHS certification and REACH certification, American ASTM, CPSIA and other related safety testing and certification, and the SONY SGS certification.

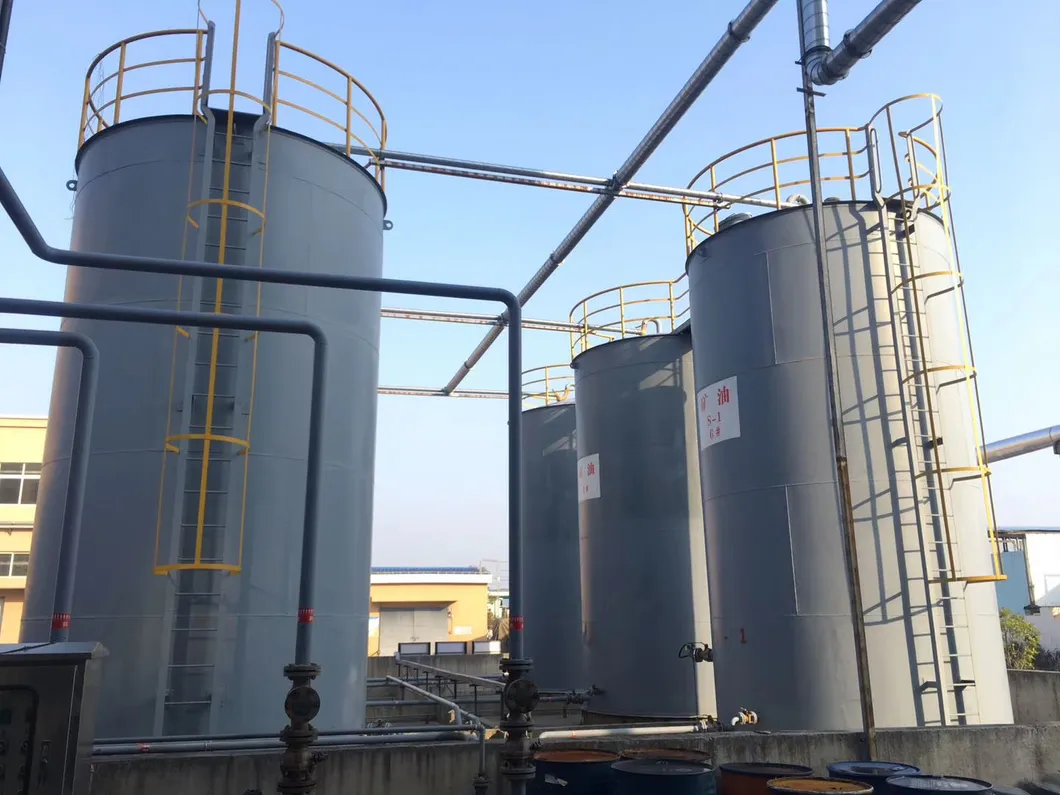

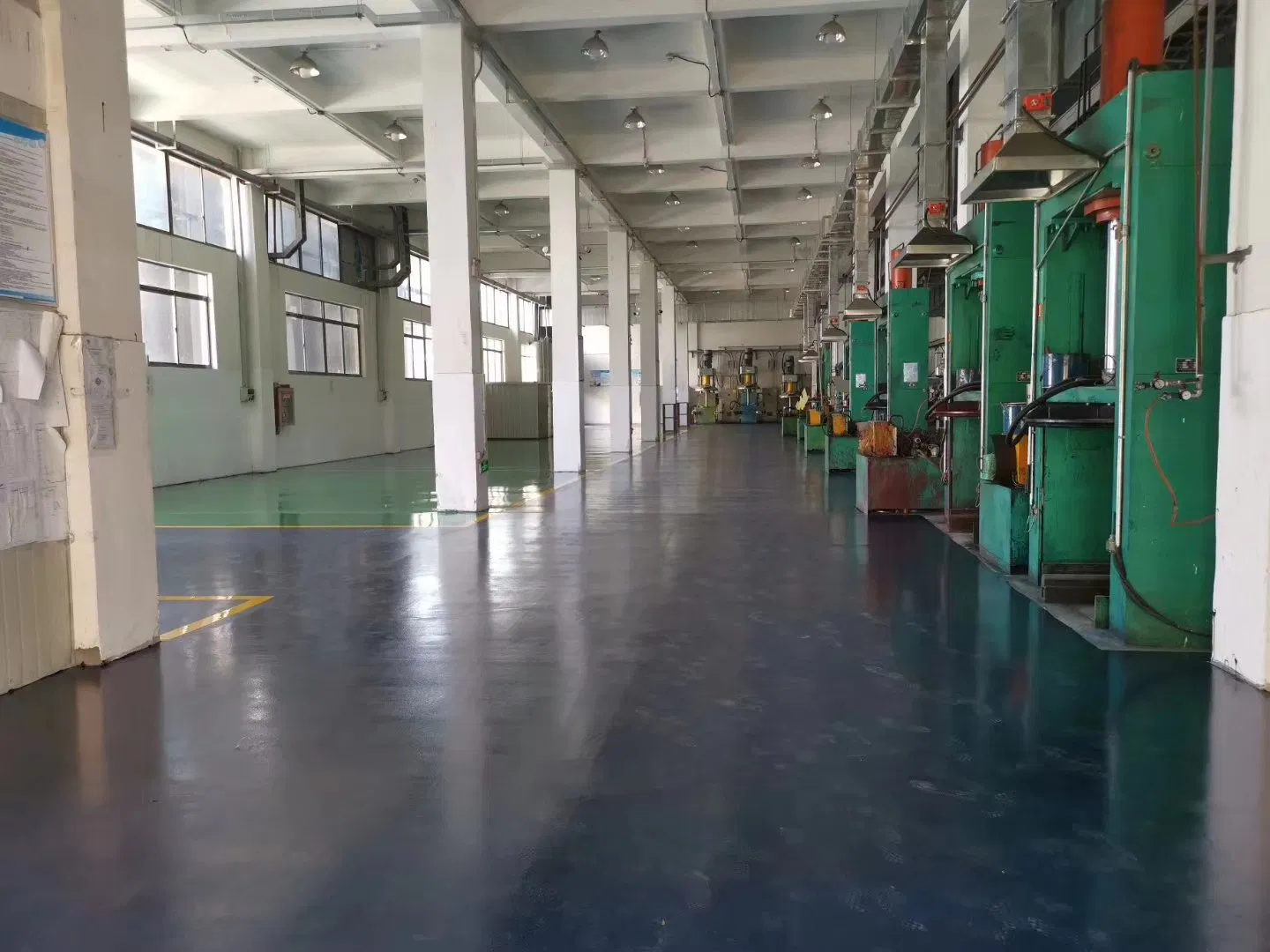

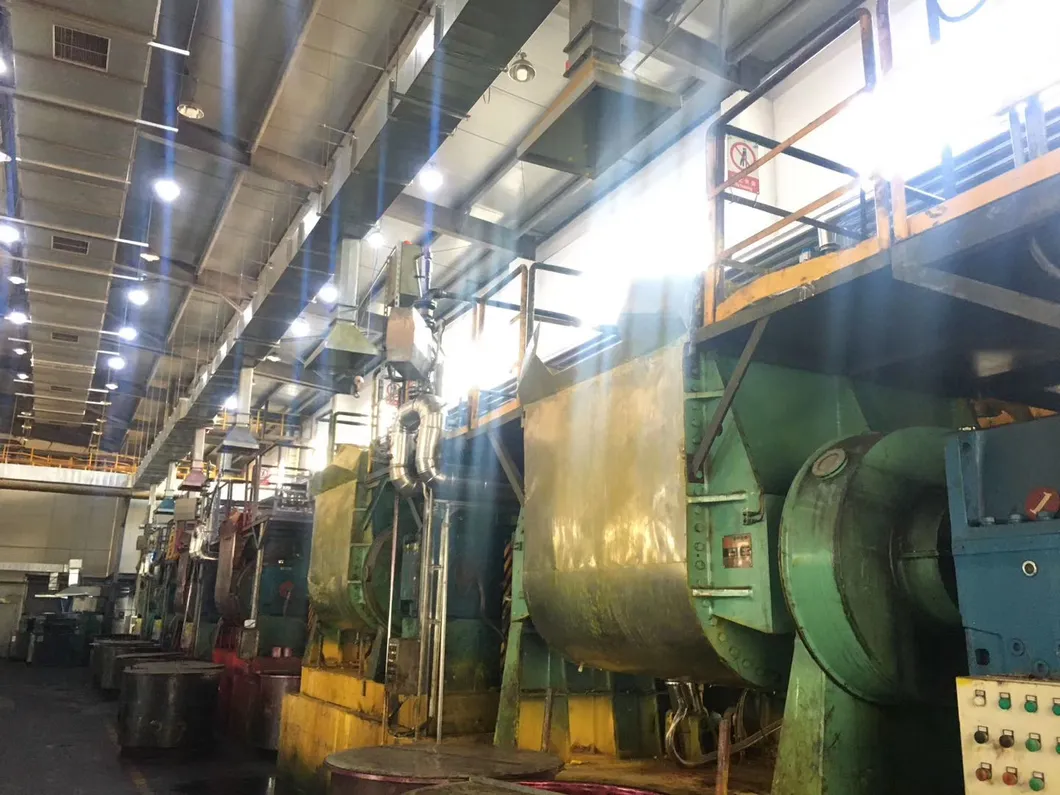

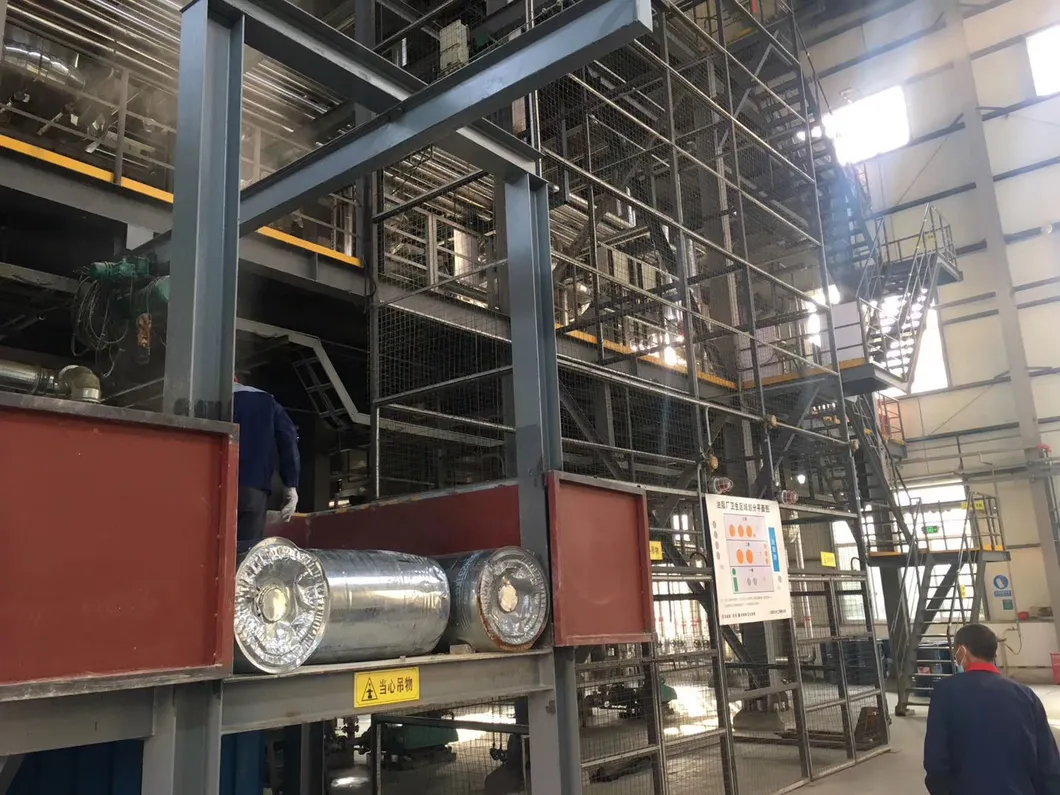

Our factory and Producing line
Our factory located in Shanghai. It has two producing plant and independent oil producing line. The productivity reaches up to 4000000 tons. It is certified by ISO, Rohs. You can visit at any time.
Tips before ink processing and after processing
Do not judge the color of ink by the looking into the package only. All inks appear in thick layer n the container darker and dirtier as in the print. You may mistake the black to the blue or red.
You may find bubbles in the ink which is nitrogen mixed in producing to exclude oxidative drying problems. Do not worry, the bubbles will disappear on the rolls of the inking unit and will not lead to printing problems.
During longer print interruptions the rolls have to be cleaned and ink in the ink duct has to been sprayed on with antioxidant.
Remove skin whenever you find in the opened container regardless how small the skin is.
Inks which was mixed with printing aids should not filled backed to the original ink.
