              Automatic Roll to Roll Silk Screen Printing Machine for Nameplate Panel, FPC, IMD, Frid, Heat Transfer Label

              Automatic Roll to Roll Silk Screen Printing Machine
              Machine Description:

              The Automatic Roll to Roll Silk Screen Printing Machine is designed to print on film material in roll, such as PET, PVC, PE, PV, PP film.

              This screen printing machine is composed of a feeder, a printing unit and a hot air dryer.

              The feeder has dust removal rollers, it is able to alarm when the roll material run out.

              The printing unit table has vaccum to fix PET film in position to ensure printing accuracy. It is equipped with three photocell sensors for automatic registration.

              The hot air dryer has 30M, 60M and 80M length pass for option. It is able to cool and wind cured film into a roll after being dried.

              High level of automation, only one people can operator the the whole printing line.

              High printing accuracy, multi color overprint can be done on the machine.

              High productivity, production capacity equal to six sets of semi-automatic screen printing machine.
              Automatic Roll to Roll Silk Screen Printing Machine for Nameplate Panel, FPC, IMD, Frid, Heat Transfer Label
              Automatic Roll to Roll Silk Screen Printing Machine for Nameplate Panel, FPC, IMD, Frid, Heat Transfer Label

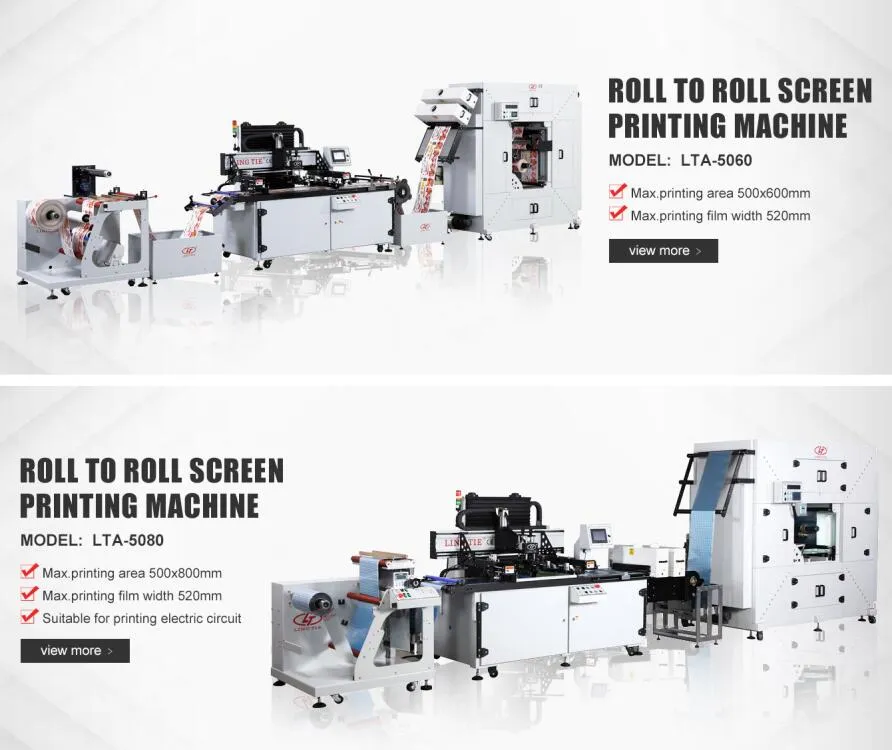

              Automatic roll to roll silk screen printing machine includes a feeder, a screen printing unit and a hot air dryer.

              Application: RFID, heat transfer label, labels and stickers, membrane switches, graphic overlay, IMD, IML, FPC, ceramic decals, motorcycle helmet decals, nameplate and non-woven fabrics, etc.



              Machine Parameters:

              ModelLTA-3040LTA-5060LTA-6080
               Max. Printing Size300x400mm500x600mm600x800mm
               Printing Speed0~5000 print/hr.0~2500 print/hr.0~2500 print/hr.
               Max. Screen Frame Size600x800mm800x1000mm900x1200mm
               Frame Adjusting Variable60mm60mm60mm
               Max. Substrate Width320mm520mm620mm
               Registration Accuracy±0.01mm±0.01mm±0.01mm
               Air Source0.4~0.6mpa0.4~0.6mpa0.4~0.6mpa
               Power220V, 3KW, 15A220V, 3KW, 15A220V, 3KW, 15A
               Printing Material Thickness0.02~0.5mm0.02~0.5mm0.02~0.5mm
               Weight600kgs700kgs950kgs
               Overall Dimensions (L*W*H)7000x1100x1900mm8100x1360x2260mm9000x1350x2200mm

              Machine Photos:

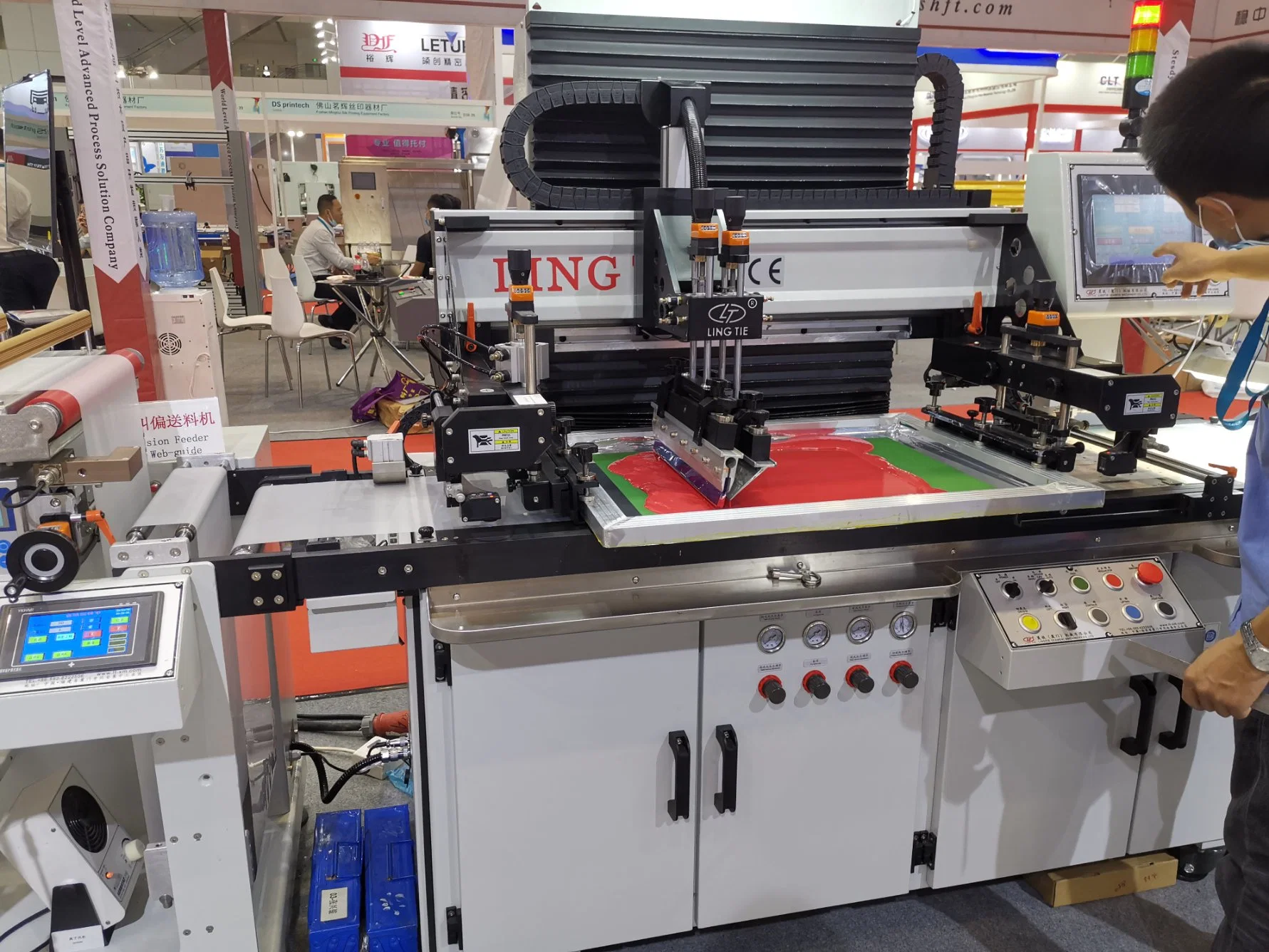

              Vacuum table              : fix the PET film during printing process. Automatic register system for screen alignment.




              Automatic Roll to Roll Silk Screen Printing Machine for Nameplate Panel, FPC, IMD, Frid, Heat Transfer Label

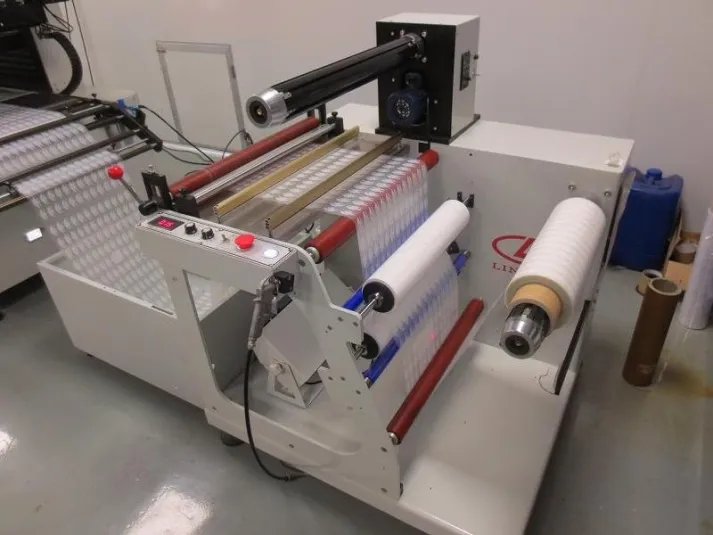

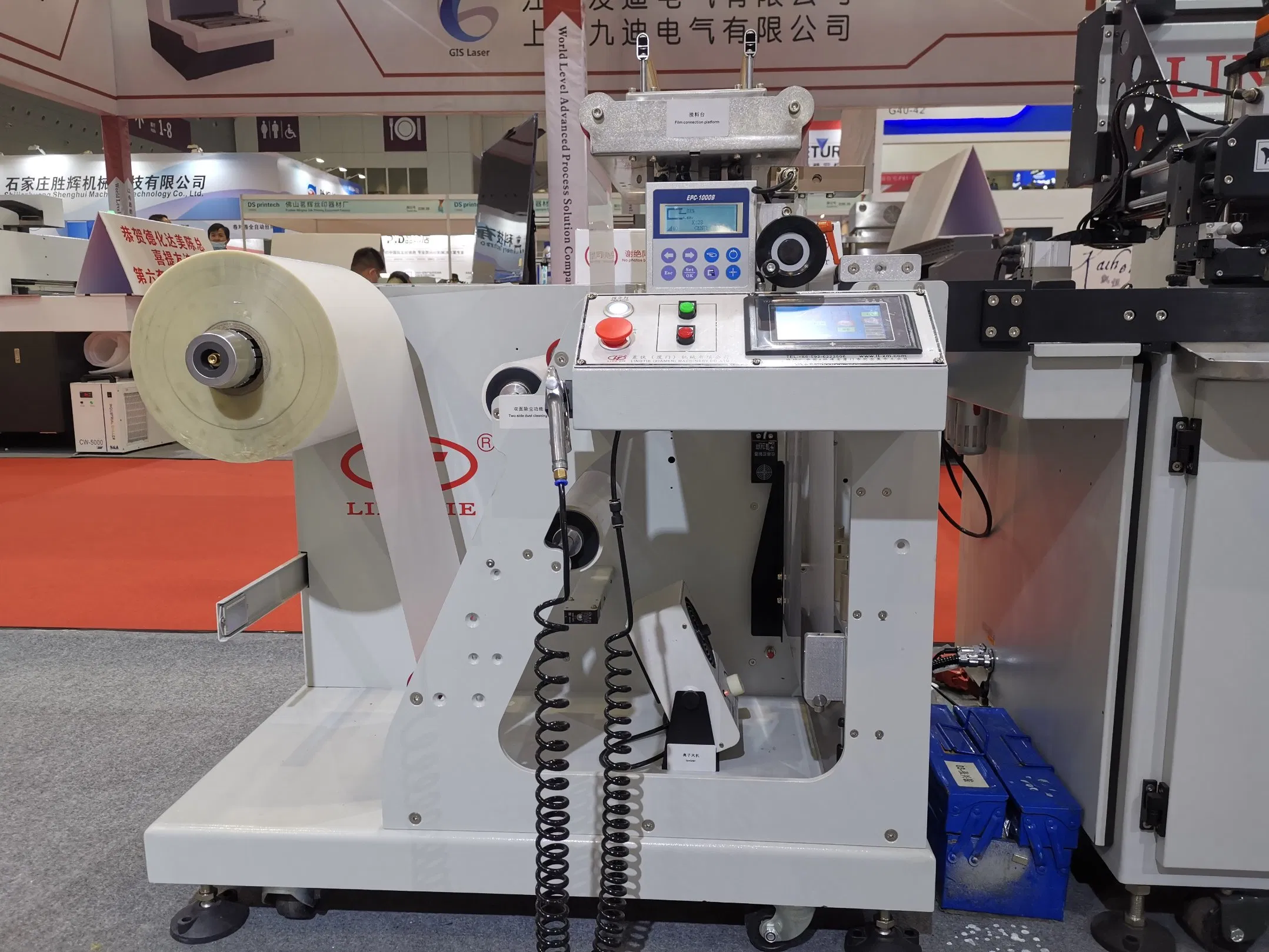

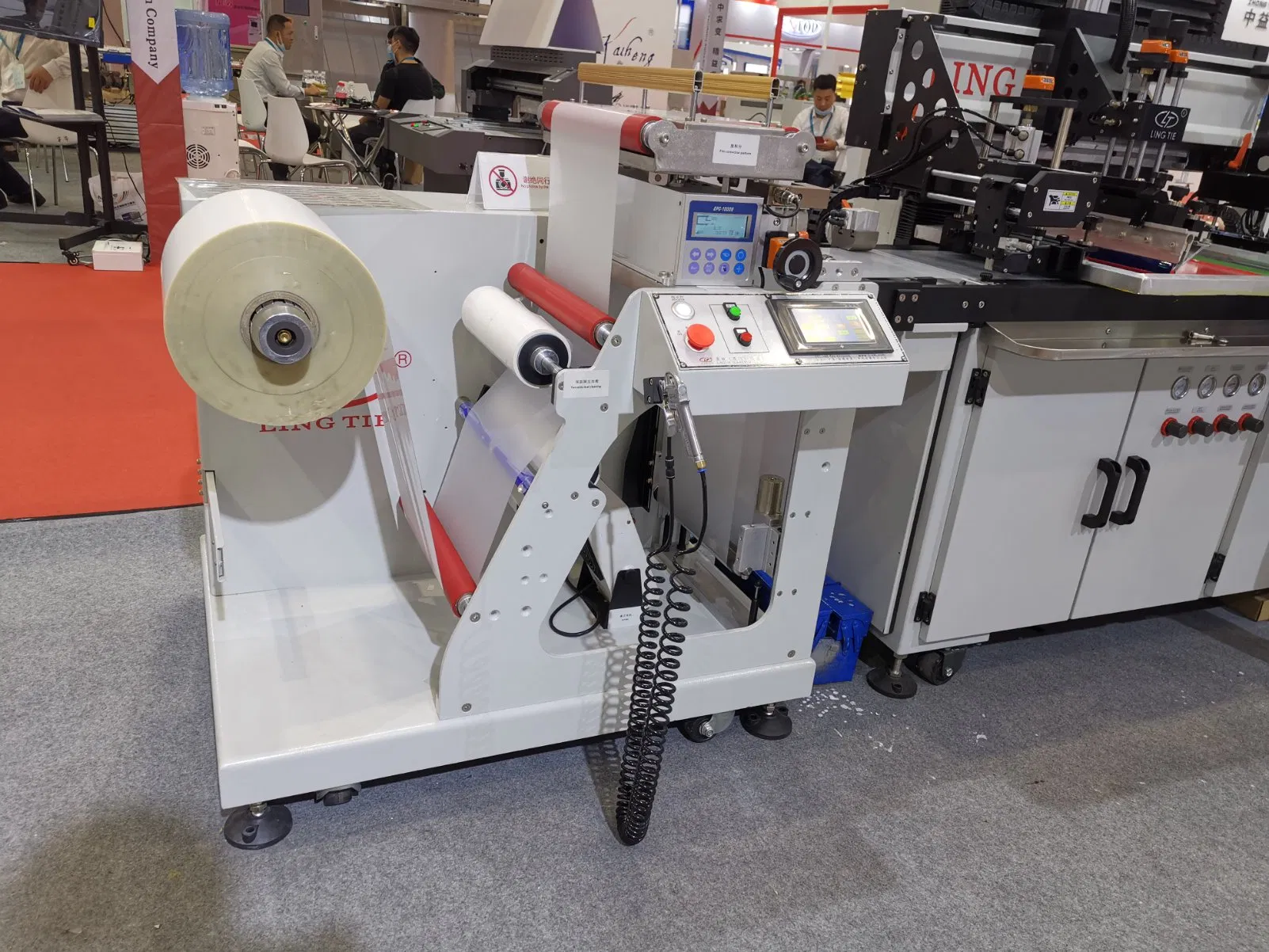

              feeder: dust removing, protect film removing, electrostatic eliminating,etc.
              Automatic Roll to Roll Silk Screen Printing Machine for Nameplate Panel, FPC, IMD, Frid, Heat Transfer Label

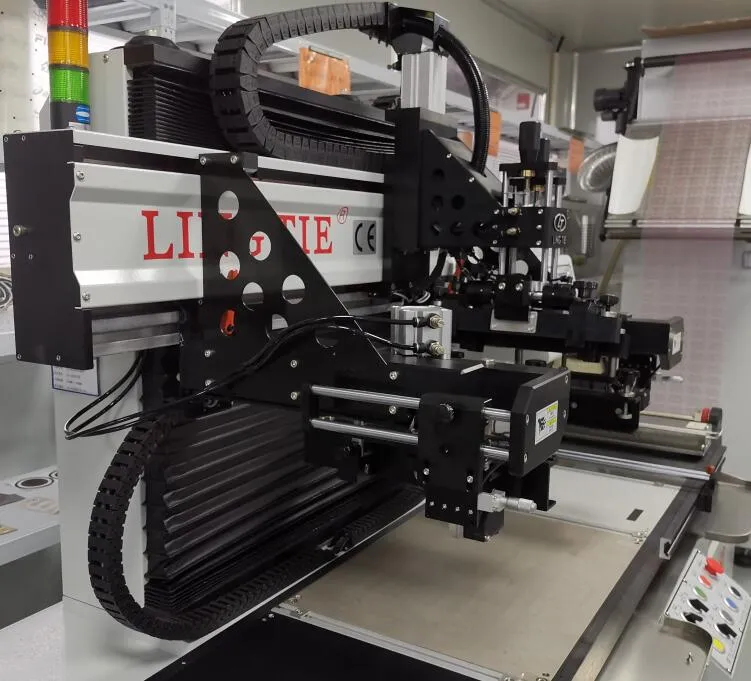

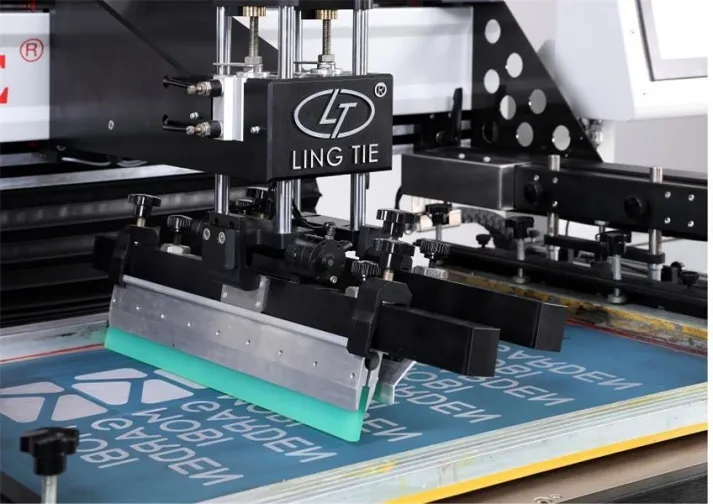

              Print Head: Good stability, ensure long time use of the machine.
              Automatic Roll to Roll Silk Screen Printing Machine for Nameplate Panel, FPC, IMD, Frid, Heat Transfer Label

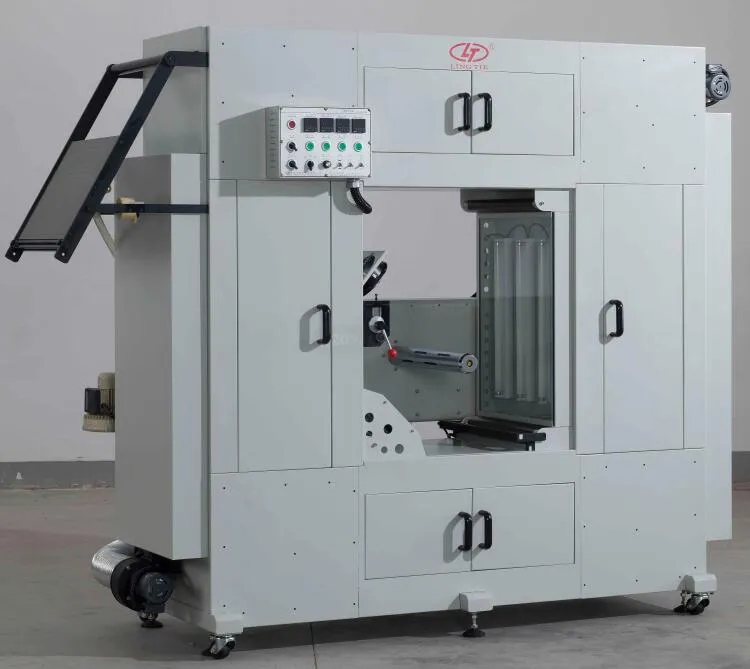

              Hot Air Dryer: 30m, 60m, 80m inner loop hot air dryer for optional.
              Automatic Roll to Roll Silk Screen Printing Machine for Nameplate Panel, FPC, IMD, Frid, Heat Transfer Label
