Cheapest Price SMT Stencil Printer with CE Certificate
JAGUAR Semi-auto older Paste Printer (S1200)Feature:1.Using precision guide rail and the import motor to drive the blade seat conversion, printing, and high accuracy.2.Printing scraper can rotate 45 degrees fixed up, easy printing stencil and squeegee cleaning and replacement.3.Block can be adjusted......
Send Inquiry
Product Description

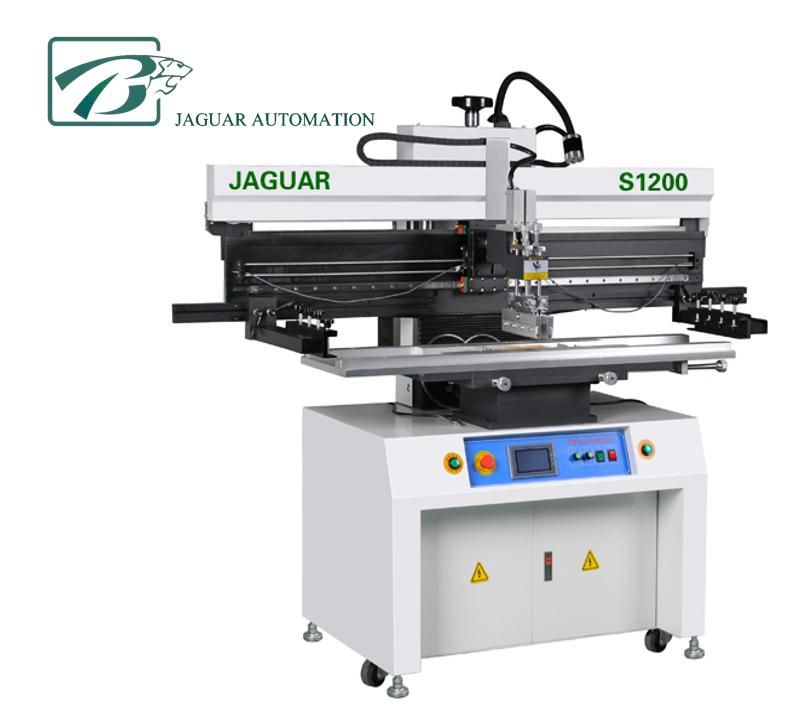

JAGUAR Semi-auto older Paste Printer (S1200)
Feature:
1.Using precision guide rail and the import motor to drive the blade seat conversion, printing, and high accuracy.
2.Printing scraper can rotate 45 degrees fixed up, easy printing stencil and squeegee cleaning and replacement.
3.Block can be adjusted before and after the blade, to choose the right printing position.
4.Combined with a fixed groove printing platen and PIN, easy installation and adjustment, for single, double sided printing.
5.School Edition way to move a steel mesh, combined with printed (PCB), X, Y, Z. Convenient fine adjustment.
6.Can be set to one-way and two-way, a variety of printing methods.
7.With the automatic counting function to facilitate the production of output statistics.
8.Adjustable blade angle, steel blade, rubber scraper are suitable.

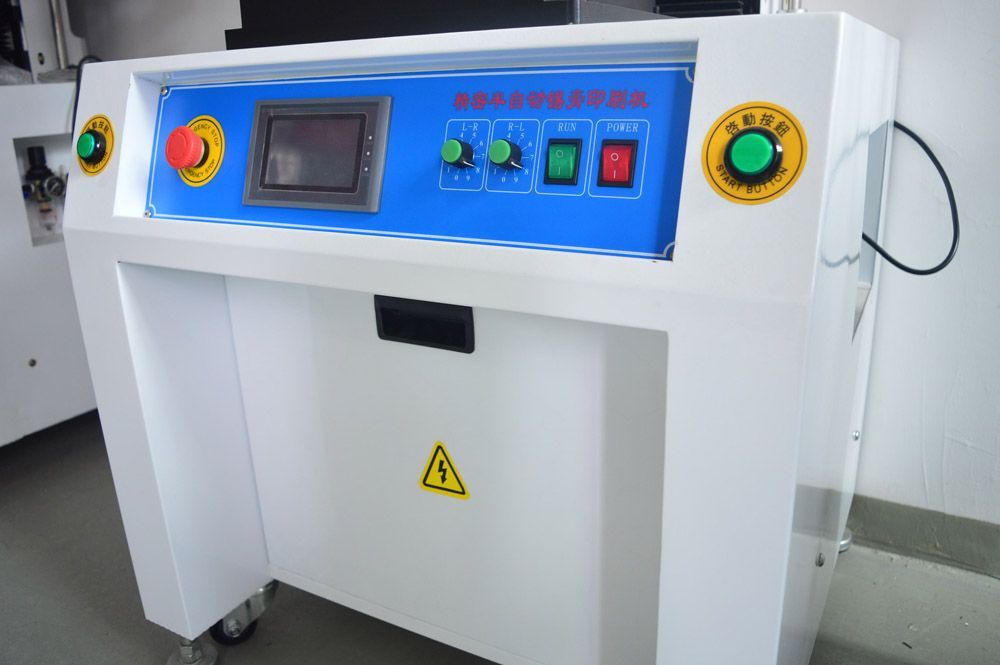

9.Touch screen with a screen saver function, the time can be adjusted to protect the touch-screen life.
10.Printing speed display, can be adjusted.
Specifications:
| Model | JAGUAR S1200 |
| Dimensions | 2000×720×1650mm |
| Platform size | 300×1250mm |
| PCB size | 300×1200mm |
| Printing speed | 0-8000mm/min |
| PCB thickness | 0.2-2.0mm |
| PCB fine tuning range | Front/side±10mm |
| Power supply | 1PAC220V 50/60HZ |
| Platform height | 850±20mm |
| Repeating precision | ±0.01mm |
| Printing Accuracy | ±0.02mm |
| Positioning mode | Outside/Reference hole |
| Weight | Approx.380Kg |
About Us:
Shenzhen Jaguar Automation Equipment Co., Ltd. is a professional Reflow Oven and Wave Soldering Manufacturer in Shenzhen, China. We focus on SMT and THT Soldering technology for more than 10 years, and our engineers have more than 20 years experience.
We are certified National High-tech Enterprise since 2017, integrated R&D, manufacture, service, trade, all our products have CE certification, our products are widely recognized at our domestic market as well as oversea market.
Our goal is to provide customers with the best service possible and to produce excellent quality products that will meet or exceed your expectations.

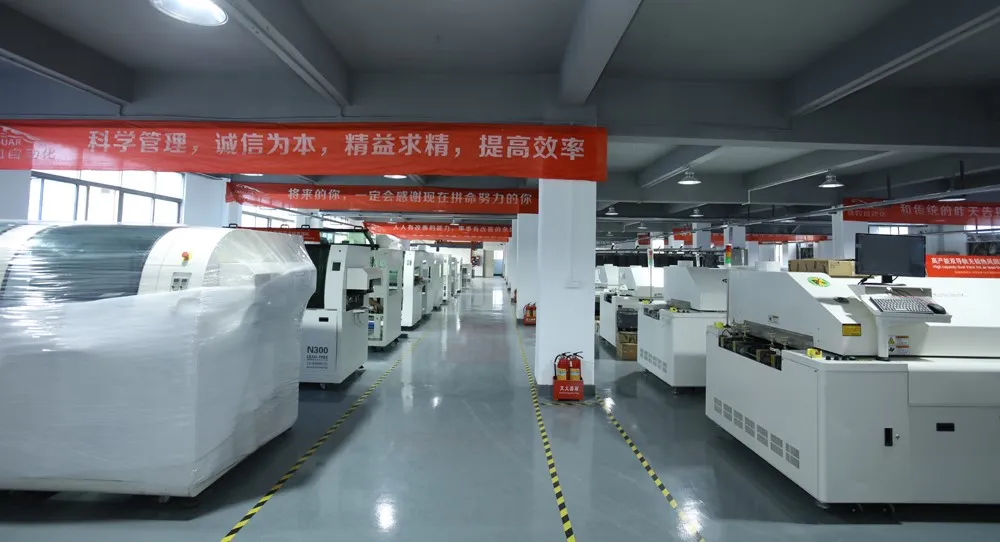

Our Factory:

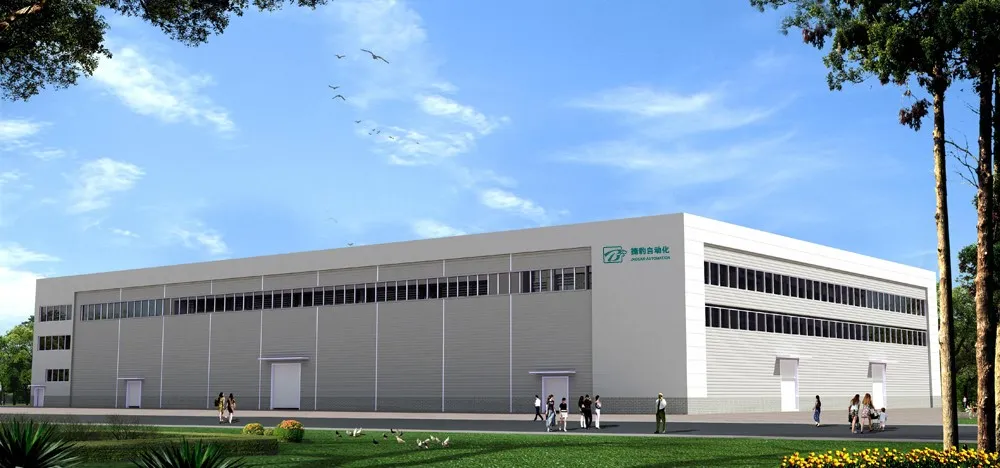

More than 6000 square meters production plant.
More than 20 years experience in SMT automation equipment manufacturing. More than 50 peoples production team, among them
36 mechanical assembly technicians
12 electrical engineers
4 professional QC
Successful Experience:
JAGUAR's customer in 35 countries around the world
1. We have been helping customers to build a lot of new factories around the world.
2. Training more than 600 experts and technician for customers.
3. Became the most reliable Chinese partner for you.

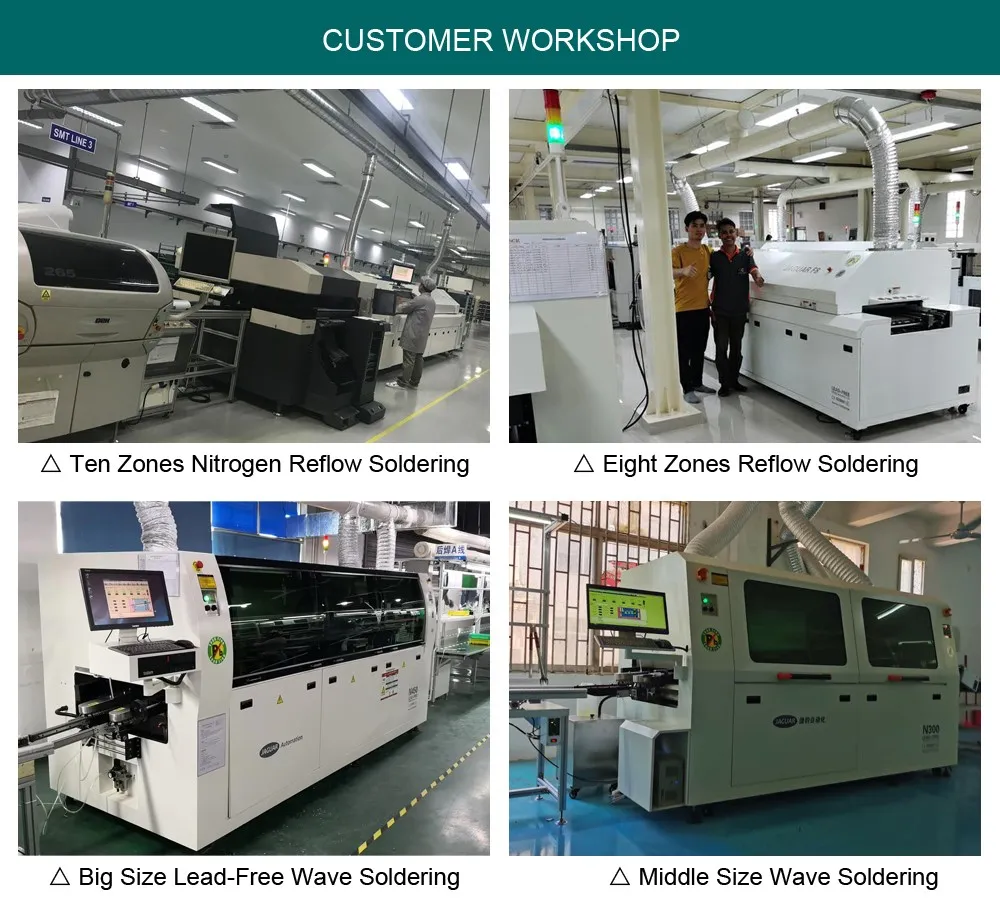

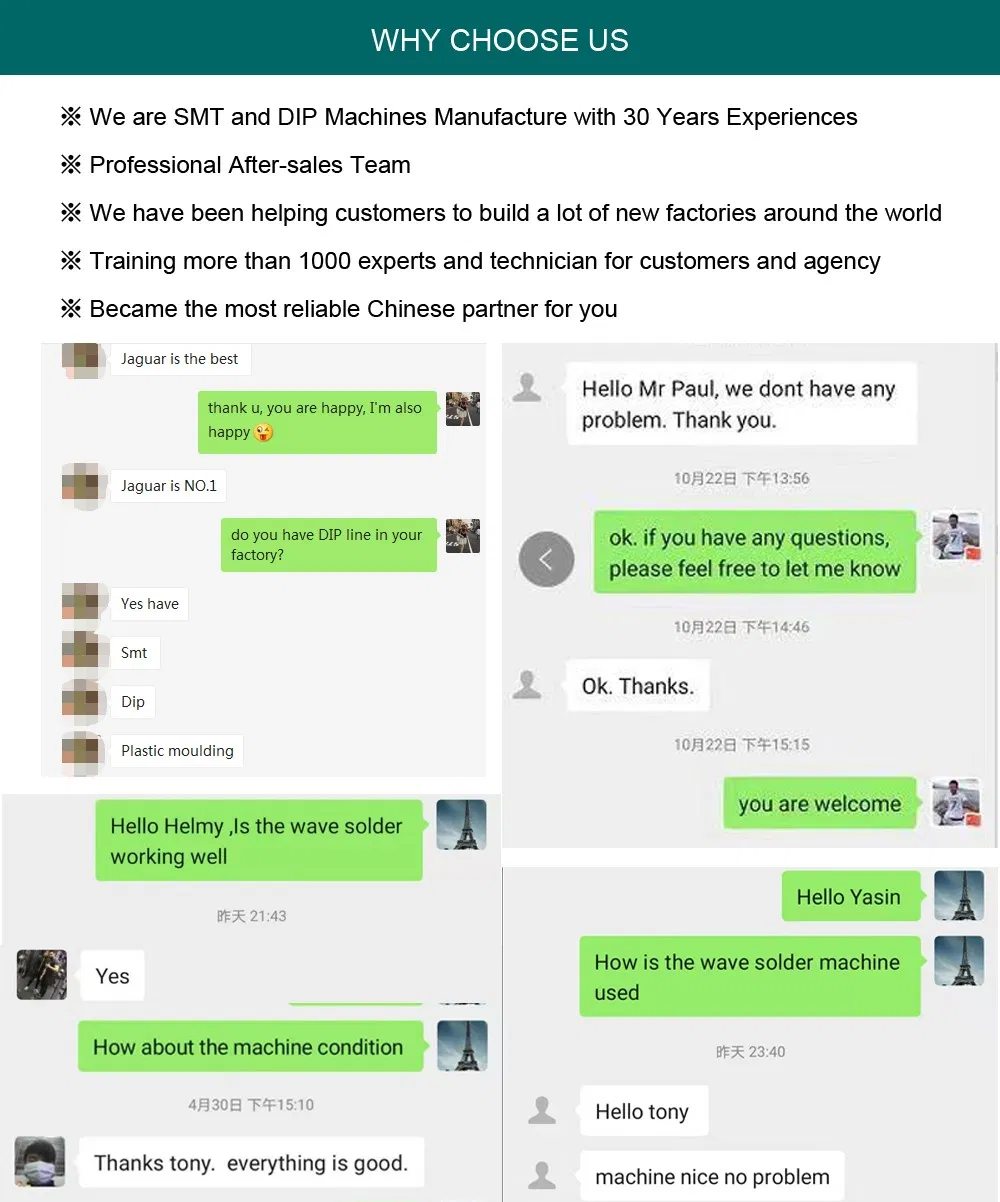

Customer and Feedback:
Exhibitions:
Keep attending more than 10 exhibitions and forums each year.
The annual NEPCON and Electronica exhibitions are our regular event.
Participate in 3-5 overseas famous exhibitions regularly every year, like:
IPC Expo in San Diego, US
Electronica in Delhi, India
Electron Tech Expo in Mosco, Russia
WIN Exhibition in Istanbul, Turkey
Our Certificates:
We passed ISO certifications
We are IPC member company
We are National High-tech Enterprise
All the machines have CE and ROHS certifications
Packing and shipping:
What we can do for you?
1. We provide full SMT and THT solution for you
2. We provide core technology with our equipments
3. We provide the most professional tech service
4. We have wealthy experience on SMT and THT factory setup
5. We can solve any question about SMT and THT
