Transfer paper screen printing machine HY-H56

Product Description

HY-H56 Automatic Screen Pringting Machine

Product Introduction:
A new model that replaces the flat-lift semi-automatic screen printing machine, and realizes automatic feeding, automatic alignment, automatic printing, and automatic reclaiming of automatic screen Printing; touch screen control, simple and easy to learn, reduces labor intensity and technical requirements for operators, and allows the machine to ensure the printing speed and accuracy to achieve More stable printing effect; it has the advantages of automatic machine to save labor and the flexibility of semi-automatic machine in small batches; it can continue to use the original semi-automatic machine screen Version to reduce cost input.
The printing speed is 900 sheets/hour, and the repeat positioning accuracy is less than 0.5mm. It can be equipped with tunnel dryer, UV curing machine, and paper clip dryer.

Product specifications and technical parameters:

Maximum printing area(mm)	500*650 mm
Repeatability	<0.05
Workbench size(mm)	590*860 mm
Maximum frame size(mm)	750*1030 mm
Print thickness(mm)	0-1mm
Maximum printing speed(mm/h)	900 pcs/h
Squeegeen skewness	0~30^.
Screen vertical and horizonal adjustment	+- 10mm
Dimensions LWH (mm)	210012001650 mm
Machine weight(kg)	800 mm
Power supply	3N-50HZ 380V 3KW
Air source pressure (Mpa)	0.4~0.6 Mpa

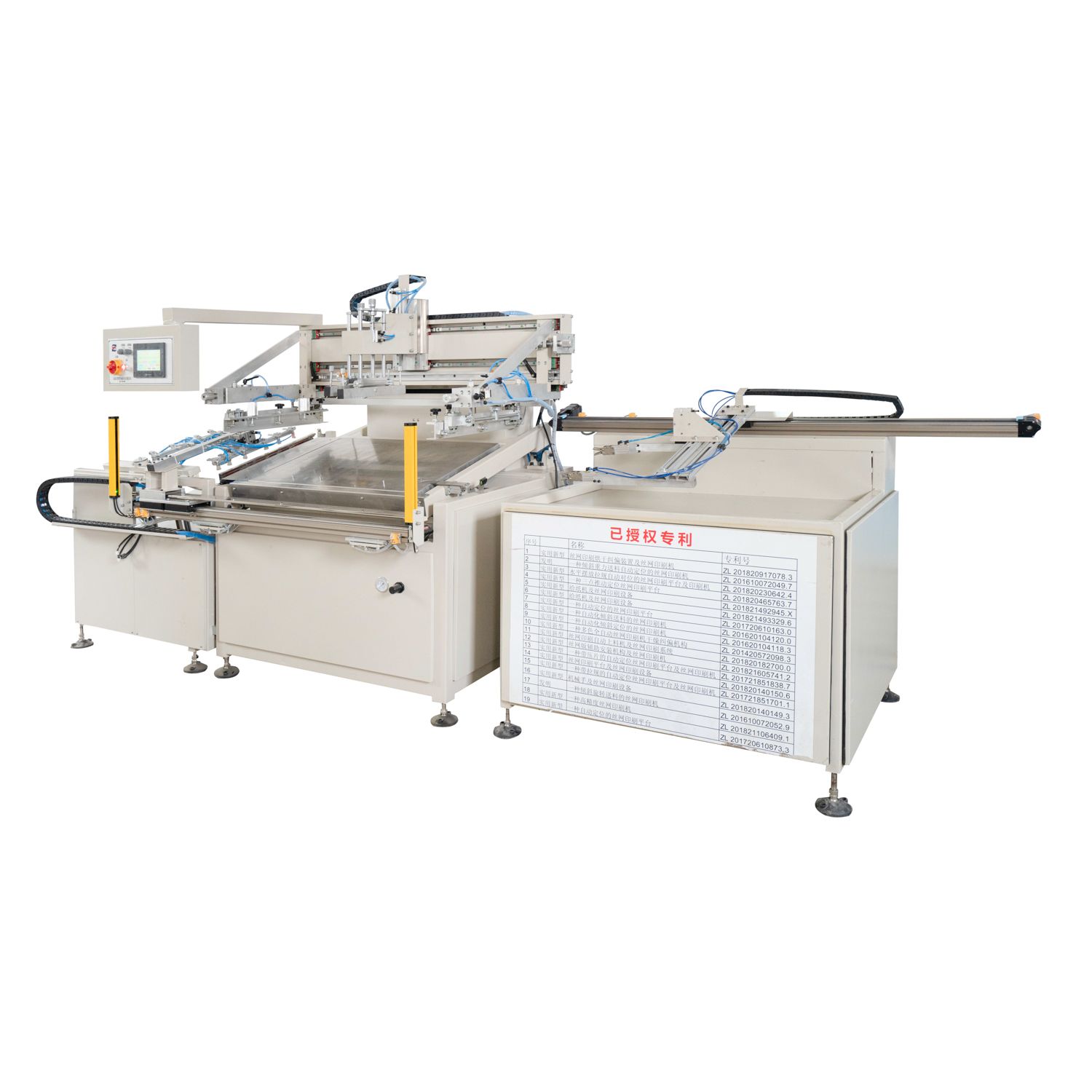

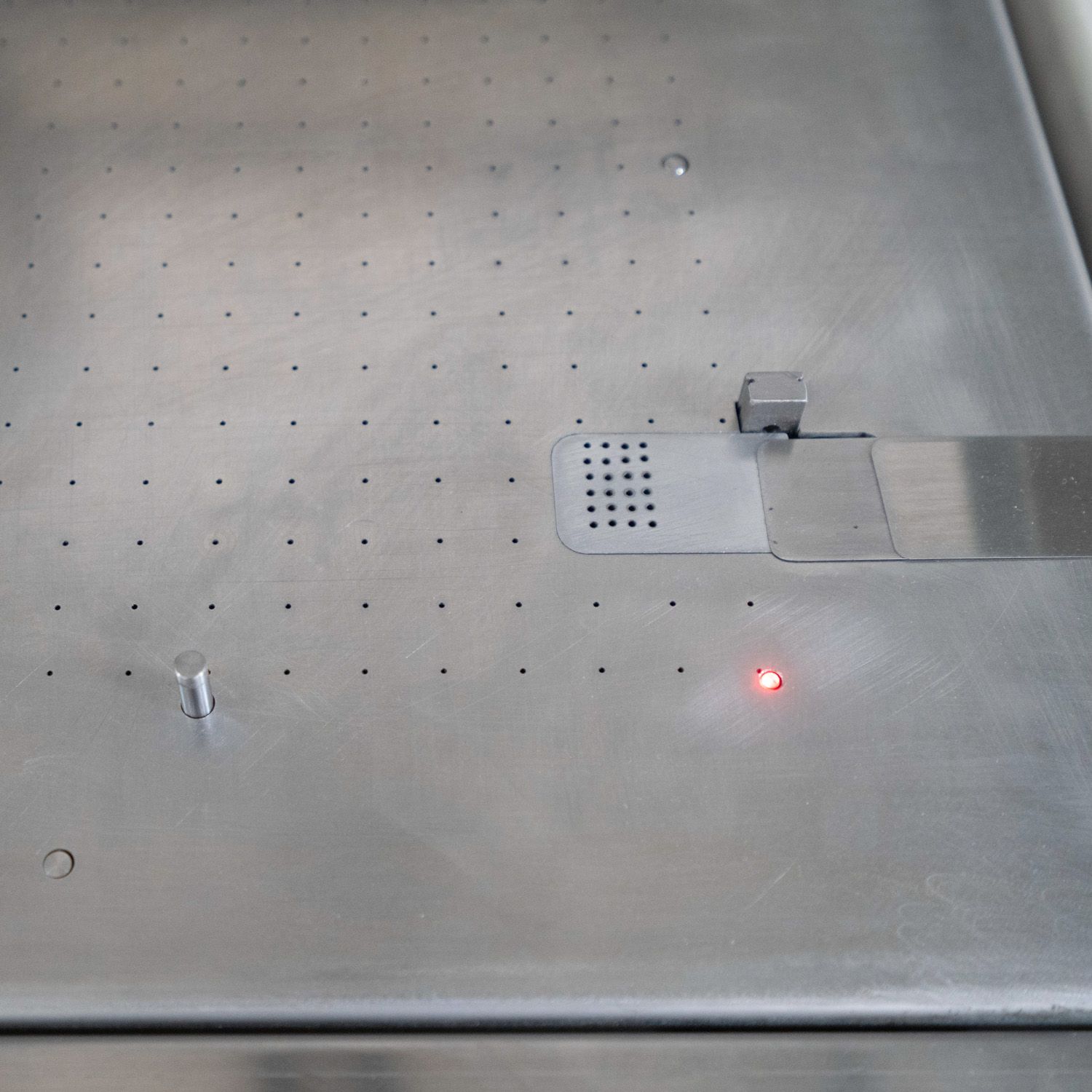

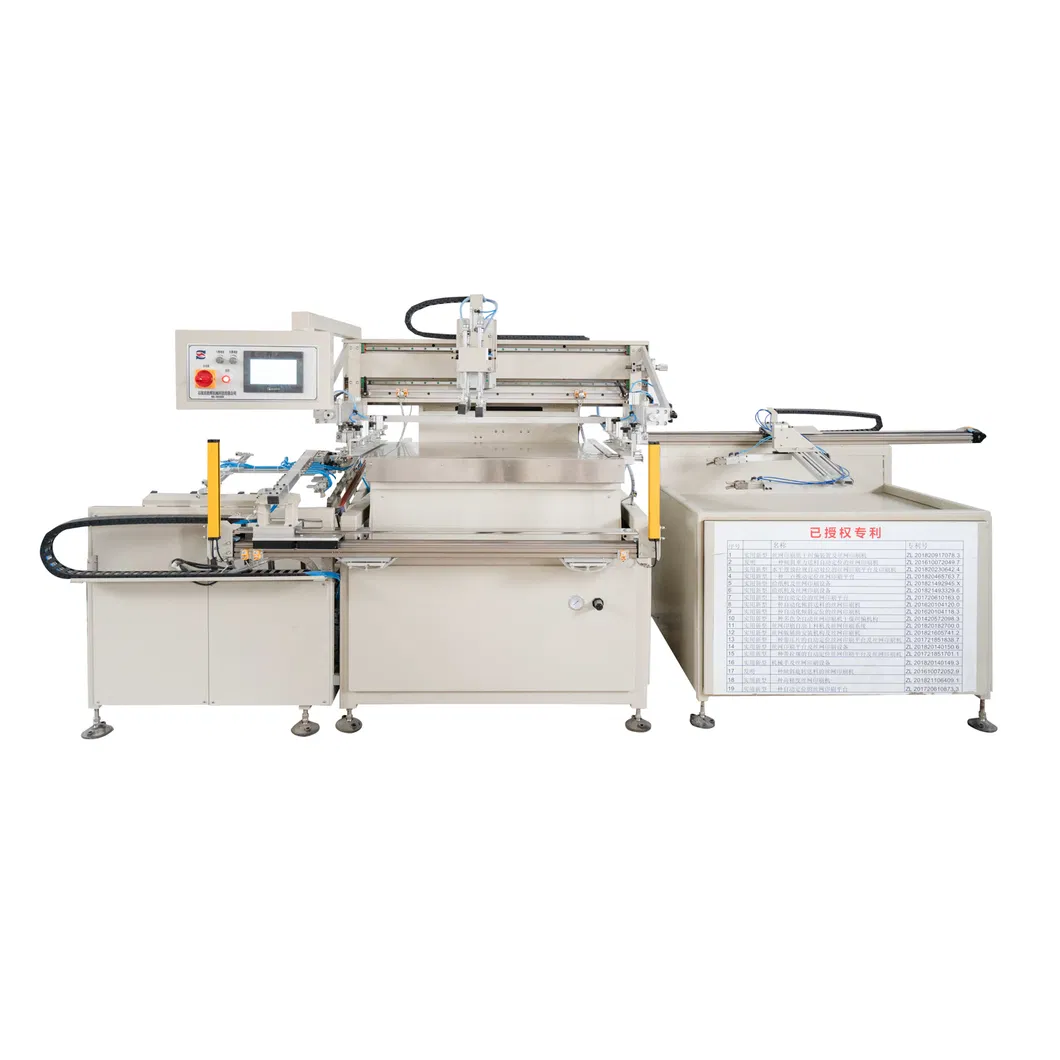

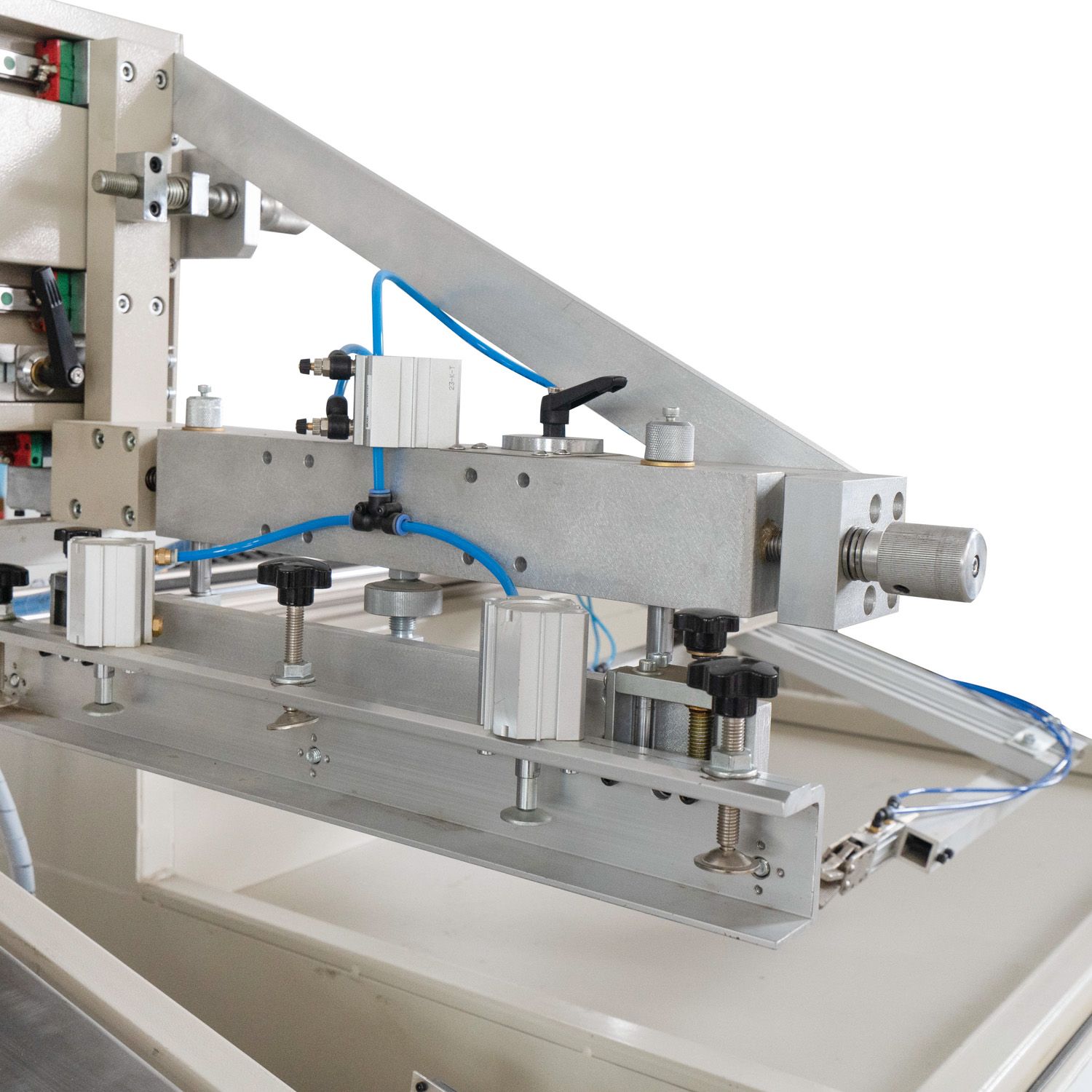

Machine photos:

Transfer paper screen printing machine HY-H56

Automatic screen printing machine process:

Raw material---automatic feeder---automatic printing machine---automatic oven---automatic rewinding---die cutting, cutting/cutting---finished product.

Automatic feeding, printing, drying, and receiving, one-stop computer program control is completed, and the degree of automation is extremely high. Save labor and greatly improve production efficiency.

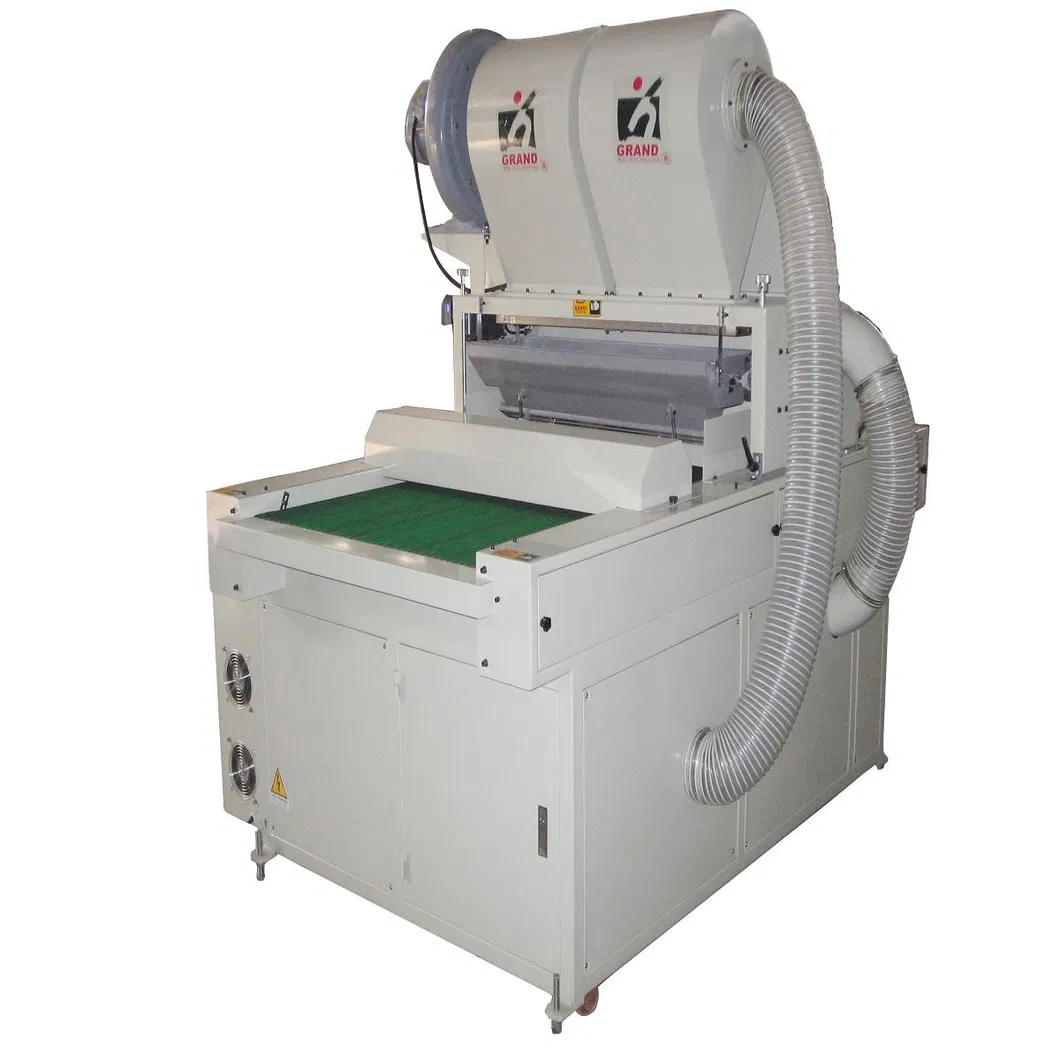

Duster
ZSCT---II Thermoplastic Poly Urethane machine is after-printing corollary equipment, which substitutes for rendition product like logo, ironing, wallpaper, paper, and film. It can powder and Recovery of residual powder as well. It has the advantage of easy to use, flexible adjustment, high efficiency, and no just pollution. Transmission parts in the machine all can be adjusted, and connect to auto screen printing machine or gluing machine. It works well even with those paper and EVA which has high demand in surface. If so desired, it can connect directly to Drying equipment or UV Light curing equipment.

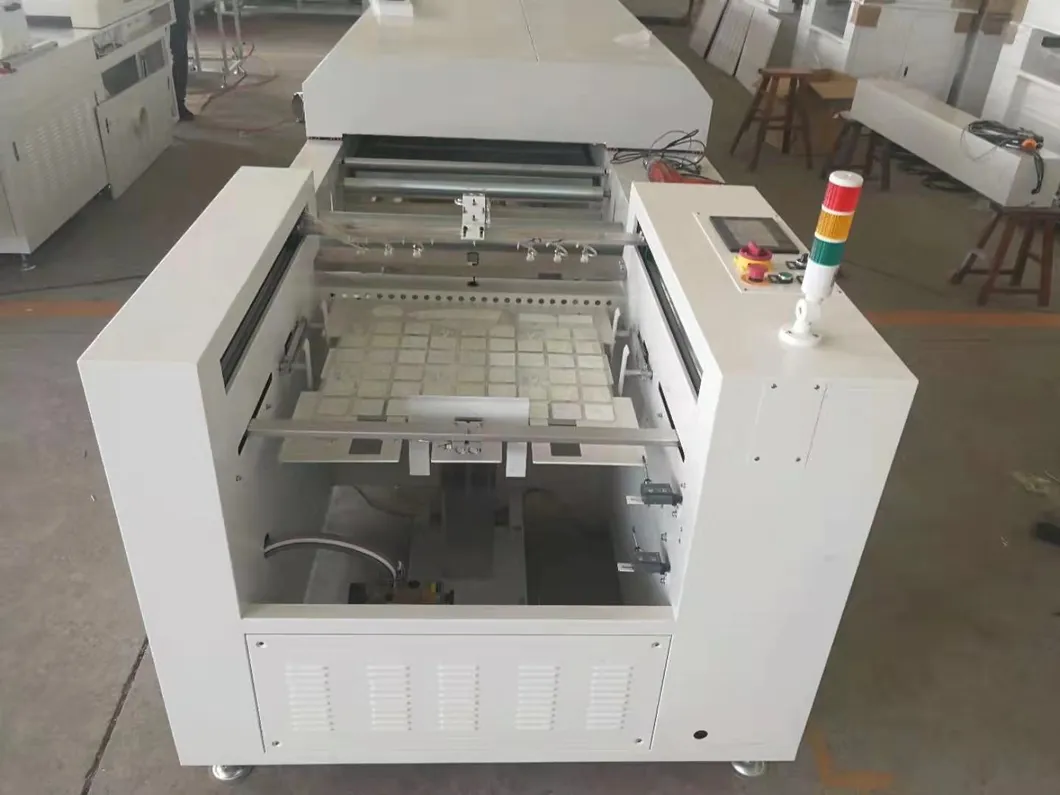

Rongda paper collector

inted Samples:

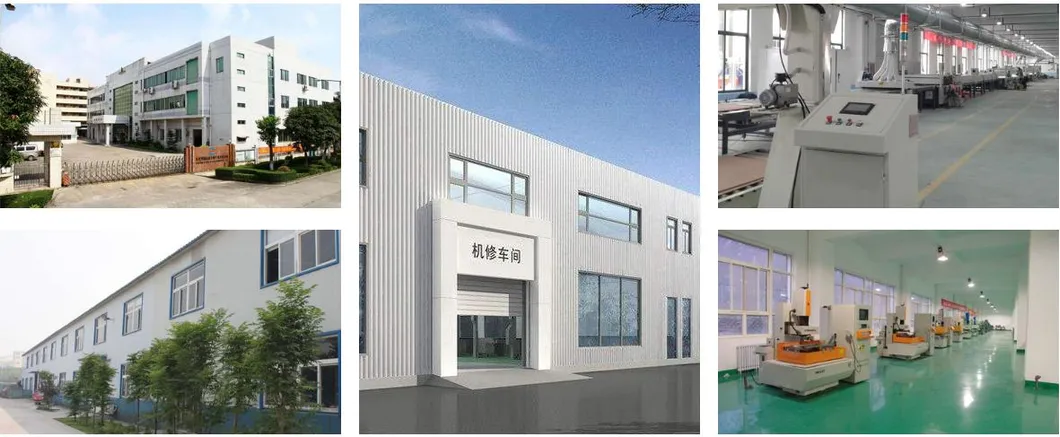

About us :

Shijiazhuang Shenghui Machinery Technology Co., Ltd. is an enterprise specializing in the production of flat screen printing equipment. The company integrates research, design, production, development, and sales. With the tenet of "practicality and innovation" and the principle of "integrity and pragmatism", the company serves customers with sophisticated design and perfect technical support.

Transfer paper screen printing machine HY-H56

Packging:

Transport:

Transfer paper screen printing machine HY-H56

FAQ:

Q: How to get a quotation?
A: Please send us an inquiry directly. We need to get specific details, such as material, size, color,
thickness, quantity, etc.

Q: Are you a factory or trading company?
A: We are a professional manufacturing factory specialize in printing equipment. Set research, design,
production, development, sales in one, to "practical, innovative" for the purpose, to "integrity,
pragmatic" as the principle, with exquisite design and perfect technical support to serve the majority
of customers.

Q:What's your MOQ?
A: One set.

Q:What`s the price term and payment method?
A:We usually use FOB,CIF
Payment method : 100% advance payment by T/T after contract signed,Western Union, or other payment method.

Q:Do you provide samples?
A:No, because the machine is too big and too heavy,so no samples are provided.
