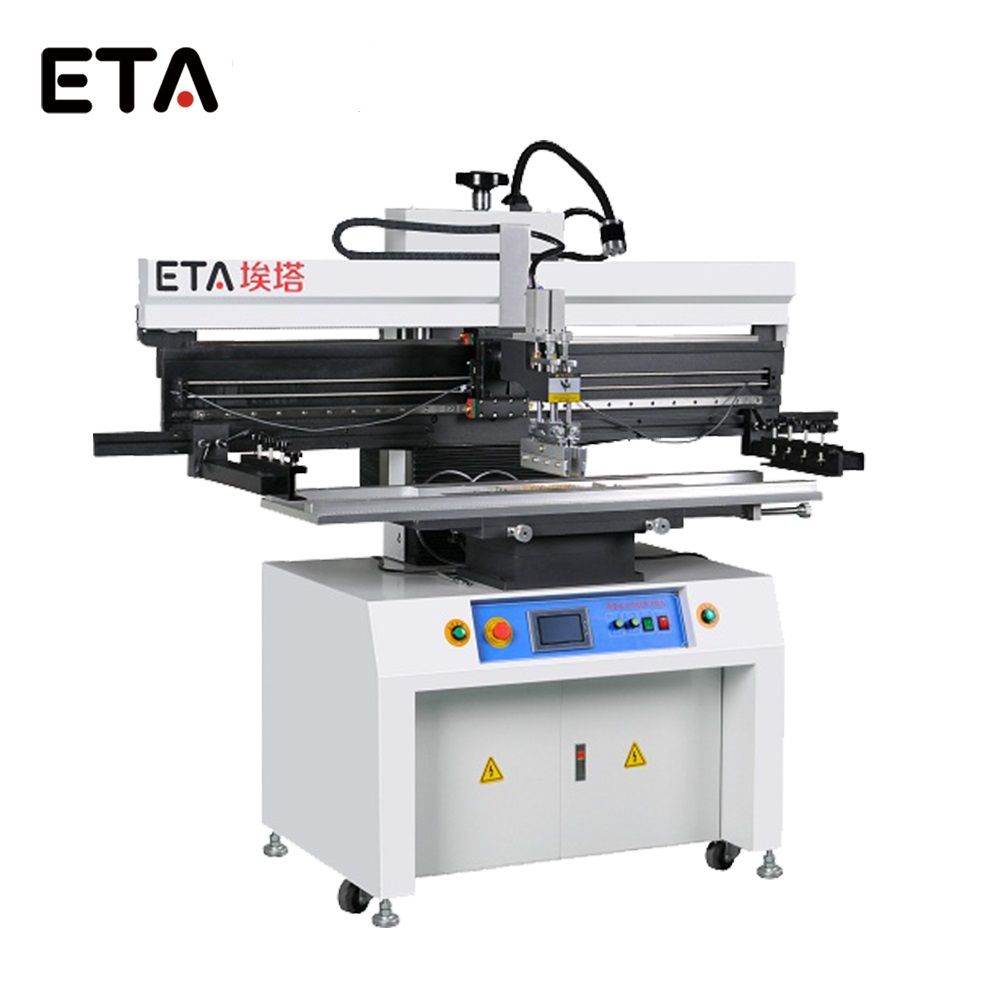

Semi-Auto Long Board PCB Solder Paste Printer for Printing PCB
Introduction:Using linear guide-ways,matching motor drive speed , ensure the printing stability and precision.Blade pressure and printing speed is adjustable,precision pressure gauge, speed controller display.Suspension blade system makes printing more evenly.Modular universal bench, thimble random ......
Send Inquiry
Product Description
Introduction:
- Using linear guide-ways,matching motor drive speed , ensure the printing stability and precision.
- Blade pressure and printing speed is adjustable,precision pressure gauge, speed controller display.
- Suspension blade system makes printing more evenly.
- Modular universal bench, thimble random placement , easy conversion. 5.With alignment device for PCB board and frame
- Work with both single-sided and double-sided PCB boards.
- Steel frame arms can be adjusted for different size ranges from 370 * 470mm to 1500 * 350mm . 8.Auto printing , stable and efficient printing quality.
Specification:
| Semi-auto Stencil Printer | P3 | P6 | P12 |
| Accuracy | +/- 0.05mm | +/- 0.05mm | +/- 0.05mm |
| PCB Size | 300 x 350 mm | 600 x 350 mm | 1200 x 350 mm |
| Platform size | 320 x 400 mm | 700 x 400 mm | 1350 x 400 mm |
| Stencil Size(mm) | 370*470,550*650 | 370*470,550*650 | 370*470,550*650,1500*650 |
| PCB Thickness | 0.2 - 6 mm | 0.2 - 6 mm | 0.2 - 6 mm |
| Stencil Positioning | Manual | Manual | Manual |
| Cycle Time | < 10 Sec. | < 10 Sec. | < 12 Sec. |
| Power Consumption | 200 W | 200 W | 200 W |
| Power Supply | 1 -PH, 220VAC 50/60HZ | 1 -PH, 220VAC 50/60HZ | 1 -PH, 220VAC 50/60HZ |
| Air Pressure | 4.5-6 kg/cm | 4.5-6 kg/cm | 4.5-6 kg/cm |
| Squeegee Speed | 0-1500mm/sec | 0-1500mm/sec | 0-1500mm/sec |
| Weight | 280 Kg | 300 Kg | 356 Kg |
| Squeegee Length | 250mm | 250mm | |
| Platform Height | 950mm | 950mm | 950mm |
| Extra Cost | Transportation cost, Customs duty, stamp duty | Transportation cost, Customs duty, stamp duty | Transportation cost, Customs duty, stamp duty |
| Option: Special size can be customized | |||
| Contacts | Shanny Ture |
| Telephone | +86 13670124230 |
| Phone | +0755 27428080 |
Company:
ETA is the leading manufacturer for smt machines and solution with 23 years' experience in China. And we are aslo the only Chinese SMT supplier for Huawei factory in China.
Successful Experience:
Eta's customer in 35 countries around the world

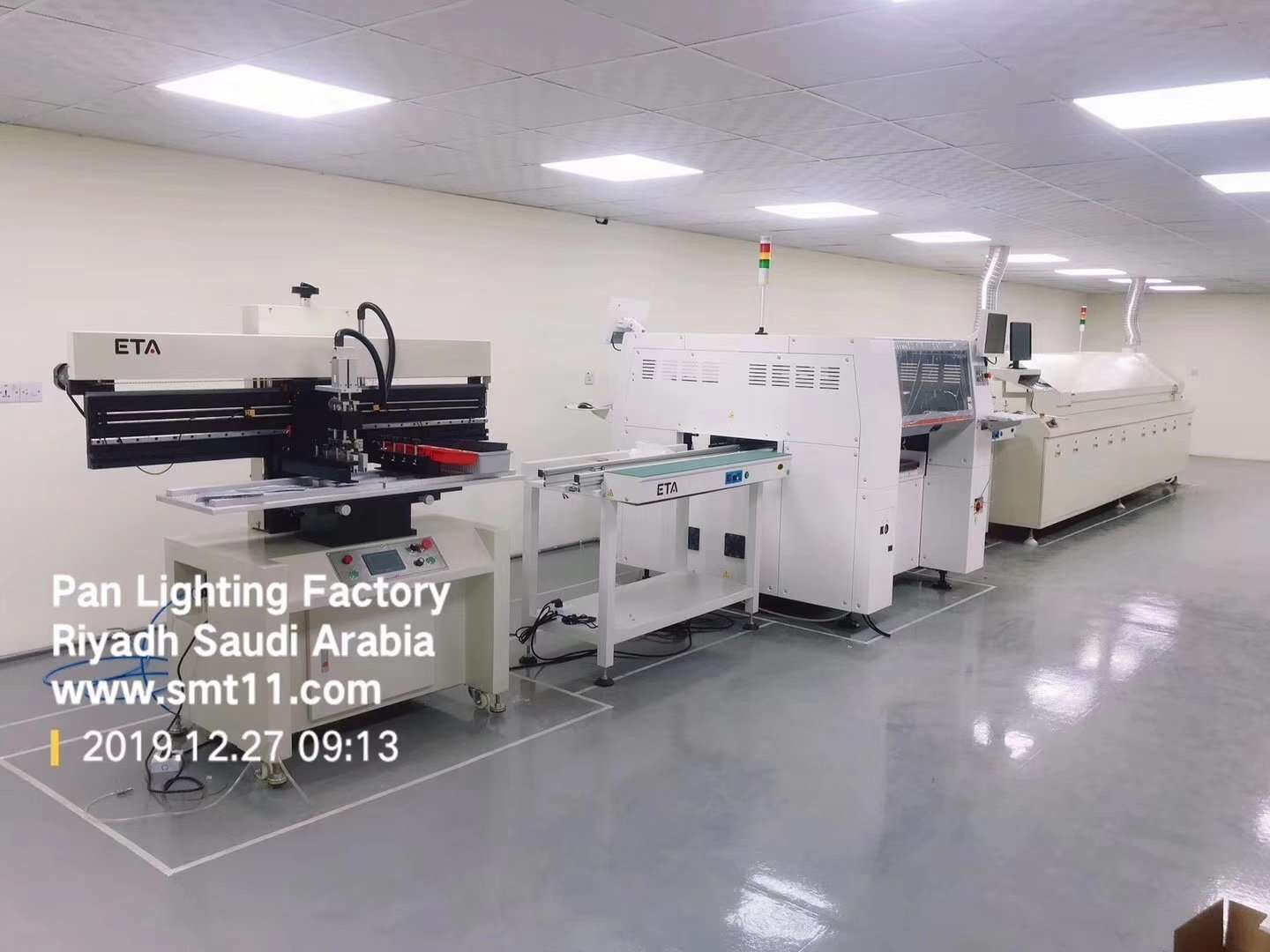

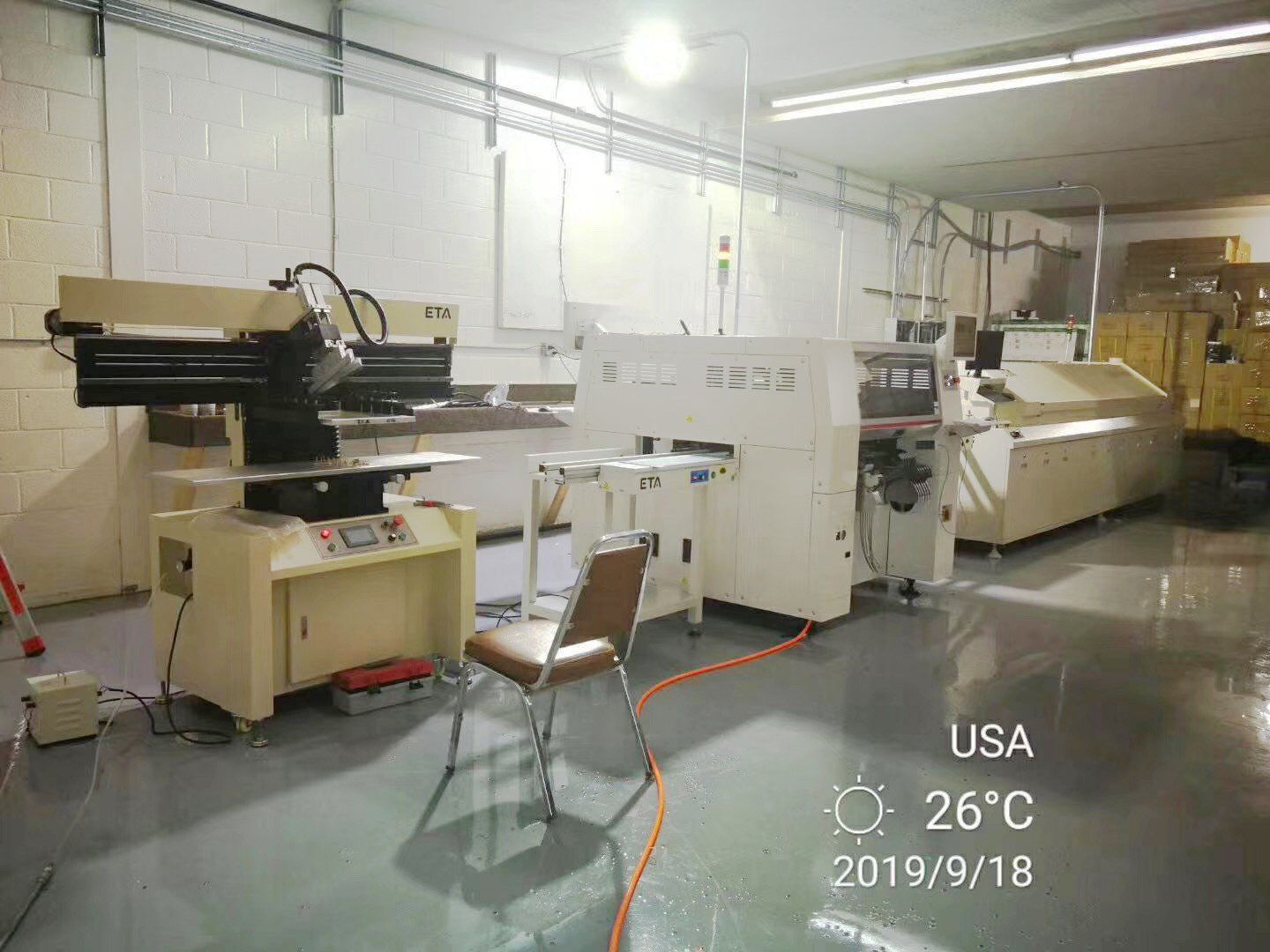

1. We have been helping customers to build a lot of new factories around the world.
2. Training more than 500 experts and technician for customers.
3. Became the most reliable Chinese partner for you.
For SMT factory setup,we can do for you:
1. We provide fulL SMT solution for you
2. We provide core technology with our equipments
3. We provide the most professional tech service
4. We have wealthy experience on SMT factory setup
5. We can solve any question about SMT
Our Service:
Eta's customer in 35 countries around the world
1.We have been helping customers to build a lot of new factories around the world.
2.Training more than 500 experts and technician for customers.
3.Became the most reliable Chinese partner for you.
Packing and Delivery:
Packing Method:
Standard wooden package
Shipping Way:
1. By air, for sample and small package,international express like DHL, UPS, EMS...
2. By sea, for large package and quantity;
3. Other ways as customer requested.
Delivery Time:
35 Days
