HY -Z69 Automatic Heat Transfer Paper Screen Printing Machine for Label Packing Printer Silk Screen Printer Machinery

Product Description

Description:

The new model of the hinged semi-automatic screen printing machine realizes automatic feeding, automatic alignment, automatic printing and automatic screen printing of automatic reclaiming; Chinese human-machine interface is simple and easy to learn, which not only reduces labor intensity and For the technical requirements of the operator, the machine positioning replaces the manual to improve the printing stability; the automatic machine saves the labor advantage and the semi-automatic machine small batch flexibility; the original semi-automatic screen version is used to reduce the cost of replacement.
Printing speed of 900 sheets / hour, repeat positioning accuracy is less than 0.05mm
Fully automatic PLC and touch screen control operation is easy to learn, and can be equipped with tunnel dryer, UV light fixture, paper clip dryer,
Suitable for transfer paper, membrane switch, packaging, signage and other industries.

Printing technical parameters:

Model	HY-Z57	HY-Z69
Max. Printing Size	500×700mm	600×900mm
Printing Speed	900pcs/h	900pcs/h
Max.Screen Frame Size	800×1000mm	900×1200
Print Thickness	0-1mm	0-1mm
Printing Table Size	690×812mm	790×1010mm
Repeated Positioning Accuracy	<0.02mm	<0.02mm
Squeegee Skewness	0-30º	0-30º
Screen Vertical And Horizontal Adjustment	±5mm	±5mm
Power Supply	3N-50Hz 380V 3KW	3N-50Hz 380V 3KW
Air Source Pressure	0.4-0.6MPa	0.4-0.6MPa
Overall Dimensions	L2000×W1500×H1600(mm)	L2300×W1600×H1600(mm)
Weight	600kg	760kg

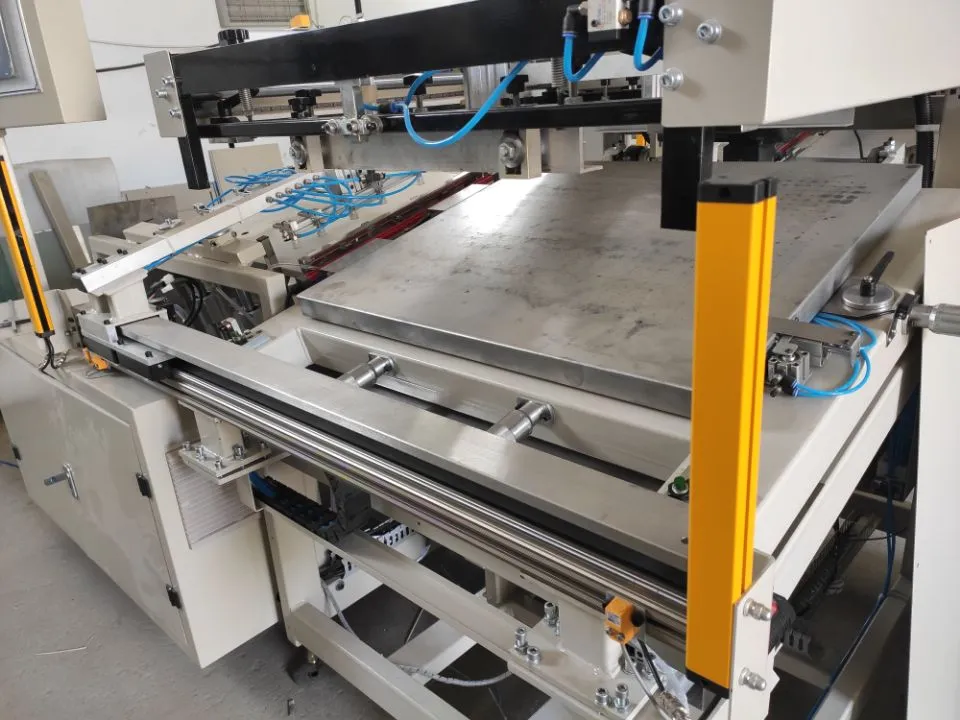

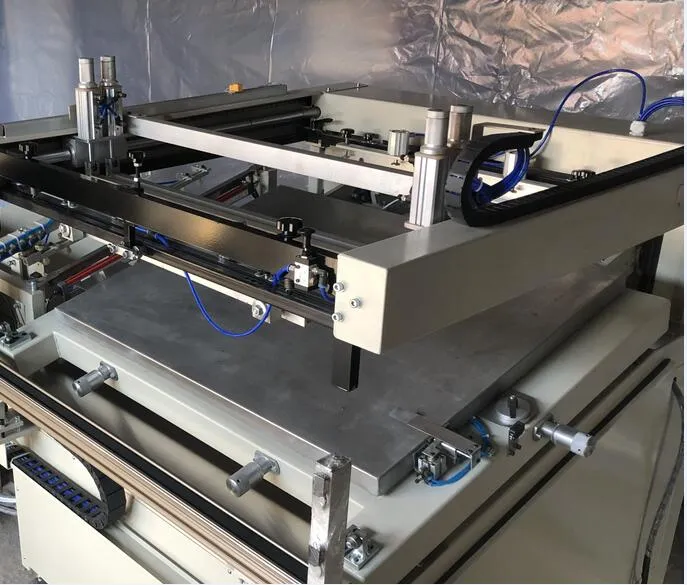

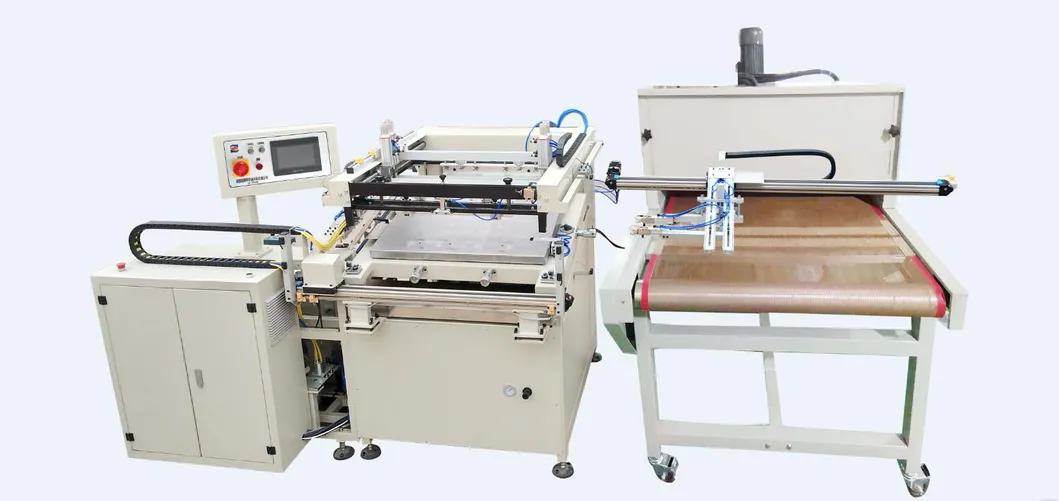

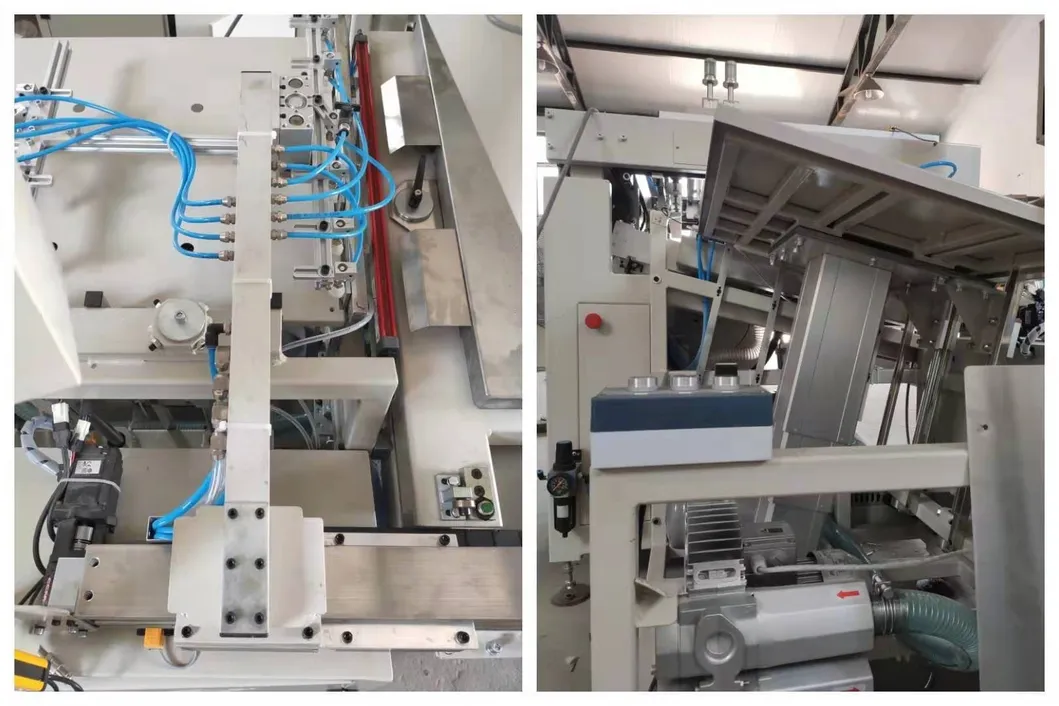

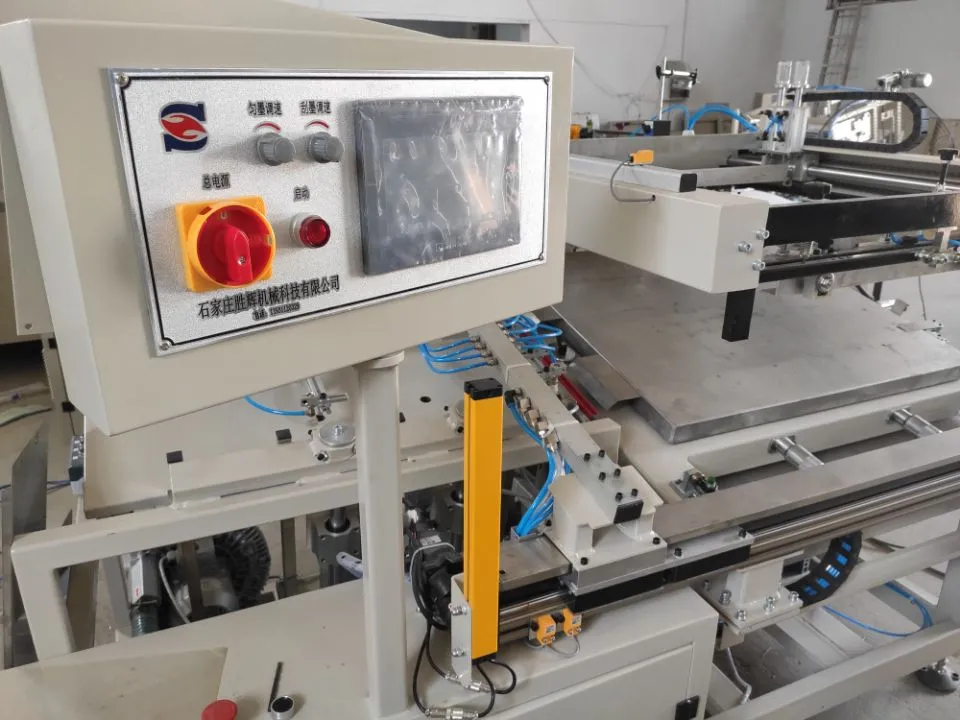

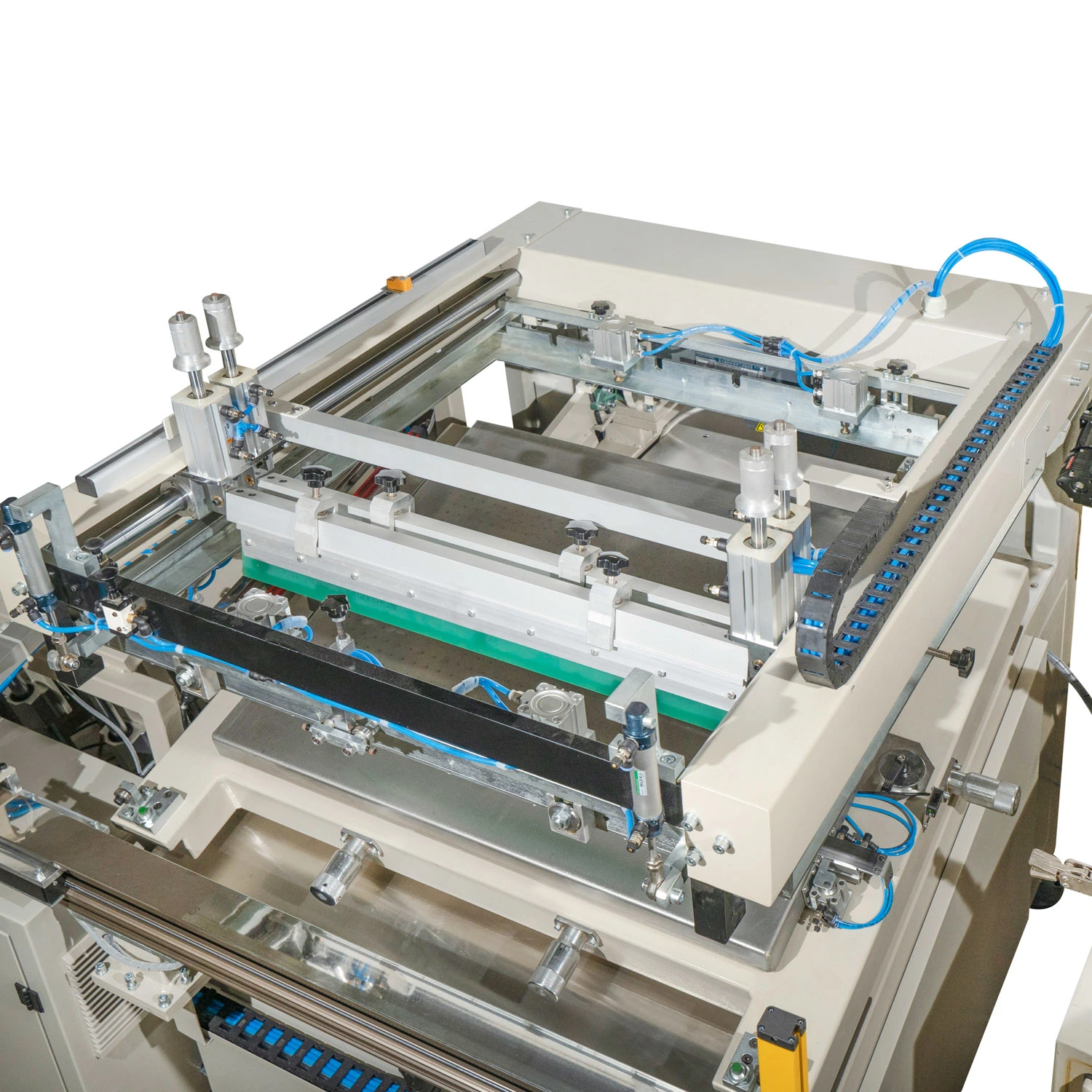

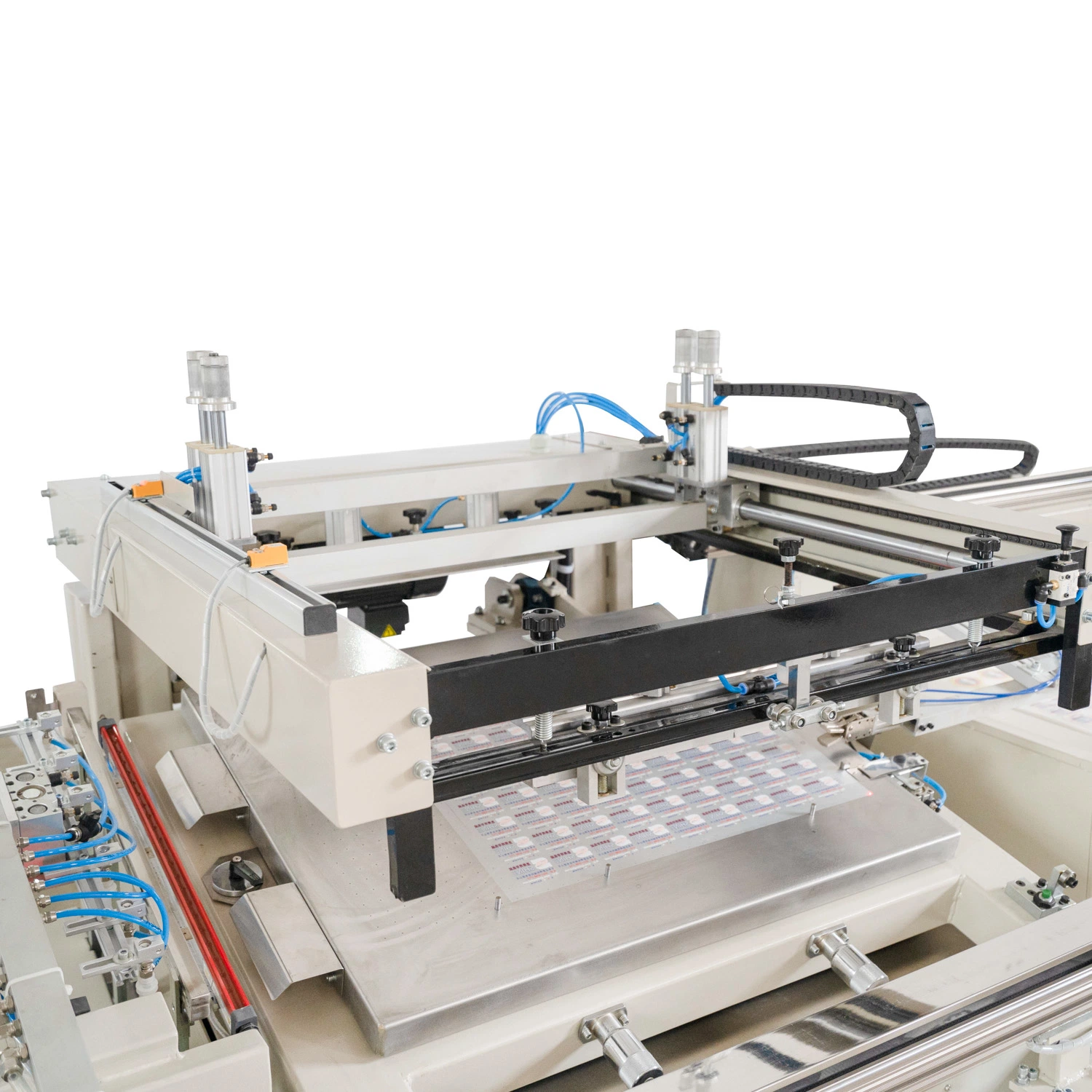

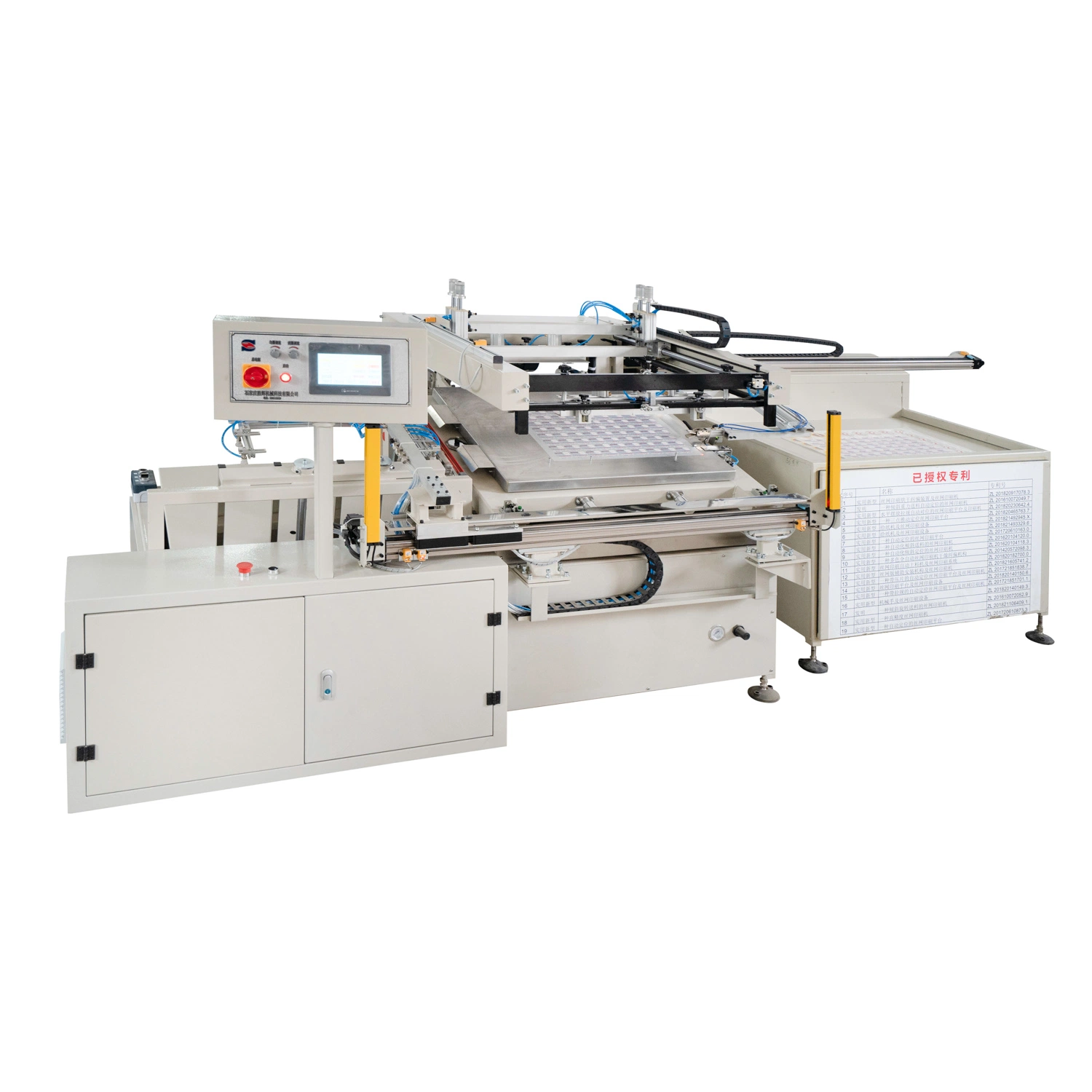

Machine Photos:

HY-Z69 Automatic Heat Transfer Paper Screen Printing Machine for Label Packing Printer Silk Screen Printer Machinery

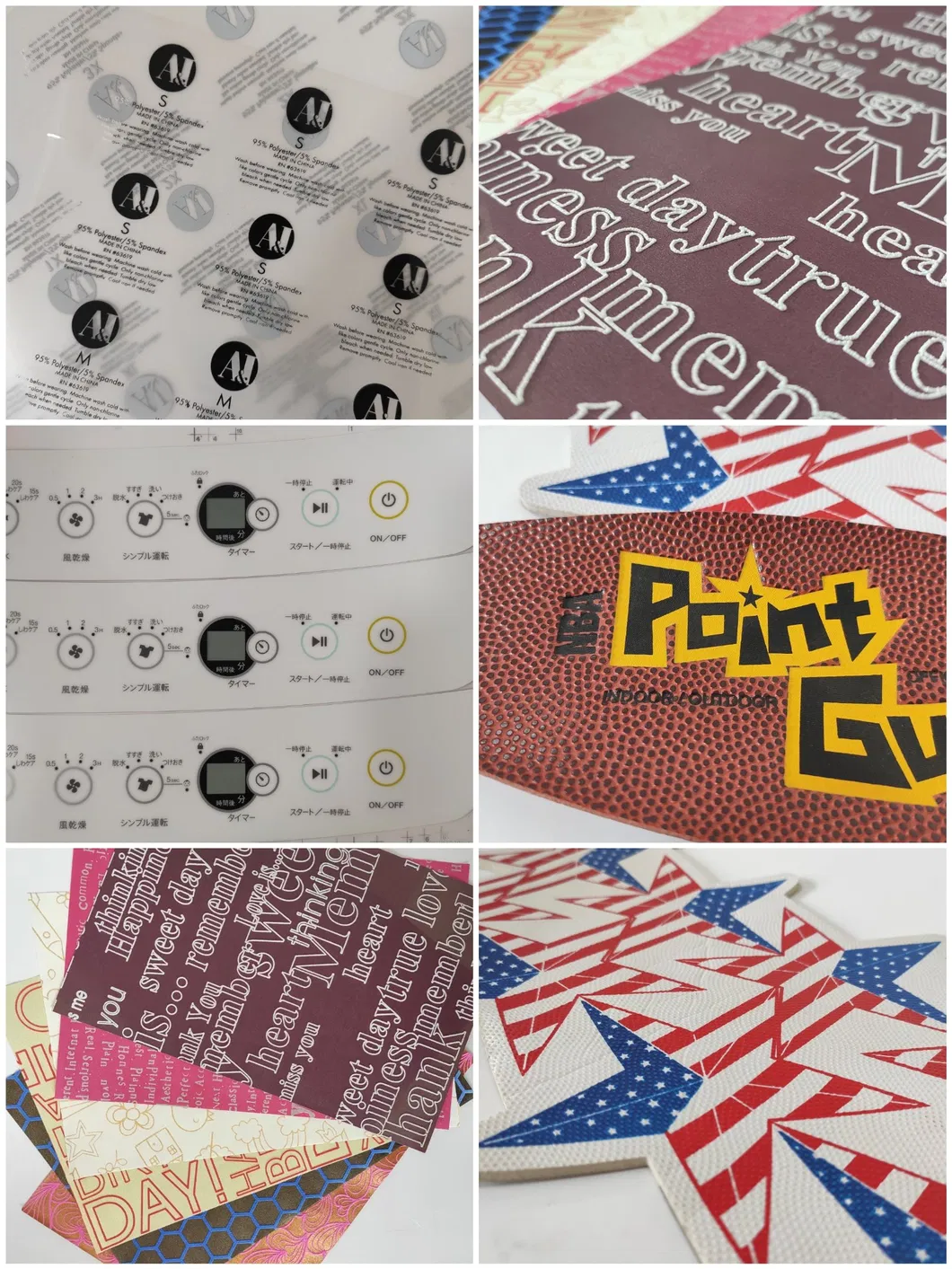

Print sample details
HY-Z69 Automatic Heat Transfer Paper Screen Printing Machine for Label Packing Printer Silk Screen Printer Machinery

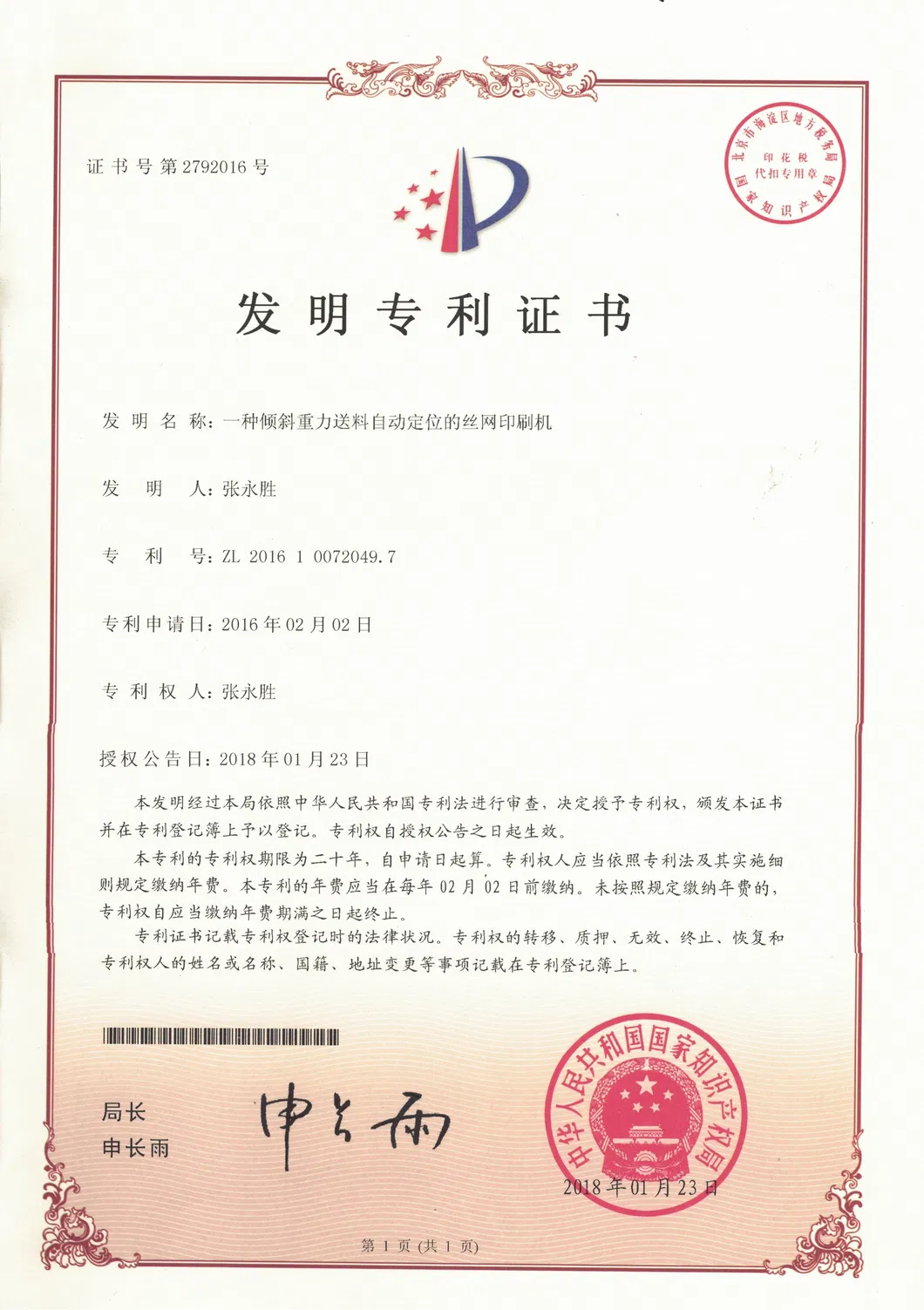

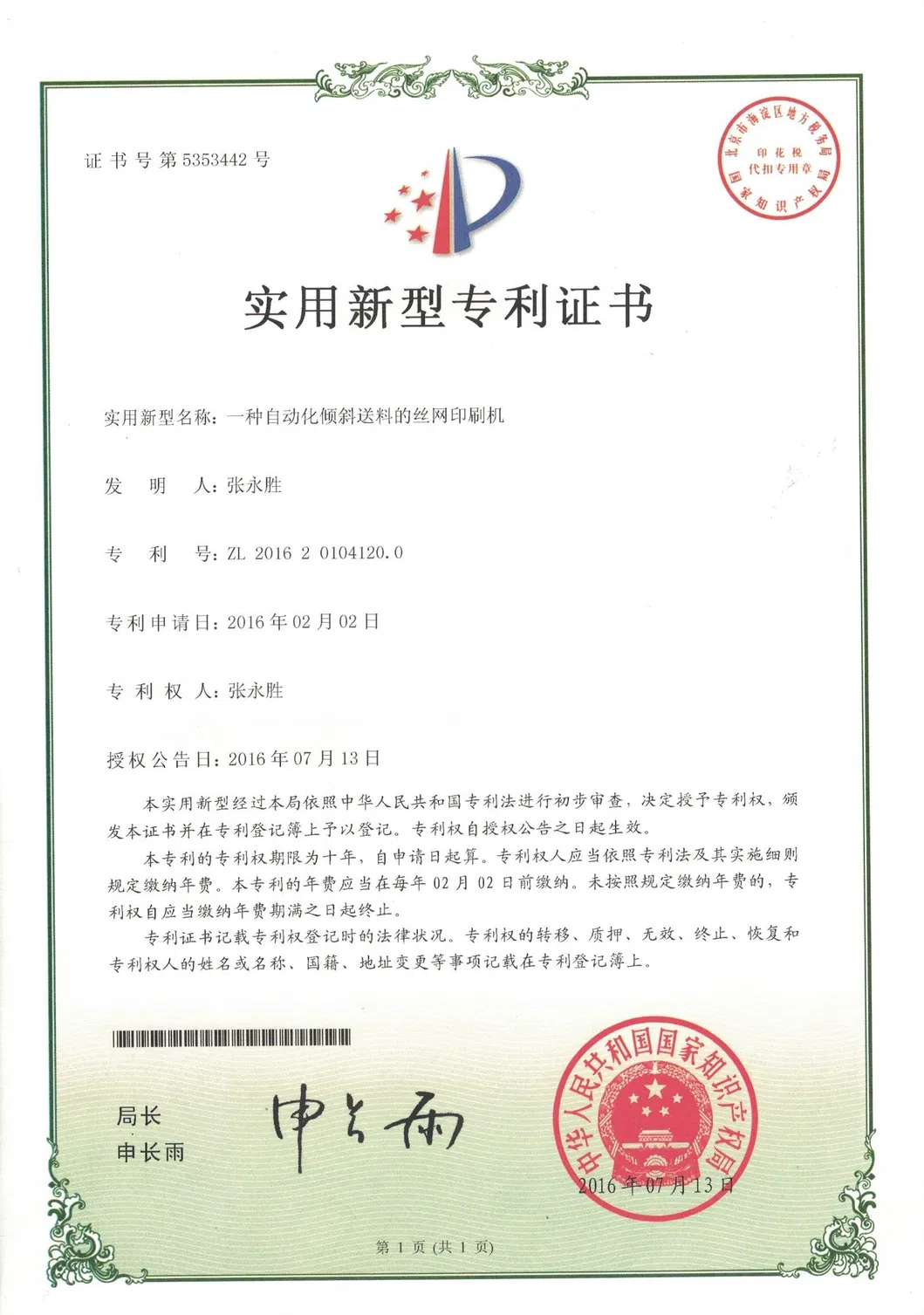

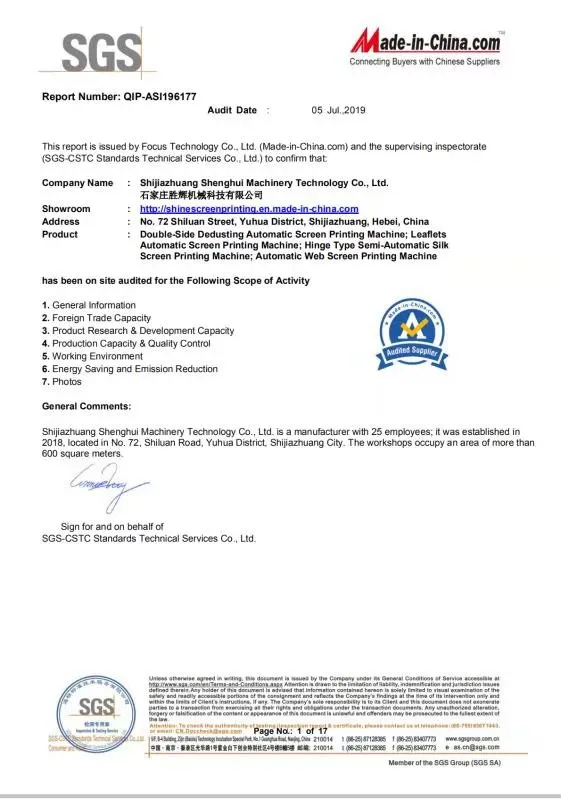

Certificate

HY-Z69 Automatic Heat Transfer Paper Screen Printing Machine for Label Packing Printer Silk Screen Printer Machinery

FAQ

Q: How to get a quotation?
A: Please send us an inquiry directly. We need to get specific details, such as material, size, color, thickness, quantity, etc.

Q: Are you a factory or trading company?
A: We are a professional manufacturing factory specialize in printing equipment . set research, design, production, development, sales in one, to "practical, innovative" for the purpose, to "integrity, pragmatic" as the principle, with exquisite design and perfect technical support to serve the majority of customers.

About us

Shijiazhuang shenghui machinery technology co., ltd. is a company specializing in the production and sales of automatic and semi-automatic plane screen printing machines.The technicians include experienced engineers who have been engaged in the design and production of screen printing machines since the early 1990s, as well as highly educated new technical personnel who have just left school.Out of a commitment to research and innovation of science and technology route.

Now the company has more than 20 screen printing machine invention and utility model patents, and there are new patents in the application.Our self-developed automaton not only realizes automatic feeding and material taking, but also can automatically complete precise Counterpoint printing by the machine, which can be comparable with expensive CCD machine. The new concept of automatic screen printing machine fills the technical gap and solves the problem of shortage of skilled workers.Since entering the market, it has triggered a wave of upgrading of printing equipment, which is favored by many new and old customers.

Now the company's products have been served in Thailand, Vietnam, India and other customers, in 2019 the company will bring their own more mature products and services, screen printing enterprises for more countries to make beautiful products.
