Membrane Switches IMD IML FPC RFID Automatic Screen Printing Machine
Machine Description:
LTA-3040 automatic roll to roll silk screen printing machine is designed to print on film material in roll, such as PET, PVC, PE, PV, PP film.

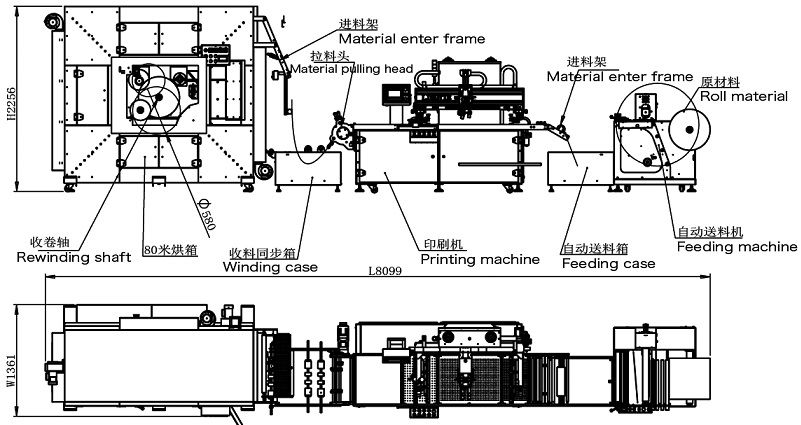

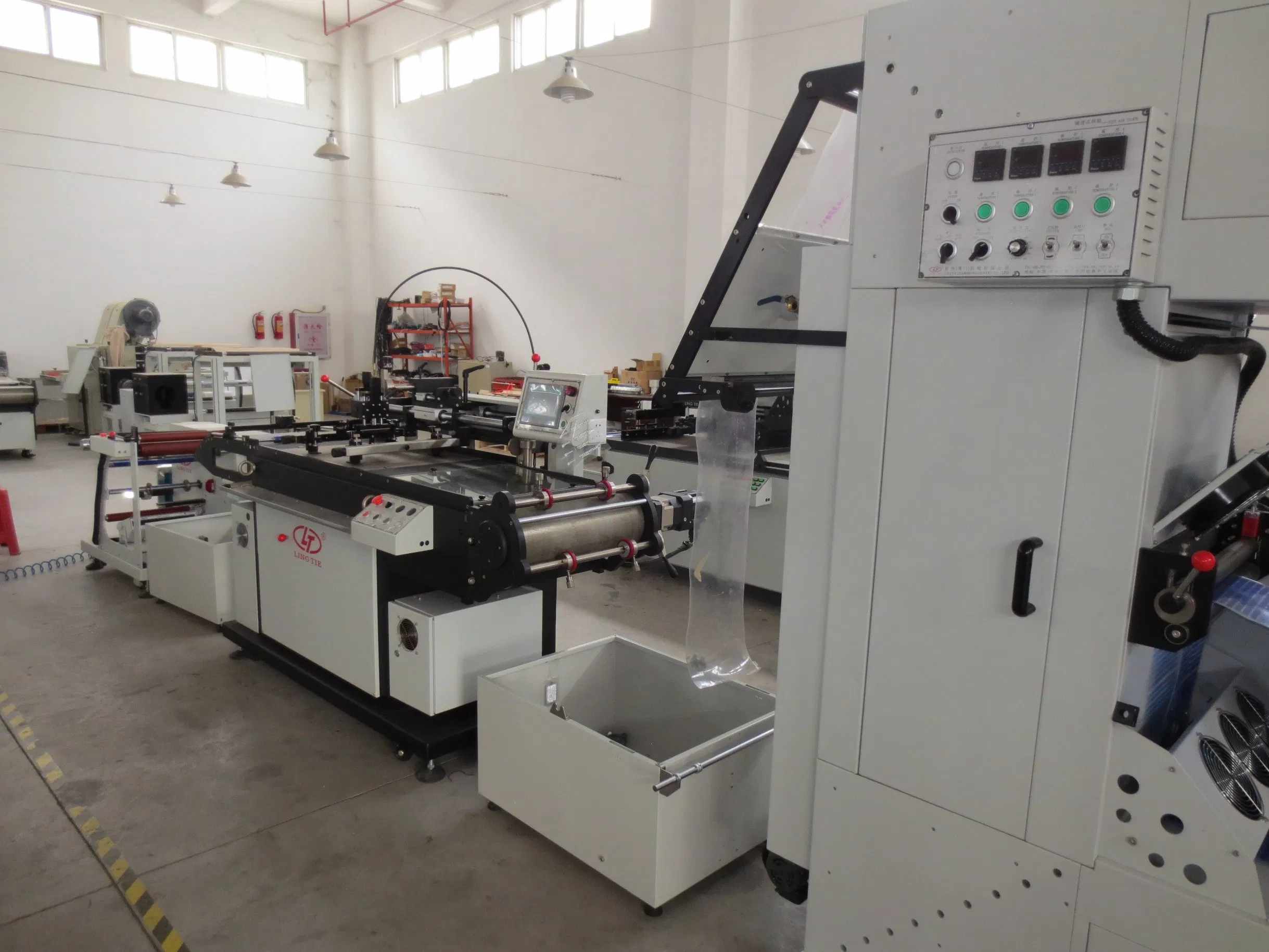

This automatic screen printing line is composed of a feeding machine, a printing machine and a hot air dryer.
The feeding machine has dust removal rollers, it is able to alarm when the roll material run out.
The printing machine table has vaccum to fix PET film in position to ensure printing accuracy. It is equipped with three photocell sensors for automatic registration.
The hot air dryer has 30M, 60M and 80M length pass for option. It is able to cool and wind cured film into a roll after being dried.

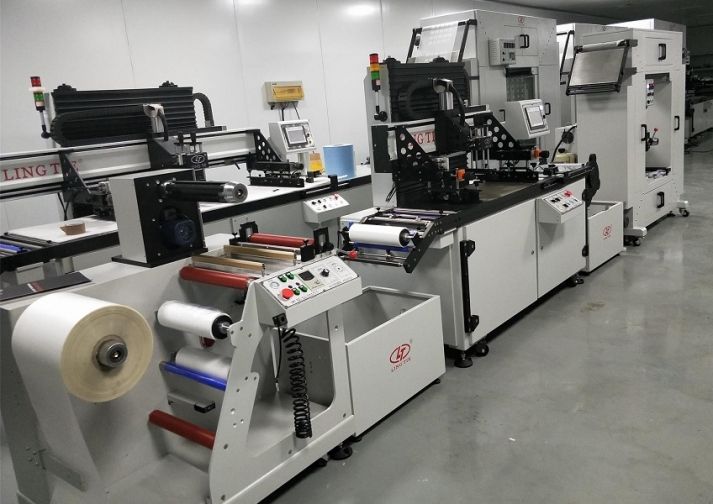

Automatic roll to roll silk screen printing machine includes a feeder, a screen printing unit and a hot air dryer.
Application: RFID, heat transfer films, labels and stickers, membrane switches, graphic overlay, IMD, IML, FPC, ceramic decals, motorcycle helmet decals, nameplate and non-woven fabrics, etc.
Machine Parameters:
| Model | LTA-3040 | LTA-5060 | LTA-6080 | |||||
| Max. Printing Size | 300x400mm | 500x600mm | 600x800mm | |||||
| Printing Speed | 0~5000 print/hr. | 0~2500 print/hr. | 0~2500 print/hr. | |||||
| Max. Screen Frame Size | 600x800mm | 800x1000mm | 900x1200mm | |||||
| Frame Adjusting Variable | 60mm | 60mm | 60mm | |||||
| Max. Substrate Width | 320mm | 520mm | 620mm | |||||
| Registration Accuracy | ±0.01mm | ±0.01mm | ±0.01mm | |||||
| Air Source | 0.4~0.6mpa | 0.4~0.6mpa | 0.4~0.6mpa | |||||
| Power | 220V, 3KW, 15A | 220V, 3KW, 15A | 220V, 3KW, 15A | |||||
| Printing Material Thickness | 0.02~0.5mm | 0.02~0.5mm | 0.02~0.5mm | |||||
| Weight | 600kgs | 700kgs | 950kgs | |||||
| Overall Dimensions (L*W*H) | 2530x890x1650mm | 2850x1160x1650mm | 2950x1160x1650mm | |||||
Machine Photos:

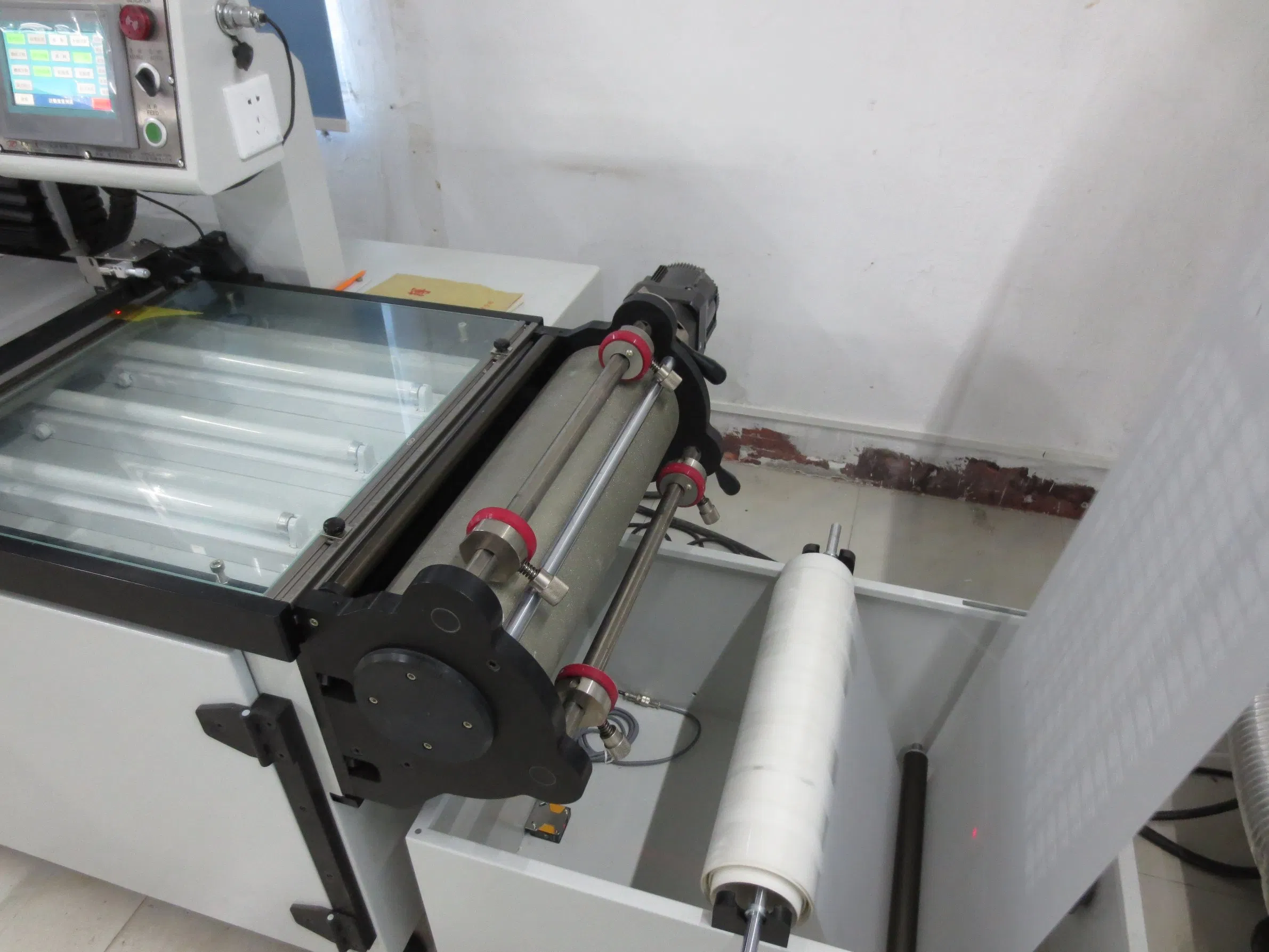

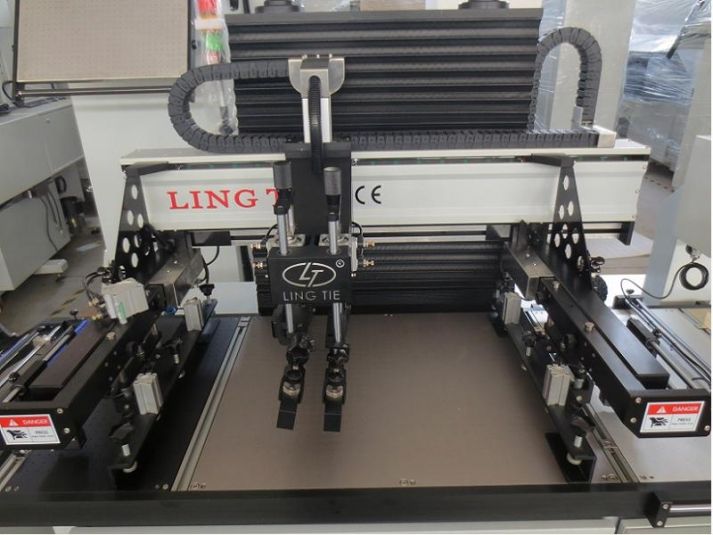

Vacuum table: fix the PET film during printing process. Automatic register system for screen alignment.

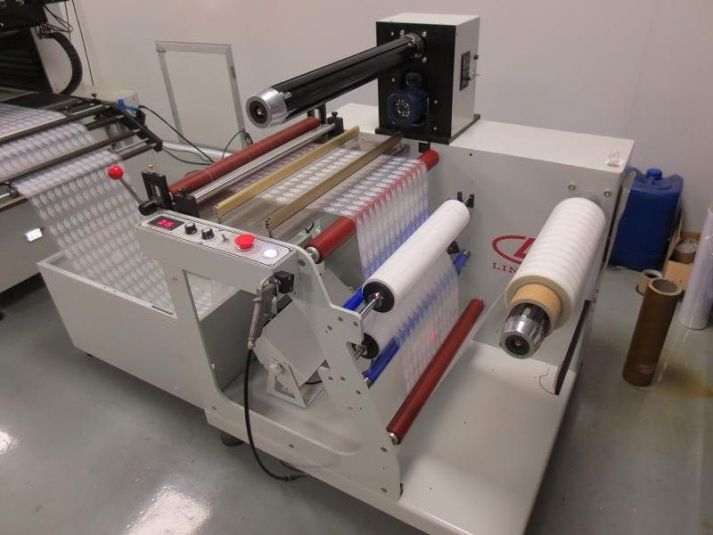

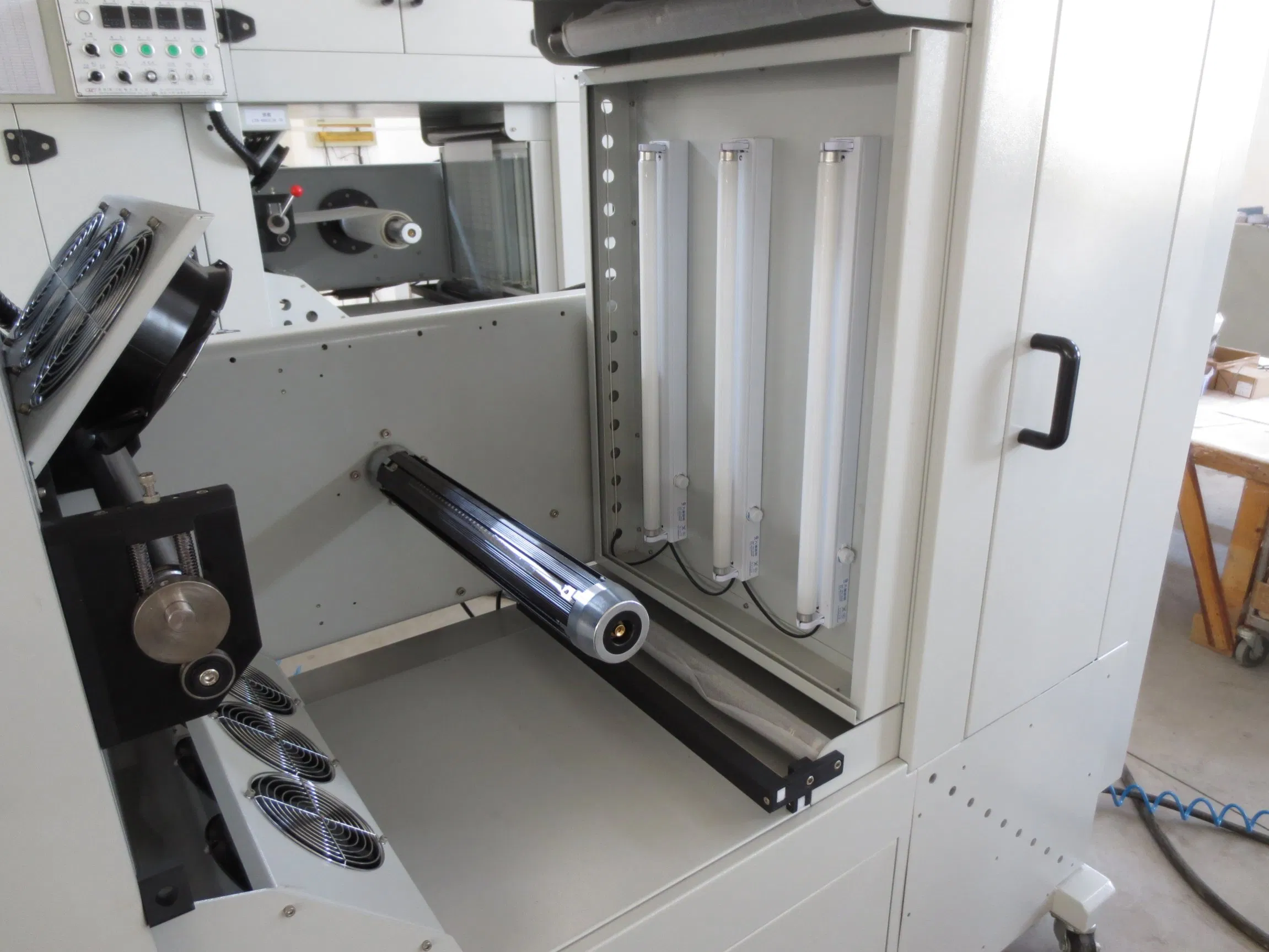

Feeder: dust removing, protect film removing, electrostatic eliminating,etc.

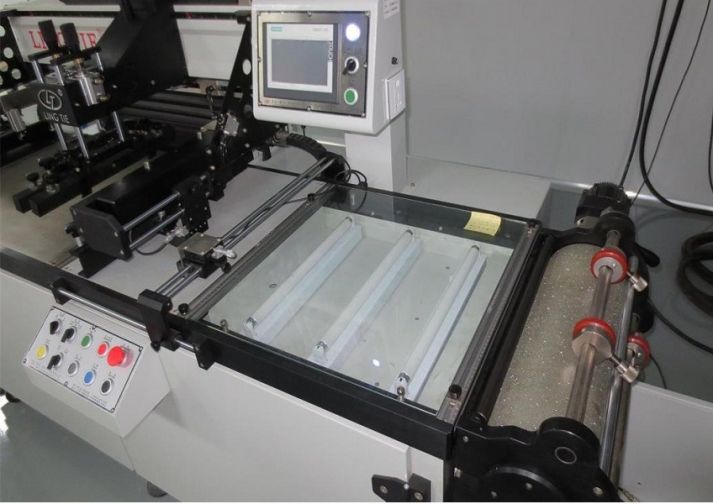

Inspection station: Timely inspection of printing quality to avoid waste.

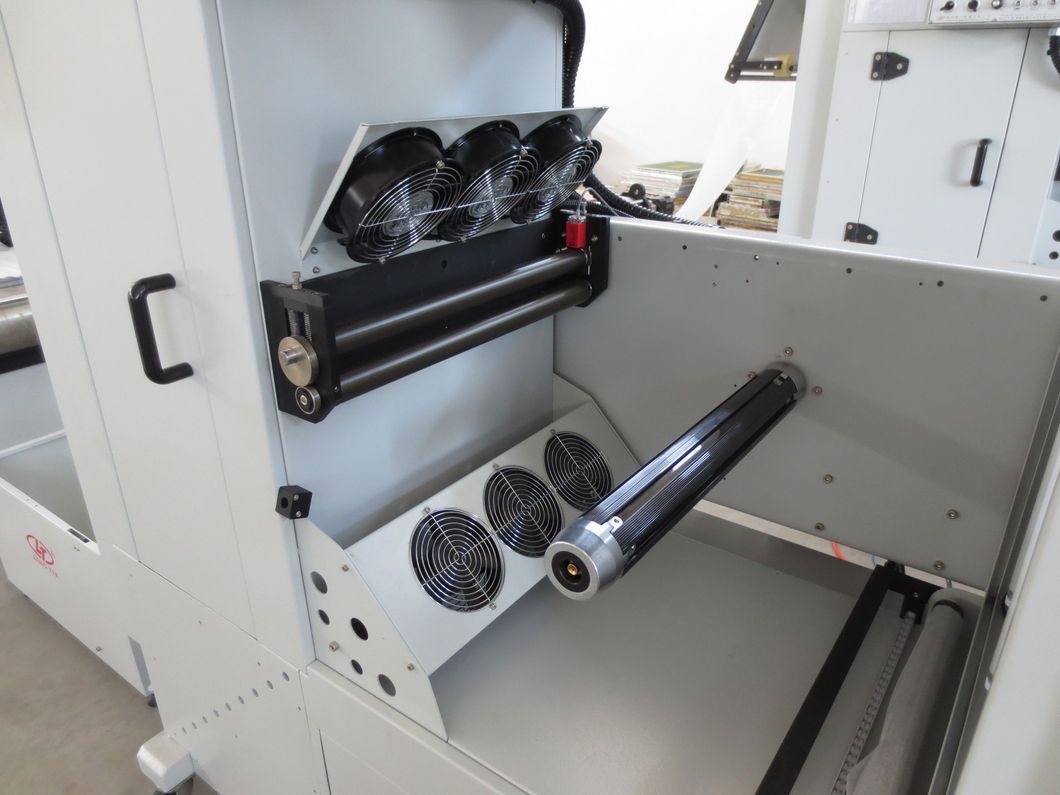

Rewinding Shaft: After printing, through the tunnel oven drying, automatic rewinding at last.
Printed Samples:
