Product Description

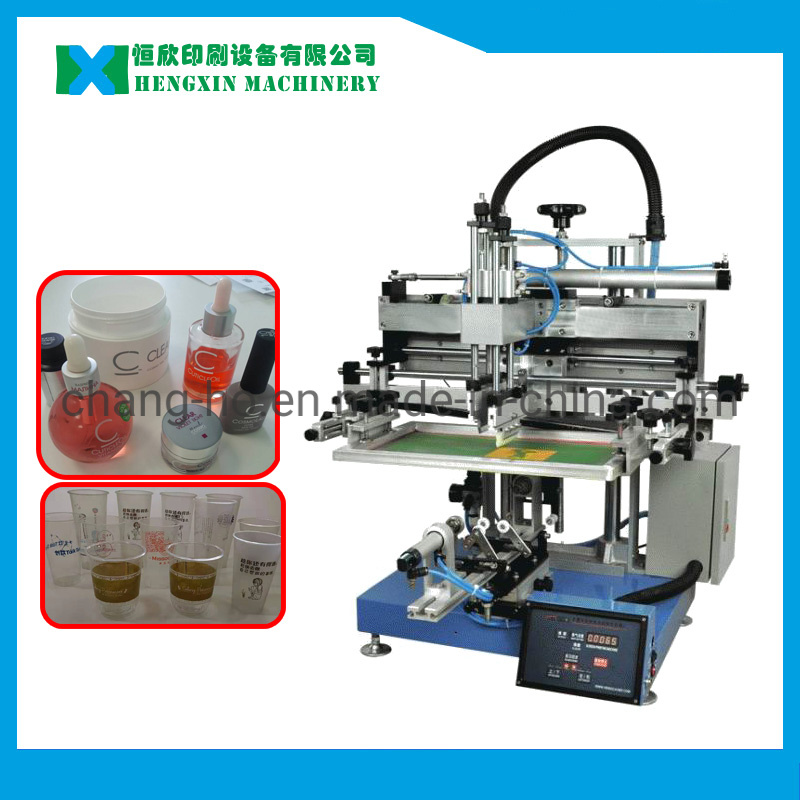

Tabletop Round Screen Printer for Silicon Wristband
Technical parameter:
Machine summary:

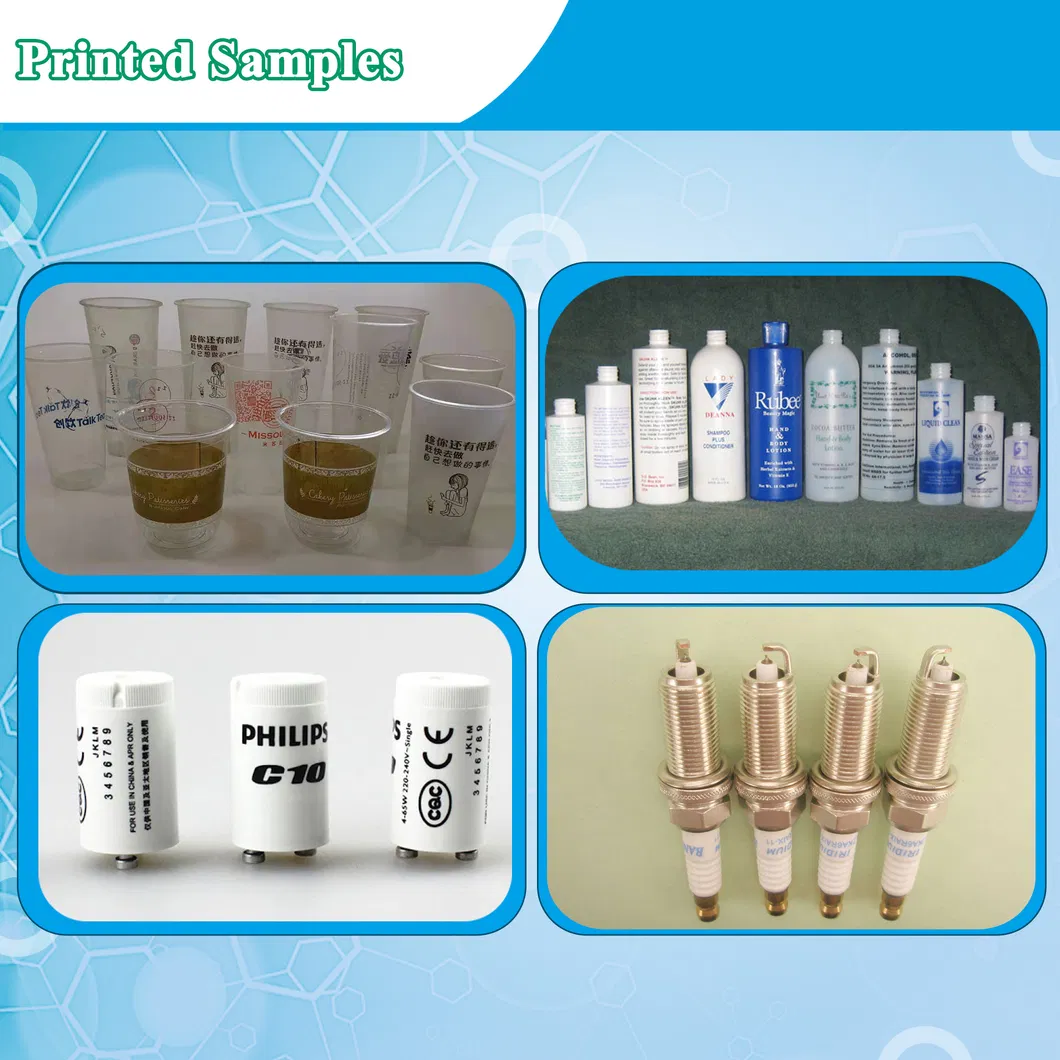

The Mini cylindrical screen printing machine is adopted imported (Taiwan) pneumatic parts with quick speed, stable quality, lower noise, precise over-printing, and 350mm stroke. It is suitable for printing the surface of round products with 100mm diameter, such as cosmetic products, chemical container, food packing cans and other related cylindrical products. As the volume is small, the application field is wide, the price is favorable, and the machine is the most popular machine in the market.It is the best favorable machine.
Machine function:
1. Micro-computer controlling, high degree of automation, easy and convenient operation;
2. Auto 4-digit counter built-in;
3. it can print round and cone products;
4. In order to meet kinds of printing requirements, the printing stroke and speed can be adjusted;
5. the worktable can be fine-tuning by up and down, or left and right, and flat oscillate angle, high precise printing, conveniently and quickly to adjust;
6. pneumatic printing controlling with adjustable pressure system;
7. stable and reliable function micro-computer controlling;
8. unaided printing and ink reclaiming speed controlled;
9. with huffing function, can print soft products;

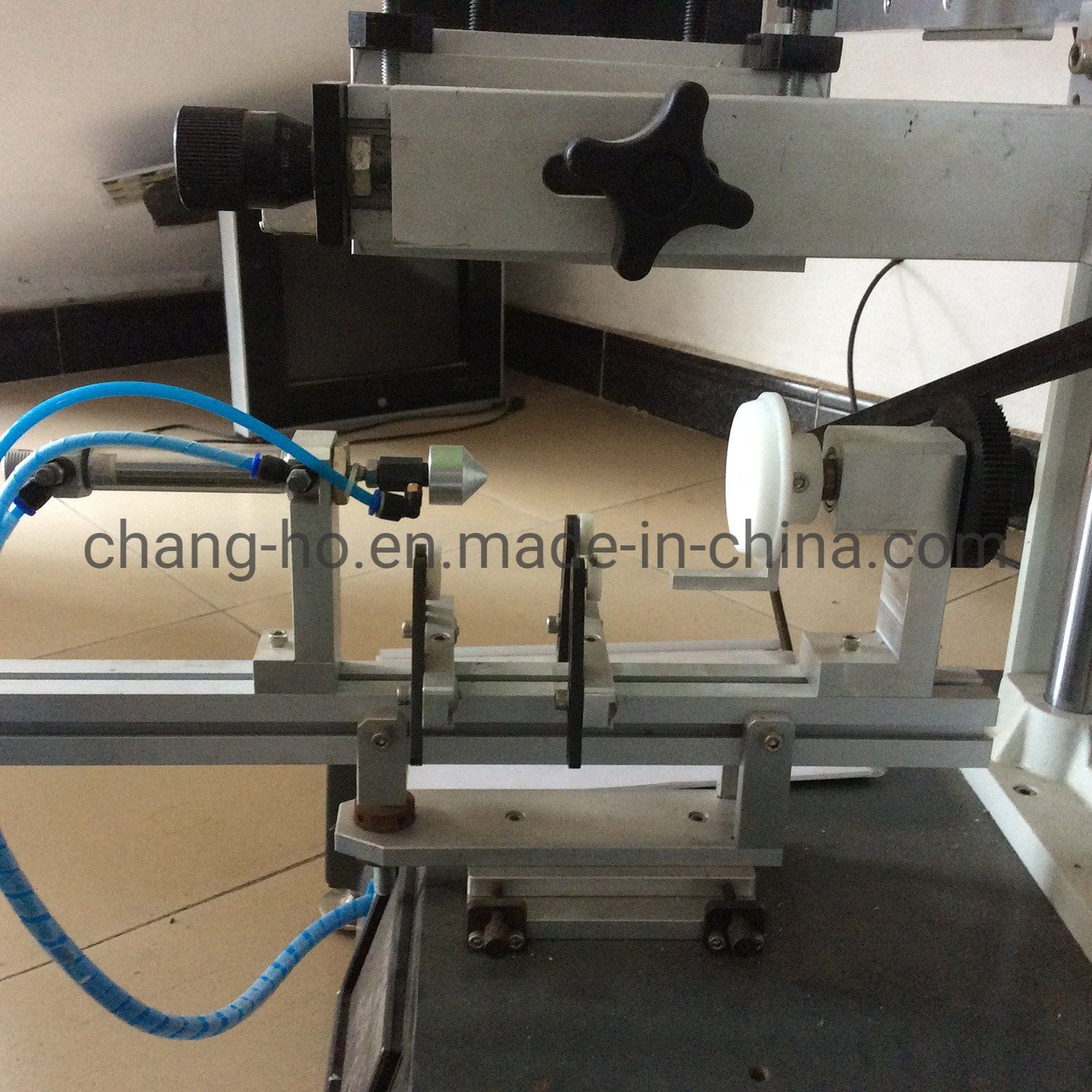

10. separate special mould for round and cone products;
Technical parameter:
| Model | HX-2030Q |
| Print diameter scope | 5 ~ 150mm |
| Whoe print diameter | 95mm |
| Max length of work piece | 250mm |
| Machine speed | 600 - 800 pcs/hr |
| Action mode | Automatic | semi-automatic | Manual |
| Start method | panle | pedal |
| Vertical driven | pneumatic |
| Transverse driven | pneumatic |
| Vertical stroke | 125mm |
| Transverse stroke | 350mm |
| Power | 110/220V, single phase |
| Air | 5 - 7 Bar |
| Machine size | 68*78*95cm |
| Net weight | 125kg |
| Packing size | 70*90*112cm |
| Gross weight | 150kg |
Machine summary:
The Mini cylindrical screen printing machine is adopted imported (Taiwan) pneumatic parts with quick speed, stable quality, lower noise, precise over-printing, and 350mm stroke. It is suitable for printing the surface of round products with 100mm diameter, such as cosmetic products, chemical container, food packing cans and other related cylindrical products. As the volume is small, the application field is wide, the price is favorable, and the machine is the most popular machine in the market.It is the best favorable machine.
Machine function:
1. Micro-computer controlling, high degree of automation, easy and convenient operation;
2. Auto 4-digit counter built-in;
3. it can print round and cone products;
4. In order to meet kinds of printing requirements, the printing stroke and speed can be adjusted;
5. the worktable can be fine-tuning by up and down, or left and right, and flat oscillate angle, high precise printing, conveniently and quickly to adjust;
6. pneumatic printing controlling with adjustable pressure system;
7. stable and reliable function micro-computer controlling;
8. unaided printing and ink reclaiming speed controlled;
9. with huffing function, can print soft products;
10. separate special mould for round and cone products;
