Zt-4s-2030-Yy Four Position Semi Automatic Servo Rotary Screen Tea Bag Outer Packaging Printing Machine

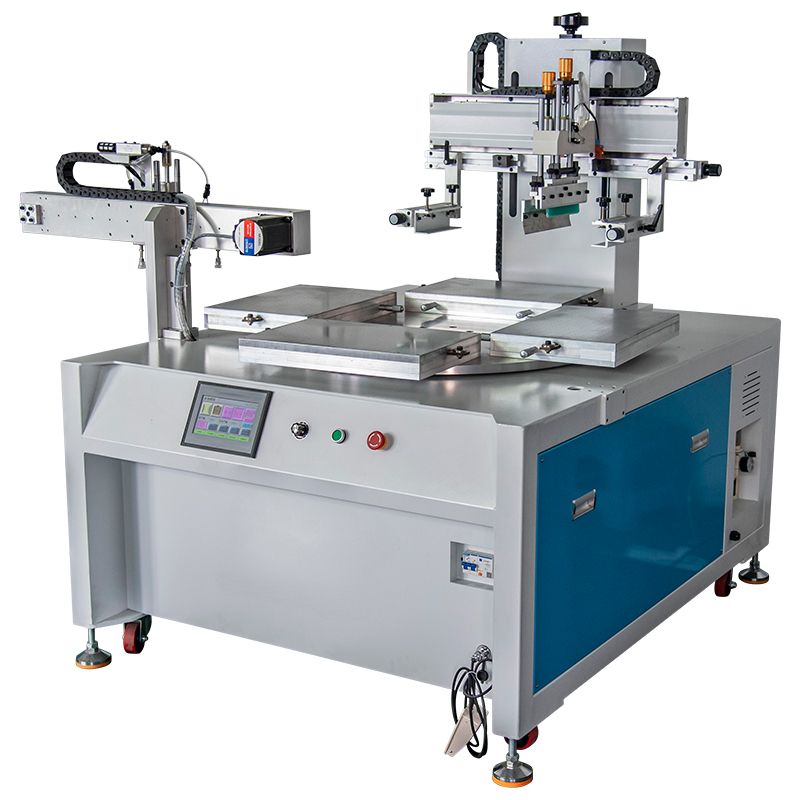

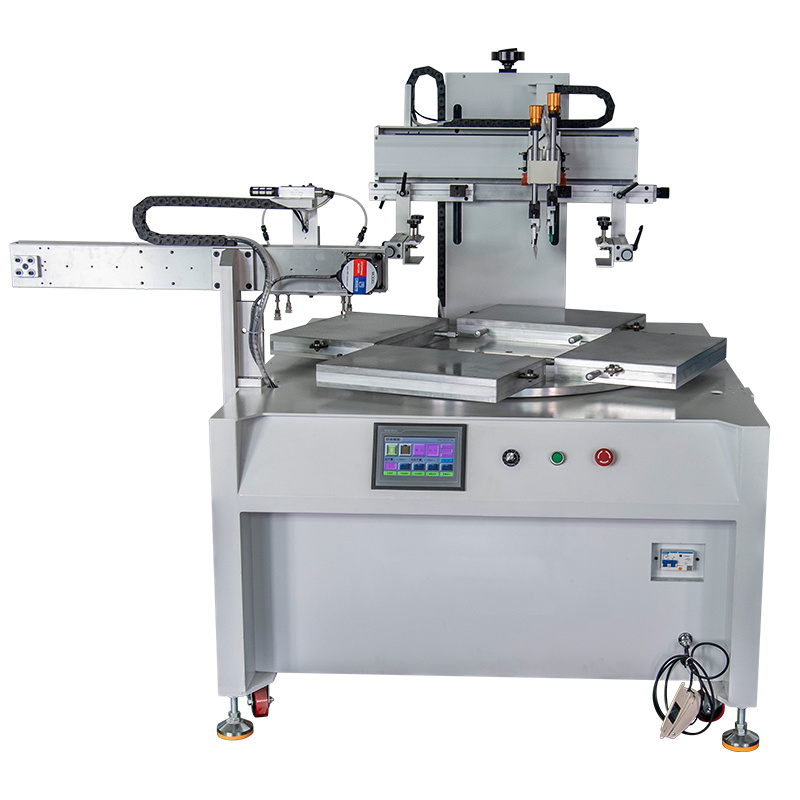

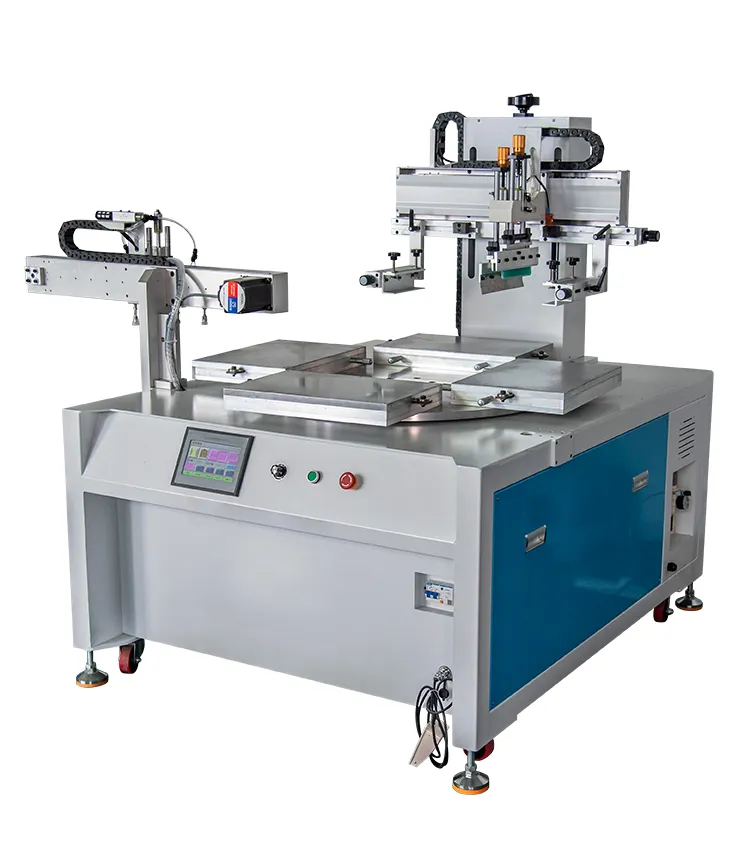

ZT-4S-2030-YY four station rotary screen printing machine is a universal flat screen printing machine. It can be widely used in daily necessities, toys, electronics, electrical appliances, plastics, leather, metal, glass, light industry and food packaging and other industries.
1, This precision flat screen printing machine has the following characteristics:

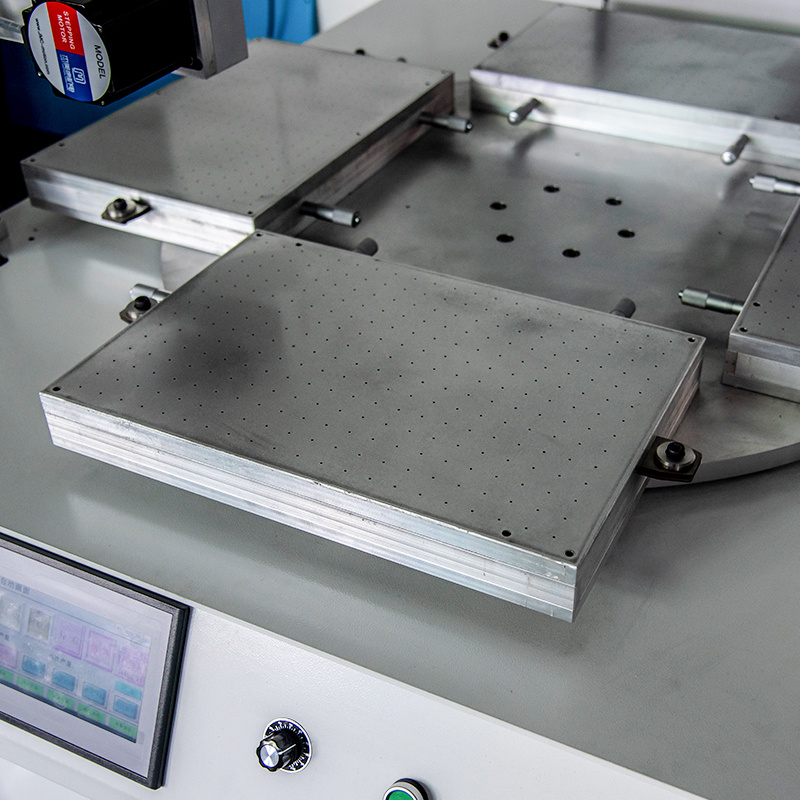

1. High speed turntable and high precision screen printing machine is composed of Taiwan mechanical cam splitter and high-strength rotating platform. Due to the strong stability of the divider, there is no vibration during high-speed rotation, and the indexing is accurate. It can carry out multi-color overprint without displacement during printing. The multi station design can take and place workpieces at will while printing, reduce the time of stopping the equipment loading, and the fastest speed can reach 1500 times / h. It is the first choice for mass screen printing, especially suitable for lens, button, PVC film and card products. The worktable can be fine tuned in the aspects of left and right, front and rear, and angle, and the positioning is accurate and stable.
2. Automatic start function makes it more convenient to remove and clean the mesh frame

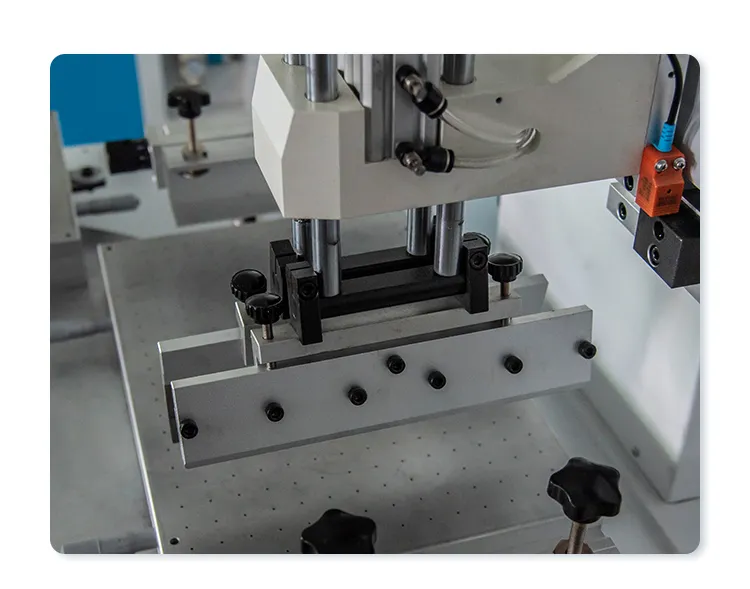

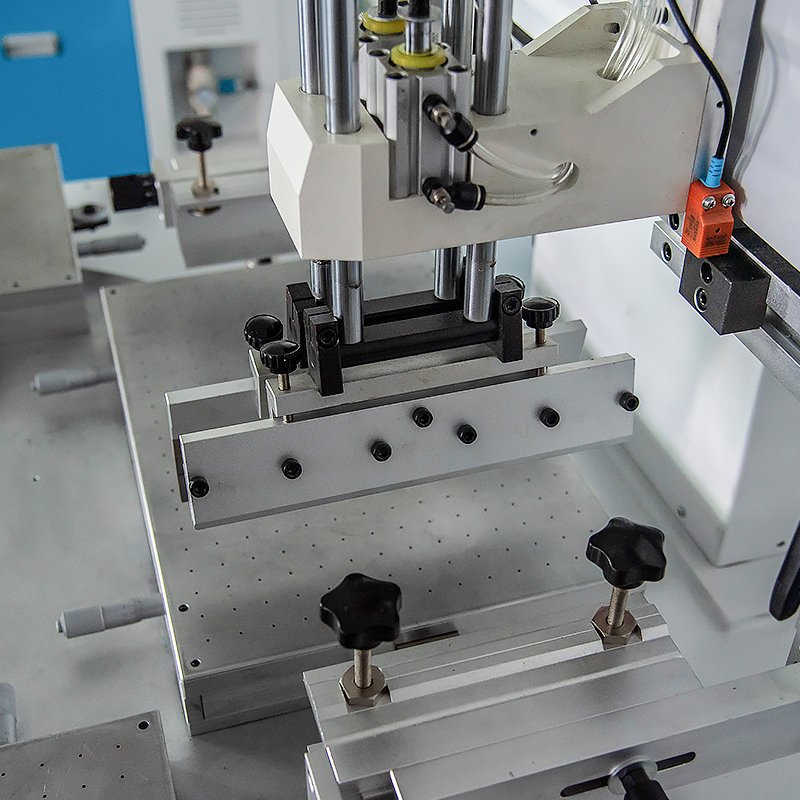

3. Blade left and right movement adopts Taiwan (Shangyin) linear guide structure, which is light and stable, and improves printing quality.
4. Taiwan (Swift) PLC frequency converter controls the operation of the whole machine. The operation data is more accurate and obvious
5. Automatic screen function, higher printing quality. Screen position adjustment.

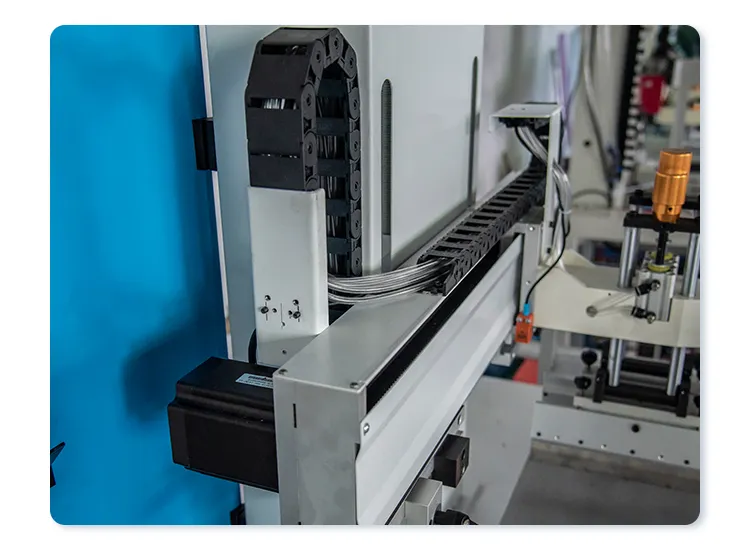

6. Blade left and right stepping Taiwan Wanxin motor and synchronous belt drive, more stable operation.

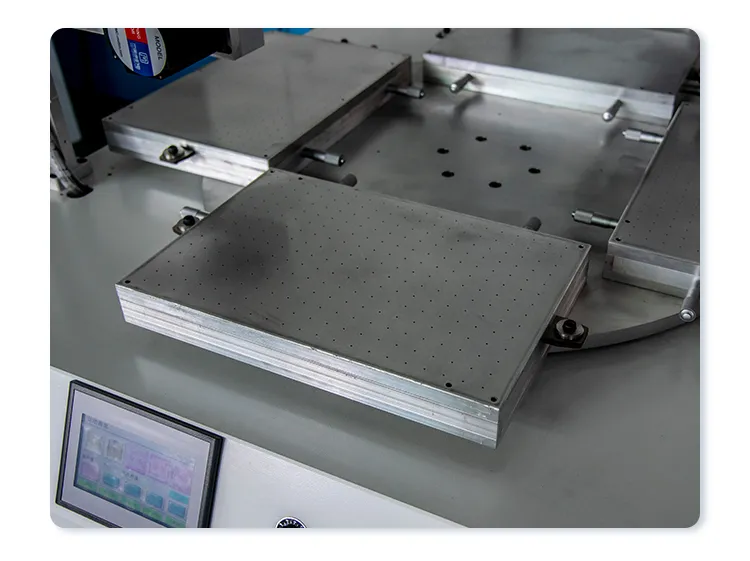

7. The turntable is controlled by cam splitter. The precision of the table is as high as 0.1 mm
8. Stable performance, the whole machine is controlled by the world's advanced microcomputer controller.
9. According to the needs of customers, preset two function programs, single cycle printing and full automatic printing.

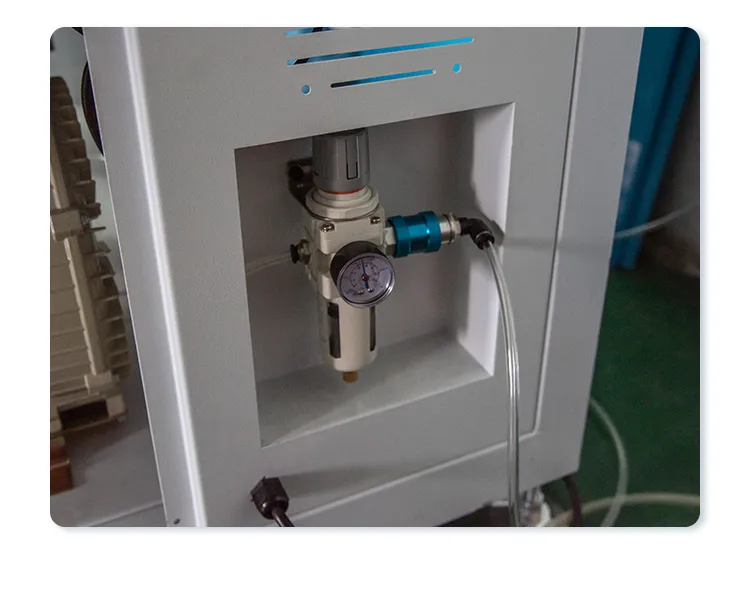

10. It adopts the latest pneumatic components from Taiwan Adec and Japan SMC company, with smooth and strong power and durable.

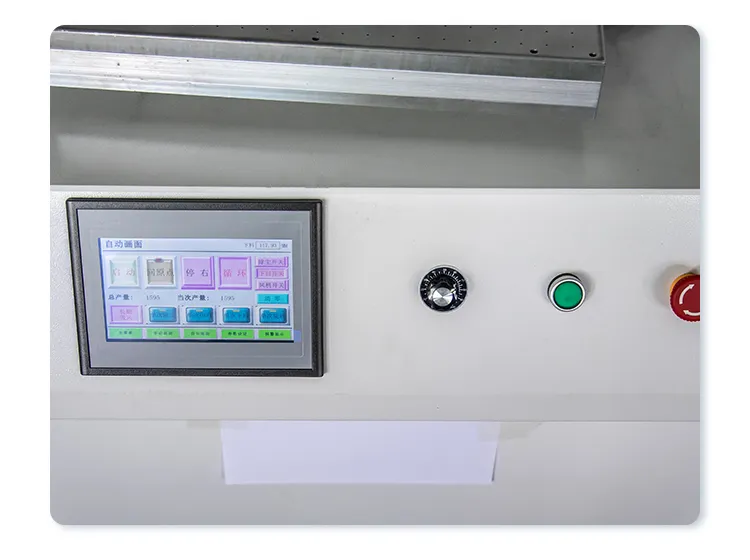

11. The operation panel adopts the sensitive touch system of Taiwan's vellon touch screen, which can directly select the screen printing function, with quick response and convenient use.
Performance introduction
2, Technical parameters:
1. Printing color: 1 color (multi color)
2. Single cycle
3. Continuous exercise
4. Item count is OK
Adjustable time delay (5)
6. Printing speed: 1500 times / h
7. The maximum mesh frame is 400mmx600mm
8. The maximum table area is 200mmX300mm
9. The maximum printing area is 180mmx250mm
10. Maximum height of workpiece: 80mm
11. The lifting stroke of mesh frame is 200 mm
12. The left and right stroke of scraper is 420mm
13. The diameter of turntable is Φ 600mm
14. X stroke of manipulator is 800mm
15. Y stroke of manipulator is 300 mm
16. Manipulator speed 400mm / sec
17. Capacity (idling) 1500PCS / h
18. The up and down stroke of scraper and oil scraper is 25mm
19. Drive Wanxin motor
20. Control system PLC
21. Control voltage: DC24 V
22. Power supply voltage: 220 VAC 50 / 60 Hz
23. Connected load: 2.2kw
24. Pneumatic supply 4-6bar
25. Air consumption / cycle: 2.1l
26. Weight: about 520kg
3, Safety performance of machine operation:
ZT-4S-2030-YY four station rotary screen printing machine is in line with the latest engineering style. If it is used as required, it is absolutely reliable.
The machine is equipped with an emergency switch: press the emergency switch in case of emergency, and the machine will be cut off immediately. Return to the starting position, when things are handled, turn the emergency switch, you can start safely and return to normal.
4. Precautions:
(1) when the machine needs to be moved or repaired, the power supply and air source must be cut off.
(2) when adjusting or cleaning the oil scraper, please follow the steps.
(3) enhance the awareness of fire prevention and provide fire-fighting equipment.
